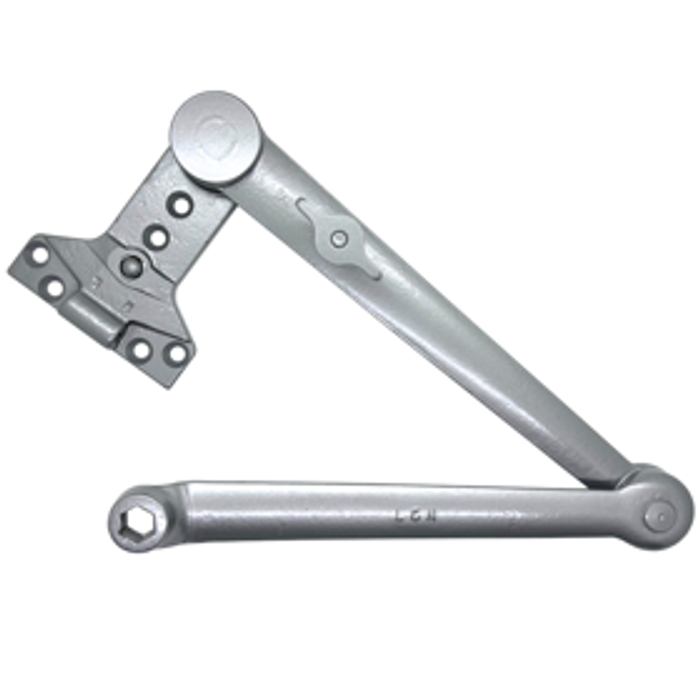

LCN 4040XP-3049SCNS Hold Open Spring Cush Arm

LCN 4040XP-3049SCNS Hold Open Spring Cushion Arm with Forged Steel Construction

(No reviews yet) Write a Review

Model: 4040XP-3049SCNS-AL
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$461.00
$304.22
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 4040XP Series Hold Open Spring Cushion Arm with Forged Steel Construction

Professional Door Closer Replacement Component

The LCN 4040XP Series Hold Open Spring Cushion Arm delivers heavy-duty performance for demanding commercial applications. This non-handed replacement component features solid forged steel main arm and forearm construction with an integrated spring-loaded stop in the soffit shoe. The handle-controlled hold open function provides convenient operation while the forged steel construction ensures durability in potentially abusive applications.

Professional Features & Benefits

  • Heavy-Duty Construction: Solid forged steel main arm and forearm provide exceptional durability for commercial applications and potentially abusive environments.
  • Spring-Loaded Stop Design: Integrated spring-loaded stop in the soffit shoe delivers smooth cushioned operation and enhanced component protection.
  • Handle-Controlled Hold Open: Convenient handle operation allows users to easily control the hold open function for improved accessibility and traffic flow.
  • Non-Handed Configuration: Universal design eliminates handing concerns for simplified inventory management and installation flexibility.
  • 4040XP Series Compatibility: Engineered specifically for LCN 4040XP Series door closers ensuring proper fit and optimal performance.
  • Parallel Arm Mounting: Designed for parallel arm mounting configurations providing versatile installation options.
  • ADA Compliant Design: Meets ADA compliance requirements for accessible door operation in commercial facilities.

Technical Specifications

  • ADA Compliant: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Mounting Method: Parallel Arm
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Model: 4040XP
  • Product Subgroup: Parts and Accessories
  • Product Type: Door Closer Parts and Accessories
  • Series: 4040XP Series
  • Subcategory: Parts and Accessories

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose LCN Quality?

LCN door closer components deliver professional-grade reliability with solid forged steel construction engineered for potentially abusive applications. The spring-loaded cushioning system and ADA compliant design ensure dependable performance in demanding commercial environments where consistent door control is essential.

Manufacturer Resources

LCN Full Line Catalog

Product Specs

Series:
4040XP Series
Subcategory:
Parts and Accessories
Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Product Type:
Door Closer Parts and Accessories
Commercial/Residential:
Commercial
ADA Compliant:
Yes
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Model:
4040XP
Mounting Method:
Parallel Arm
Product Category:
Door Controls
Department:
Door Hardware

LCN 4040XP-3049SCNS-AL – Frequently Asked Questions

1) Does the LCN 4040XP 3049SCNS hold open cushion arm need to be ordered left or right hand?
No handing to specify. The 3049SCNS hold open spring cushion arm is non-handed, so one part covers both left and right hand openings. That is useful if you stock spares across a building and do not want two part numbers on the shelf.
2) Will this LCN cushion arm work on a regular arm or top jamb mounted closer?
No. The 3049SCNS is built for parallel arm mounting, where the closer body sits on the pull side and the arm runs back along the face of the door. If your 4040XP is mounted regular arm on the pull side or top jamb on the frame face, this arm is the wrong geometry and you need the arm matched to that mounting.
3) What does the spring cushion arm actually do that a standard parallel arm does not?
It takes the abuse. The 3049SCNS carries a spring loaded stop built into the soffit shoe, so the arm itself cushions the door at the end of the opening swing instead of letting it slam into an overhead stop or the wall. Main arm and forearm are solid forged steel, which is why this arm gets specified on doors in high traffic or where users throw them open. Add the handle controlled hold open and the door stays put where you set it.
4) Can I use this arm to convert my existing LCN 4040XP closer to hold open?
Yes, that is exactly what it is for. The 3049SCNS is a replacement arm for LCN 4040XP Series closers, and it brings the hold open function with it. Swapping the standard parallel arm for this one gives you handle controlled hold open plus the cushioned stop without changing the closer body, provided the closer is already set up for parallel arm mounting.
5) Is a hold open arm allowed on a fire rated door?
Use it only on non-rated openings. A mechanical hold open arm keeps the door propped, which is the opposite of what a fire door has to do. Fire rated openings need a closer that releases on alarm, typically an electromagnetic hold open or a fusible link setup, not a handle controlled arm like the 3049SCNS.
6) Does this hold open arm affect ADA compliance on the door?
The 3049SCNS is an ADA compliant component, so using it on a 4040XP does not put the opening outside accessible door requirements. Hold open also helps traffic flow at accessible entrances. Note that ADA opening force still comes down to how the closer body is sized and adjusted, not the arm.
7) Is this LCN arm suitable for a high abuse opening like a school corridor or warehouse door?
That is its intended use. The forged steel main arm and forearm and the cushioned soffit shoe are specified for potentially abusive applications, and the part is a commercial grade component. Schools, healthcare corridors, retail, industrial and warehouse doors, and multi tenant residential entries all fall within what it is built for.
8) Does the 3049SCNS come with the door closer, or is it the arm only?
Arm only. This is a replacement component, the hold open spring cushion arm assembly for a 4040XP. You need the 4040XP closer body separately if you are doing a new install rather than retrofitting or repairing an existing one.
9) What finish does the LCN 4040XP 3049SCNS hold open arm come in?
Aluminum, finish code 689, which is the standard LCN closer finish and matches the aluminum painted closer bodies and arms already on most commercial openings. It is the single finish offered on this arm.
