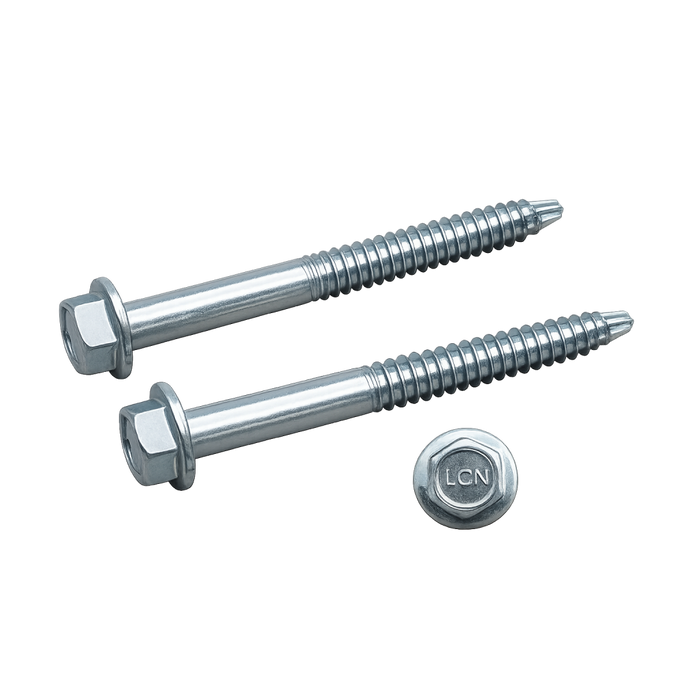

LCN 4110-TBSRT Grade 1 Thru Bolts with Self Reaming and Tapping Screw Pack

LCN 4110-TBSRT Grade 1 Thru Bolts with Self Reaming and Tapping Screw Pack

(No reviews yet) Write a Review

Model: 4110-TBSRT 689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$36.00
$34.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 4110 Series Grade 1 Thru Bolts with Self Reaming and Tapping Screw Pack

Professional Installation Hardware for Door Control Systems

The LCN 4110 Series Grade 1 Thru Bolts with Self Reaming and Tapping Screw Pack provides essential mounting hardware for professional door control installations. This Grade 1 rated hardware pack includes specialized thru bolts with integrated self-reaming and tapping capabilities, designed specifically for the 4110 Series door control systems. The self-reaming and tapping design streamlines installation by eliminating the need for pre-drilling and tapping operations, ensuring secure mounting in commercial applications.

Professional Features & Benefits

  • Grade 1 Construction: Professional-grade thru bolts meet BHMA Grade 1 standards for heavy-duty commercial door control applications.
  • Self-Reaming Design: Integrated reaming capability eliminates pre-drilling requirements for faster, more efficient installation.
  • Self-Tapping Threads: Built-in tapping feature creates secure threaded connections without separate tapping operations.
  • 4110 Series Compatibility: Engineered specifically for LCN 4110 Series door control systems for guaranteed fit and performance.
  • Complete Hardware Pack: Includes all necessary thru bolts and screws for complete door control mounting requirements.
  • ADA Compliant Installation: Supports ADA-compliant door control installations when used with compatible 4110 Series devices.
  • Commercial-Grade Reliability: Heavy-duty construction designed for demanding commercial and institutional applications.

Technical Specifications

  • ADA Compliant: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Model: 4110-TBSRT
  • Product Subgroup: Parts and Accessories
  • Product Type: Screw Pack
  • Series: 4110 Series
  • Subcategory: Parts and Accessories

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose LCN Quality?

LCN door control hardware delivers professional-grade reliability with Grade 1 construction rated for demanding commercial applications. The self-reaming and tapping design reduces installation time while ensuring secure mounting connections. Engineered for demanding commercial applications where dependable performance and ADA compliance are essential.

Manufacturer Resources

LCN Full Line Catalog

Product Specs

Series:
4110 Series
Subcategory:
Parts and Accessories
Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Product Type:
Screws
Commercial/Residential:
Commercial
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
4110-TBSRT
Product Category:
Door Controls
Department:
Door Hardware

LCN 4110-TBSRT 689 – Frequently Asked Questions

1) What is the LCN 4110-TBSRT screw pack actually used for?
It is the mounting hardware pack for LCN 4110 Series door closers: thru bolts plus self-reaming and self-tapping screws. The thru bolts pass through the door and clamp the closer or shoe from both faces, which is what you use on hollow metal or mineral-core doors that will not hold wood screws under closer load. The self-reaming/tapping screws cut their own threads, so no separate drill-and-tap step on metal doors or frames.
2) Do I need thru bolts, or will the standard screws that ship with the closer work?
Depends on the door. Standard sex-nut/screw mounting is fine on a solid door with adequate backing. Go to the 4110-TBSRT thru bolt pack when the door is hollow metal with thin skins, has no reinforcement at the closer location, or is in high-traffic service where screws pull out over time. Thru bolting spreads the closer's load across both faces instead of relying on the door skin alone.
3) Will the 4110-TBSRT thru bolt pack fit closers other than the LCN 4110?
It is sold as the 4110 Series pack and that is the fit we state. If you are mounting a different LCN closer family, order the thru bolt pack listed for that series rather than assuming this one carries over.
4) What finishes do the LCN 4110 thru bolts come in, and how do I match my closer?
Six: 689 aluminum, 690 statuary bronze, 691 light bronze, 693 gloss black, 695 dark bronze, and 696 brass. Pick the same number as the closer body so the exposed bolt heads on the pull side of the door don't stand out. 689 aluminum is the default on most painted LCN closers.
5) Do I have to order anything else to mount an LCN 4110 closer with this pack?
The pack covers the thru bolts and self-reaming/tapping screws for the closer mounting. What it does not include is the closer itself, the arm, or any drop plate or bracket your opening needs when the frame face or door top rail is too narrow for a standard template. Sort the mounting position out against the closer template first, then add the plate separately if the template calls for one.
6) Is this hardware rated for commercial and institutional use?
Yes. The pack is specified for commercial rather than residential service and is described as Grade 1 for heavy-duty door control applications, which is the usual call-out for schools, hospitals, government buildings, and multi-tenant properties.
7) Does using this thru bolt pack affect ADA compliance on the opening?
The pack itself is listed as ADA compliant and supports ADA-compliant installations when used with compatible 4110 Series closers. ADA at the opening is set by the closer's opening force and closing speed adjustment, not by the fasteners, so mounting hardware won't compromise it as long as you mount the closer in the position its template calls for.
8) Can one property manager stock a single thru bolt pack across a whole building of LCN closers?
Only where the closers are 4110 Series. Stock the finish that matches the majority of your openings and keep a second finish on hand if your bronze and aluminum doors are mixed, since the bolt heads are visible on the opposite door face.
