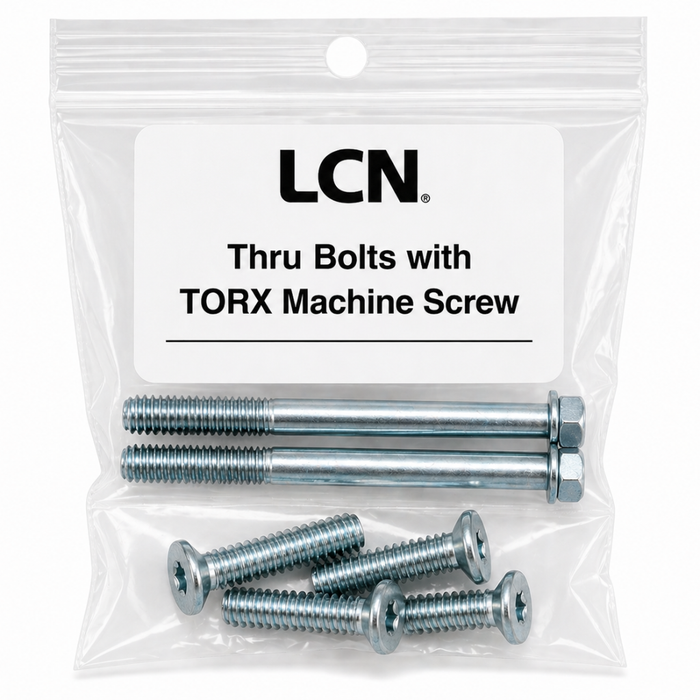

LCN 4110-TBTRX Thru Bolts with TORX Machine Screw Pack - Installation Hardware Kit

LCN 4110-TBTRX Thru Bolts with TORX Machine Screw Pack - Installation Hardware Kit

(No reviews yet) Write a Review

Model: 4110-TBTRX 689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$55.00
$49.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 4110 Series Thru Bolts with TORX Machine Screw Pack - Installation Hardware Kit

Professional Installation Hardware for 4110 Series Door Controls

The LCN 4110 Series Thru Bolts with TORX Machine Screw Pack provides essential mounting hardware for professional door control installations. This specialized screw pack is designed specifically for 4110 Series door controls, featuring TORX drive screws for secure installation and tamper resistance. The kit includes thru bolts and machine screws engineered to LCN's commercial-grade standards for reliable long-term performance.

Professional Features & Benefits

  • 4110 Series Compatibility: Specifically designed for LCN 4110 Series door controls ensuring proper fit and optimal performance.
  • TORX Drive Design: TORX machine screws provide superior torque transfer and tamper resistance compared to standard Phillips or slotted screws.
  • Thru Bolt Construction: Heavy-duty thru bolts provide secure mounting through door and frame assemblies for maximum holding strength.
  • Commercial-Grade Materials: Engineered to meet LCN's commercial standards for durability and corrosion resistance in demanding applications.
  • Complete Installation Kit: Includes all necessary mounting hardware for professional door control installation without additional sourcing requirements.
  • ADA Compliant Application: Supports ADA-compliant door control installations when used with compatible 4110 Series devices.

Technical Specifications

  • ADA Compliant: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Model: 4110-TBTRX
  • Product Subgroup: Parts and Accessories
  • Product Type: Screw Pack
  • Series: 4110 Series
  • Subcategory: Parts and Accessories

Professional Applications

  • Commercial Office Building Door Controls
  • Educational Facility Access Systems
  • Healthcare Institution Door Management
  • Retail Establishment Entry Controls
  • Industrial Facility Door Hardware
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose LCN Quality?

LCN installation hardware delivers professional-grade reliability with commercial-grade materials and precision engineering. This TORX screw pack is manufactured to exacting standards for secure, long-lasting door control installations. Engineered for demanding commercial applications where dependable mounting hardware is essential for optimal door control performance.

Manufacturer Resources

LCN Full Line Catalog

Product Specs

Series:
4110 Series
Subcategory:
Parts and Accessories
Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Product Type:
Screws
Commercial/Residential:
Commercial
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
4110-TBTRX
Product Category:
Door Controls
Department:
Door Hardware

LCN 4110-TBTRX 689 – Frequently Asked Questions

1) What is the LCN 4110-TBTRX screw pack used for?
It's the mounting hardware kit for LCN 4110 Series door closers: thru bolts plus TORX drive machine screws. The thru bolts pass through the door or frame so the closer is clamped rather than held by wood or sheet metal threads, which is what you want on a high traffic opening where sex bolts are specified or where the substrate won't hold screws on its own.
2) Will the 4110-TBTRX thru bolt pack fit closers other than the LCN 4110?
It is sold as 4110 Series hardware and nothing else is stated as compatible. If you're mounting a different LCN series closer, order the thru bolt pack built for that series rather than assuming this one crosses over.
3) Why TORX screws instead of Phillips on a door closer?
Two reasons. TORX transfers torque without camming out, so you can pull the closer body down tight without chewing the head. And it deters casual tampering in public areas, which is the usual reason a spec calls for TORX on closers in schools, lobbies, and restrooms.
4) What finishes does the LCN 4110 TORX thru bolt pack come in?
Thirteen: 616 satin bronze blackened, 632 bright brass, 633 satin brass, 639 satin bronze, 646 satin nickel, 651 bright chrome, 652 satin chrome, 689 aluminum, 690 statuary bronze, 691 light bronze, 693 gloss black, 695 dark bronze, and 696 brass. Match the screw finish to the closer cover so the fasteners disappear into the installation.
5) Do I need anything else to mount the closer besides this kit?
The pack covers the fasteners: thru bolts and machine screws for the closer installation, so you aren't chasing hardware mid-job. The closer body, arm, and any drop plate or bracket the opening requires are separate items.
6) Can I use thru bolts on a hollow metal door for a 4110 closer?
That's exactly the case thru bolts address. Rather than relying on threads tapped into thin sheet steel or on a hollow core, the bolt runs through the door and clamps from the far side, so the pull-off load is carried by the whole leaf. If your opening has solid reinforcement already, standard machine screws are the simpler route.
7) Is this hardware suitable for commercial and ADA openings?
It's a commercial grade kit, listed ADA compliant when used with compatible 4110 Series door controls. Property managers standardizing closers across offices, schools, healthcare, retail, or multi-tenant buildings can spec the same pack on every opening and just change the finish.
