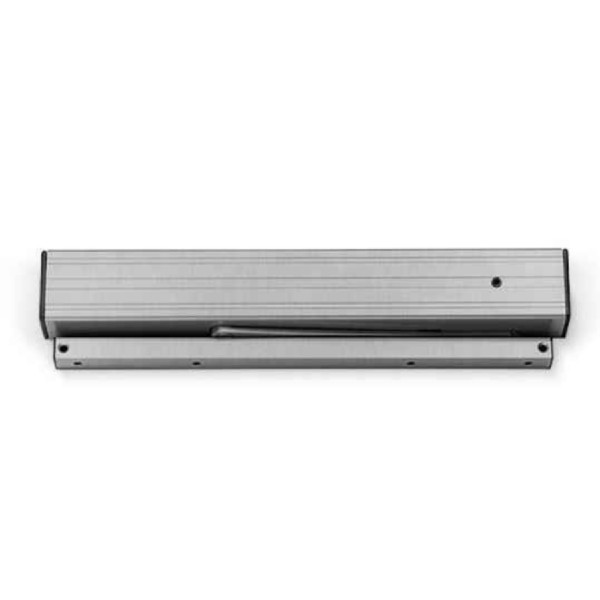

LCN 4311HSA SENTRONIC, Surface-Mounted Heavy Duty Fire/Life Safety Track Closer/Holder - Plated Finish

4311HSA Sentronic, Surface-Mounted, Heavy Duty Fire/Life Safety High Security/Holder

The 4310HSA Sentronic is an electrically controlled Closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the Door is opened to 80° or more, the Door is electrically held open to minimize wear and tear on applied Door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the Door under control of the Heavy Duty Closer. Single Lever (track) Arm Closer is specifically designed for pull side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

The 4310HSA and 4410HSA Series Closers/holders meet ANSI/BHMA A156.15 and NFPA 101 Life Safety Code standards, and come with a 2-year warranty. The Closers/holders are designed to integrate with existing fire and life safety systems, minimizing danger to life and property under fire conditions. The Closers function as full rack-and-pinion Door Closers when the hold-open function is not engaged or the electrical current is interrupted. The 4310HSA and 4410HSA Series Closers/holders are surface Mounted and include a choice of finishes and accessories to meet virtually all high traffic installation requirements.

Pedestrians trigger the built-in HSA scanner by moving through the doorway. When the Door is opened to 80° or more, the electrical hold-open takes over, minimizing everyday hardware damage. When the last pedestrian is through the door, the system timer releases the hold-open, closing the Door with the heavy-duty Closer.

Body construction

• Utilizes heavy-duty cast iron Closer
• Built-in “On/Off” switch
• Full-complement bearing


Quality and durability

• All-weather fluid
• 2-year warranty
• Adjustable hold-open period, up to 30 seconds


Installation

• Wood and machine screw pack
• Standard Metal Cover
• Sized adjustable Spring Power sizes 1-6

Specifications

• Handed design
• Non-sized Spring force
• Multi-point hold-open function
• Sized cylinders for Interior doors up to 4’6

Designs and Finishes

• Standard or optional custom powder coat finish
• Optional plated finish on Metal Cover, Arm and fastener

Mounting/Arm Options

The 4310HSA Series mounts surface mount on high (pull side) with Single Lever track Arm. The 4410HSA Series mounts surface mount on top jamb (push side) with Double lever Regular Arm. Visit the 4310HSA/4410HSA Series catalog pages for mounting details, Arm options and accessories.

Downloads and Resources

• LCN Full Line Catalog
• LCN Fire/Life Safety catalog section
• LCN 4310HSA Series catalog section
• LCN HSA Series Data Sheet
• LCN Fire/Life Safety Closers/Holders Data Sheet
• Choosing the Right Fire & Life Safety Closer
• LCN Installation Instructions/Templates Index
