LCN 8310-2210 Touchless Actuat...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,314.00
$829.50

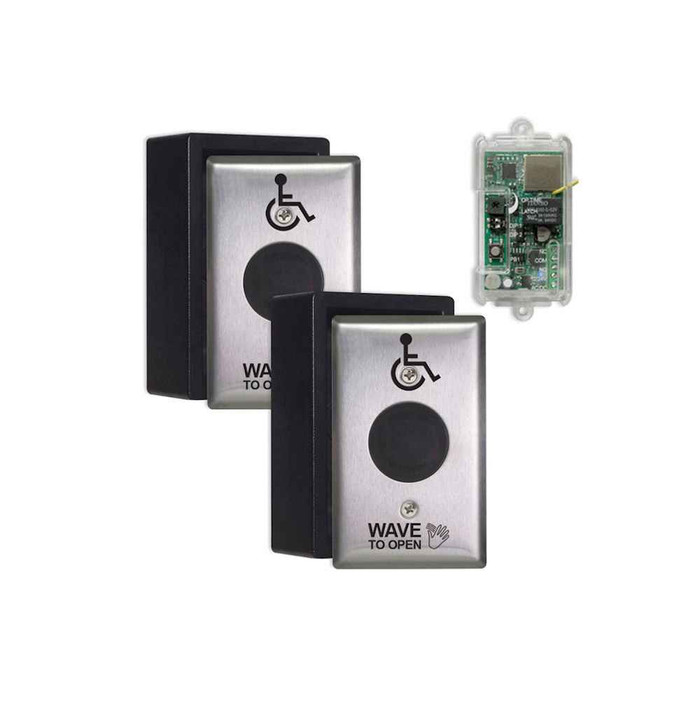

LCN LCN 8310-2210 Touchless Actuator Kit - 2 Single Gang Battery Powered Actuators, Built-in Transmitters, Surface Mount Boxes, Wireless Receiver LCN-8310-2210

LCN 8310-2210 Touchless Actuator Kit with Dual Battery Powered Actuators and Wireless Receiver

(No reviews yet) Write a Review

Model: 8310-2210

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,314.00
$829.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 8310 Series Touchless Actuator Kit with Dual Battery Powered Actuators and Wireless Receiver

Professional Touchless Access Control Solution

The LCN 8310 Series Touchless Actuator Kit provides a complete wireless access control solution featuring two single gang battery powered actuators with built-in transmitters, surface mount boxes, and a wireless receiver. This professional-grade system enables touchless door operation for enhanced hygiene and accessibility compliance in commercial applications. The battery powered design eliminates hardwiring requirements while maintaining reliable wireless communication between actuators and receiver for flexible installation locations.

Professional Features & Benefits

  • Complete Kit Solution: Includes 2 single gang battery powered actuators, built-in transmitters, surface mount boxes, and wireless receiver for immediate installation.
  • Touchless Operation: Enables hands-free door activation for improved hygiene and accessibility compliance in commercial environments.
  • Battery Powered Design: Eliminates hardwiring requirements with reliable battery operation for flexible installation locations without electrical connections.
  • Wireless Communication: Built-in transmitters provide dependable wireless signal transmission to the included receiver unit for reliable system operation.
  • Surface Mount Configuration: Included surface mount boxes allow installation on various wall surfaces without recessing requirements for versatile mounting options.
  • Dual Actuator Setup: Two actuator configuration supports both sides of door openings or multiple access points from a single receiver unit.
  • ADA Compliance: Meets accessibility requirements for touchless operation in commercial facilities.
  • Professional Grade Construction: LCN engineering ensures reliable performance in demanding commercial access control applications.

Technical Specifications

  • ADA Compliant: Yes
  • Battery Operated: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Model: 8310-2210
  • Product Subgroup: Parts and Accessories
  • Product Type: Door Actuators & Plates
  • Series: 8310 Series
  • Subcategory: Closer Parts and Accessories

Professional Applications

  • Commercial Building Security Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Retail Loss Prevention
  • Industrial Facility Monitoring
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose LCN Quality?

LCN touchless actuator systems deliver professional-grade reliability with engineered components designed for demanding commercial applications. The wireless design provides installation flexibility while maintaining dependable performance where touchless access control is essential. ADA compliant operation ensures accessibility compliance for commercial facilities requiring hands-free door activation solutions.

Manufacturer Resources

LCN Full Line Catalog

Product Specs

Subcategory:
Closer Parts and Accessories
Series:
8310 Series
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Door Actuators & Plates
Commercial/Residential:
Commercial
Electronic:
Yes
Battery Operated:
Yes
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
8310-2210
Product Category:
Electronic Access Controls
Department:
Door Hardware

LCN 8310-2210 – Frequently Asked Questions

1) Does the LCN 8310-2210 touchless actuator kit need wiring run to the push plates?
No wiring to the actuators. The 8310-2210 kit uses two battery powered single gang actuators with built-in transmitters that talk to the included wireless receiver, so the plates themselves need no line voltage or low voltage run. That is what makes it workable on an existing opening where you can't get conduit into the wall or across the door. The receiver still has to be tied into the operator side of the system.
2) What comes in the LCN 8310-2210 kit, and do I need to buy mounting boxes separately?
The kit ships with two single gang battery powered actuators, their built-in transmitters, surface mount boxes, and the wireless receiver. The boxes are included, so you don't order them on the side. Surface mount means you're screwing to the wall face rather than cutting in a back box.
3) Can I use one 8310-2210 kit for both the inside and outside of a single door?
Yes. Two actuators come in the kit and both report to the one receiver, so you can put one plate on the approach side and one on the egress side of the same opening, or split them across two separate activation points served by that receiver.
4) Will the LCN 8310-2210 kit operate the door by itself, or do I still need a door operator?
It's an activation device, not an operator. The two actuators and receiver signal something else to open the door, so the opening needs a power operator already in place or on the order. Think of the kit as the switch and transmitter half of the system.
5) Can I retrofit touchless activation to an existing automatic door without opening the walls?
That's the case the 8310-2210 is built for. Battery power at the plates plus wireless transmission to the receiver means no conduit, no wire pull, and no cutting in a back box, since the mounting boxes surface mount. You're mounting two plates where the users need them and putting the receiver where it can reach the operator.
6) What is the closest wireless alternative to the LCN 8310-2210 touchless actuator kit?
The Camden CM-45 series comes as a 4-1/2 inch square push plate switch offered either wired or with a kinetic wireless transmitter, which puts it in the same wireless-activation territory as the LCN 8310-2210. The difference is in what each one is: the LCN 8310-2210 is a complete kit built around two single gang battery powered actuators with built-in transmitters, surface mount boxes, and a wireless receiver, so the transmit-and-receive pair arrives together. The Camden CM-45 is a switch in a 4-1/2 inch square format, and its kinetic wireless version generates its own transmit power from the press rather than running on batteries. Security integrators standardizing a building on one activation format should note the CM-45 square plate footprint against the single gang footprint of the LCN actuators.
7) I only need a mounting box for an 8310 actuator, not a whole touchless kit. What do I order?
The Falcon 8310-819F is a rugged plastic actuator mounting box measuring 1-1/2 inches by 4-3/4 inches in a rectangle jamb and flush mount configuration, and it is an 8310 Series part. That is the part to order when the actuator is already on site and only the box is needed. The LCN 8310-2210 kit is the other direction: it is also an 8310 Series product, but it ships as two battery powered actuators plus a wireless receiver with the surface mount boxes already included, so ordering it to obtain a box means paying for the actuators and receiver as well. Contractors filling out a partially complete opening usually want the 8310-819F box on its own.
8) The actuator has to sit in the door jamb, not on the wall face. Is the 8310-2210 the right choice?
The LCN 8310-2210 kit is configured for surface mounting: the boxes included with its two battery powered actuators are surface mount boxes, which set the actuator on the face of a wall without recessing. For a jamb location, the Falcon 8310-819F is a 1-1/2 inch by 4-3/4 inch rectangle actuator mounting box specified for jamb and flush mount, and it is in the same 8310 Series. Its narrow 1-1/2 inch width is what lets it sit on a jamb face where a single gang surface box will not fit. A general contractor laying out a vestibule with tight jamb returns should confirm which mounting condition the drawing calls for before committing to either box style.
9) Is the LCN 8310 touchless actuator ADA compliant for a hospital or school entrance?
ADA compliant, and it's built as a commercial device rather than a residential one. Touchless activation is what carries the accessibility case here, since no one has to press or grip anything to trigger the operator. Common placements are healthcare, education, government and multi-tenant residential entrances.
10) Should I use a touchless wave actuator or a push plate switch for a door operator?
A push plate switch is a contact device, someone has to physically hit it. The LCN 8310-2210 is touchless, so it activates without contact, which is why it gets specified where hygiene drives the decision (healthcare, food service, restrooms). If contact activation is fine for the opening, a plate switch like the Camden CM-45 4-1/2 inch square push plate is the simpler route, and Camden offers it wired or with a kinetic wireless transmitter. If you want no hand contact at all, the touchless kit is the one.
11) I need a jamb mount actuator box instead of a surface box on the wall. What do I use?
The 8310-2210 kit's included boxes are surface mount for a flat wall face. If the activation point has to land on the frame instead, the Falcon 8310-819F rugged plastic actuator mounting box is a 1-1/2 x 4-3/4 inch rectangle box for jamb and flush mount, and it's in the same 8310 series family.
12) Can I use the Falcon 8310-819F instead of the LCN 8310-2210 touchless actuator kit?
No, they are not substitutes for one another even though both are 8310 Series parts. The Falcon 8310-819F is a rugged plastic mounting box in a 1-1/2 inch by 4-3/4 inch rectangle for jamb and flush mount, so it is an enclosure and nothing more. The LCN 8310-2210 is the working system: two single gang battery powered actuators with built-in transmitters, surface mount boxes, and a wireless receiver, battery operated so no hardwiring run is required, and ADA compliant for touchless operation. A box on its own will not actuate the opening. Property managers replacing a failed touchless station need the 8310-2210 kit; the 8310-819F only makes sense alongside an actuator already in hand.
13) I need two activation points, one inside and one outside. Does one Camden CM-45 cover that?
The Camden CM-45 is a single 4-1/2 inch square push plate switch, available wired or with a kinetic wireless transmitter, so covering both sides of an opening means specifying two of them and confirming how each one reaches the operator. The LCN 8310-2210 arrives as a dual actuator kit: two battery powered actuators with built-in transmitters reporting to one wireless receiver, which is the configuration for both sides of a door opening or two access points served by a single receiver. Facility buyers standardizing across several openings should compare the per-opening count each way, since the LCN kit fixes the pairing at two actuators to one receiver.
14) Which touchless activation option should I pick if I cannot pull wire to the actuator location?
The LCN 8310-2210 is built for that case: it is battery operated with built-in transmitters in each actuator and an included wireless receiver, so no hardwiring run to the actuator position is needed and the surface mount boxes go wherever the wall allows. The Camden CM-45 also has a no-wire path, since it is offered with a kinetic wireless transmitter as an alternative to its wired form, drawing its transmit energy from the press instead of a battery that gets replaced on a schedule. An MRO buyer weighing long-term maintenance across many doors will find the choice comes down to battery replacement intervals against the kinetic approach.
15) What size wall box do the LCN 8310-2210 actuators fit?
Single gang. Both actuators in the kit are single gang units and come with their own surface mount boxes, so the footprint at the wall is a standard single gang plate rather than a wide two gang plate.
