LCN 8310-2420 - 6 1/2” x 6 1/2” x 2” Push Plate Restroom Kit

LCN Push Plate Restroom Access Control Kit with Electric Strike and 24VDC Power Supply

(No reviews yet) Write a Review

Model: 8310-2420

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,523.00
$1,766.10
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

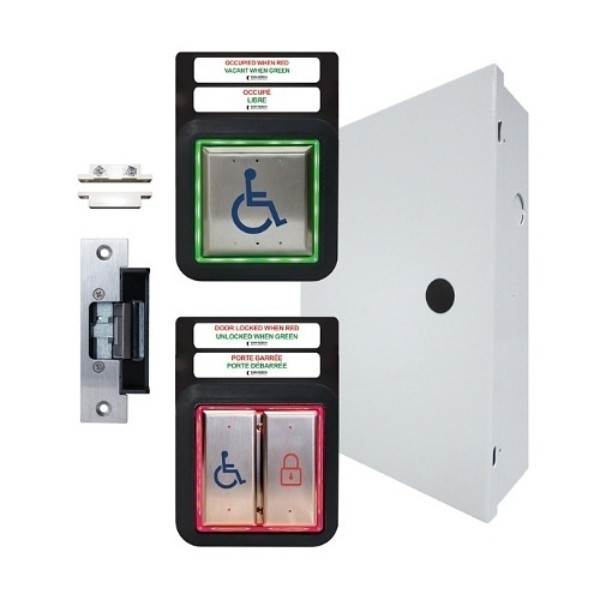

LCN Push Plate Restroom Access Control Kit with Electric Strike and 24VDC Power Supply

Complete Electronic Access Control Solution for Restroom Applications

The LCN Push Plate Restroom Access Control Kit provides a comprehensive electronic access solution featuring dual actuator options, electric strike with multiple faceplates, 120VAC transformer, and 24VDC power supply cabinet. This complete kit includes illuminated push plates measuring 6-1/2" x 6-1/2" x 2" with "Push to Open/Push to Lock" functionality, electric strike with ANSI, aluminum, and wood door faceplates, and an 11-1/16" x 7-7/8" x 2-11/16" control cabinet housing the power supply and relay modules.

Professional Features & Benefits

  • Dual Actuator Configuration: Available with dual single gang "Push to Open/Push to Lock" or double gang "Push to Open" illuminated flush mount actuators for flexible operation modes.
  • Universal Strike Compatibility: Includes three faceplate options - 4-7/8" x 5/8" ANSI Square/Hollow Metal, 6-7/8" x 5/8" Aluminum, and 7-7/8" x 5/8" Wood Door for versatile installation applications.
  • Complete Power Management: 120VAC @ 60Hz transformer with Class B insulation rated to 130°C and 24VDC cabinet output for reliable electrical operation.
  • Integrated Control Cabinet: 11-1/16" x 7-7/8" x 2-11/16" cabinet houses power supply with blue circuit board, relay module with green circuit board, and dual terminal buses for organized system integration.
  • Professional Installation Design: Open style transformer with channel bracket and two-hole chassis mount plus minimum 6" leads for flexible mounting and connection options.
  • Illuminated Operation: Push plate actuators feature integrated illumination for clear visibility and user guidance in restroom applications.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 120VAC @ 60Hz input and ensure adequate current capacity for 24VDC output operation.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the control cabinet in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the transformer and 24VDC system components.
  5. Configure the cabinet power supply to 24VDC output and verify relay module connections per application requirements.
  6. Restore power and test all functions including push plate illumination, electric strike operation, and integration with the power supply and relay systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Restroom Access Control
  • Healthcare Facility Patient Room Access
  • Educational Institution Accessible Restroom Systems
  • Retail Establishment Customer Restroom Security
  • Industrial Facility Controlled Access Areas
  • Multi-Tenant Residential Common Area Access
  • Government Building ADA Compliant Restroom Access

Why Choose LCN Quality?

LCN access control systems deliver professional-grade reliability with Class B insulation rated transformer components and organized cabinet design featuring dedicated power supply and relay modules. The complete kit approach ensures component compatibility and simplifies installation for demanding commercial restroom applications where dependable electronic access control is essential.

Product Documentation & Resources

Product Specs

Series:
8310 Series
Display Text:
Push To Open
Relay Action:
Momentary (MOM)
Symbol:
Handicap
Application:
Actuator
Touchless Activation:
No
Subcategory:
Closer Parts and Accessories
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Door Actuators & Plates
Finish Type:
Powder Coat
Weather Resistant:
Yes
Commercial/Residential:
Commercial
Electronic:
Yes
Wireless Communication:
No
Battery Operated:
No
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
8310-2420
Product Color:
Blue
Product Dimension:
6 1/2” x 6 1/2” x 2”
Mounting Method:
Jamb Mount
Product Shape:
Rectangle
Product Substrate:
Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware
