LCN 8310-3852WF 6" Round Wireless Touchless Actuator Kit with ADA Compliance Features

LCN 8310-3852WF 6" Round Wireless Touchless Actuator Kit with ADA Compliance Features

(No reviews yet) Write a Review

Model: 8310-3852WF

In Stock (leaves warehouse same day if ordered before 3pm ET)

$930.00
$723.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 8310 Series 6" Round Wireless Touchless Actuator Kit with ADA Compliance Features

Professional Touchless Access Control Solution

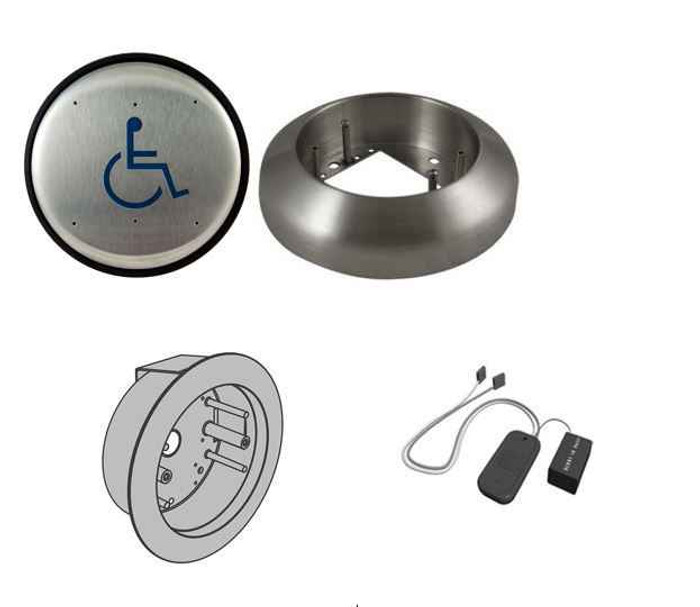

The LCN 8310 Series wireless touchless actuator provides contactless door operation for enhanced hygiene and accessibility in commercial applications. This complete 6" round kit includes the 8310-852 actuator, 8310-844 transmitter, 8310-869F flush box, and 8310-802 weather/trim ring for comprehensive installation flexibility. Features handicap symbol and push to open text for clear user guidance and ADA compliance applications with motion sensing technology that eliminates physical contact requirements.

Professional Features & Benefits

  • Complete Wireless Kit: Includes 8310-852 actuator, 8310-844 transmitter, 8310-869F flush box, and 8310-802 weather/trim ring for comprehensive installation without additional components needed.
  • 6" Round Design: Large, visible actuator surface with handicap symbol and push to open text ensures clear user identification and accessibility compliance in high-traffic areas.
  • Touchless Motion Sensing: Advanced motion sensing technology allows users to activate doors by simply waving their hand in front of the wall plate without physical contact for enhanced hygiene.
  • Dual Mounting Flexibility: Wall mount and flush mount configurations provide installation options for various architectural requirements and aesthetic preferences.
  • Wireless Technology: Eliminates the need for hardwired connections between actuator and door operator, simplifying installation in retrofit applications and reducing installation complexity.
  • Weather Protection: Includes weather/trim ring for enhanced durability in various environmental conditions and outdoor applications.
  • ADA Compliance Ready: Designed with handicap symbol and clear text markings to meet accessibility requirements for commercial facilities.
  • System Integration: Compatible with 8310-865 receiver (sold separately) for complete wireless communication with automatic door operators.

Technical Specifications

  • ADA Compliant: Yes
  • Application: Actuator
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Mounting Method: Flush Mount
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Dimension: 6"
  • Product Group: Electronic Access Controls
  • Product Model: 8310-3852WF
  • Product Shape: Round
  • Product Subgroup: Parts and Accessories
  • Product Type: Door Actuators & Plates
  • Series: 8310 Series
  • Subcategory: Closer Parts and Accessories
  • Touchless Activation: No
  • Weather Resistant: Yes
  • Wireless Communication: Yes

Professional Applications

  • Healthcare Facility Access Control
  • Commercial Building Security Systems
  • Educational Institution Safety Systems
  • Retail Loss Prevention
  • ADA Compliance Applications
  • Industrial Facility Monitoring
  • Emergency Exit Compliance

Touchless Technology Benefits

LCN 8310 Series touchless actuators promote health and well-being by eliminating the need for physical contact with door hardware. The motion sensing technology acknowledges user intent to enter without requiring contact with actuators, door handles, push bars, or doors, making them ideal for facilities prioritizing hygiene and accessibility compliance.

Why Choose LCN Quality?

LCN 8310 Series touchless actuators deliver professional-grade reliability with advanced motion sensing technology designed for demanding commercial applications. The flush mounted design provides aesthetic appeal while reducing susceptibility to accidental damage compared to surface-mounted alternatives. Engineered for facilities where dependable touchless operation and accessibility compliance are essential for user safety and convenience.

Product Specs

Series:
8310 Series
Application:
Actuator
Touchless Activation:
No
Subcategory:
Closer Parts and Accessories
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Door Actuators & Plates
Weather Resistant:
Yes
Commercial/Residential:
Commercial
Electronic:
Yes
Wireless Communication:
Yes
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
8310-3852WF
Product Dimension:
6"
Mounting Method:
Flush Mount
Product Shape:
Round
Product Category:
Electronic Access Controls
Department:
Door Hardware

LCN 8310-3852WF – Frequently Asked Questions

1) What comes in the LCN 8310-3852WF wireless actuator kit, and what else do I need to buy to make it work?
The kit ships with four pieces: the 8310-852 6 inch round actuator, the 8310-844 wireless transmitter, the 8310-869F flush box, and the 8310-802 weather/trim ring. What it does not include is the receiver. You need the 8310-865 receiver, ordered separately, to get the signal to the automatic door operator. Plan on that line item before the crew shows up.
2) Can the LCN 8310 6 inch round actuator be surface mounted on a wall, or is it flush mount only?
Both. The 8310-3852WF is a wall mount and flush mount actuator, which is why the kit carries the 8310-869F flush box for recessed work and the 8310-802 trim ring for surface applications. The spec sheet lists the mounting method as flush mount, so if the wall cavity allows it, flush is the configuration LCN calls out first.
3) Does this actuator meet ADA accessibility requirements for a building entrance?
It is built for ADA compliance applications: the 6 inch round face carries the handicap symbol and push to open text, and the record marks it ADA compliant. Keep in mind the actuator is only one half of the equation. The door it triggers still has to be a low energy automatic operator that meets the opening force and timing requirements for your facility.
4) Do I have to run wire from the push plate back to the door operator?
No. That is the point of this kit. The 8310-844 transmitter pairs wirelessly with the 8310-865 receiver at the operator, so there is no conduit or wire pull between the actuator location and the door. For a retrofit where the plate sits across a lobby or on the far side of a finished wall, that is usually the difference between a half day and a demolition job.
5) What is the difference between the LCN 8310-3852WF and the Camden CM-45 push plate switch?
The LCN 8310-3852WF is a 6 inch round wireless actuator kit, weather resistant and ADA compliant, supplied with the actuator, transmitter, flush box and weather/trim ring. The Camden CM-45 is a 4-1/2 inch square push plate switch offered wired or with a kinetic wireless transmitter. So the choice comes down to plate shape and size - 6 inch round versus 4-1/2 inch square - and whether you want a wired option, which the Camden series offers and the 8310-3852WF kit does not.
6) I only need a mounting box for an actuator, not a whole kit. What should I order instead of the LCN 8310-3852WF?
The 8310-3852WF is a complete kit that already bundles the 8310-852 actuator, 8310-844 transmitter, 8310-869F flush box and 8310-802 weather/trim ring. If the actuator is already on hand and only the enclosure is needed, the Falcon 8310-819F is a rugged plastic actuator mounting box measuring 1-1/2 inch by 4-3/4 inch for jamb and flush mount applications. Note that it is a narrow rectangular jamb box, not a housing for a 6 inch round plate.
7) Is this LCN touchless actuator rated for an exterior door where it will see rain?
The 8310-3852WF is listed as weather resistant and the kit includes the 8310-802 weather/trim ring specifically for outdoor and exposed installations. That makes it usable on an exterior entrance. It is a commercial-duty part, not a residential one.
8) Is the 6 inch round LCN actuator a wave-to-open sensor or do you still press it?
LCN describes the 8310 Series touchless actuators as motion sensing, so a user waves a hand in front of the plate rather than pushing it. The face is still marked push to open, which is what most facilities want on a mixed-use entrance so nobody is confused about what the plate does.
9) Can I use the Falcon 8310-819F box as the enclosure for the LCN 8310-3852WF actuator?
No. The 8310-819F is a 1-1/2 inch by 4-3/4 inch rectangular jamb and flush mount box, sized for narrow jamb-style actuators, while the 8310-3852WF uses a 6 inch round plate and ships with its own 8310-869F flush box and 8310-802 weather/trim ring. Both carry 8310 Series designations, which is why they are often confused, but the openings are different shapes and sizes.
10) Is there a hardwired alternative to the LCN 8310-3852WF for a new-construction opening where running wire is easy?
The 8310-3852WF is a wireless kit, which is what makes it attractive on retrofits where pulling wire to the operator is difficult. Where conduit is already being run, the Camden CM-45 series push plate switches are available in a wired configuration as well as with a kinetic wireless transmitter, in a 4-1/2 inch square plate. Confirm plate size and graphics against your accessibility requirements, since the 6 inch round LCN plate carries the handicap symbol and push to open text.
11) Why choose a flush mounted actuator over a surface mounted plate in a busy corridor?
A flush mounted plate sits in the wall, so it takes less abuse from carts, gurneys and luggage than a surface mounted unit that stands proud of the finish. In healthcare corridors, schools and hotel entries that matters over the life of the opening. The trade-off is that flush mounting needs the wall opened up for the 8310-869F box, which is why the kit also includes the trim ring for jobs where you cannot cut in.
