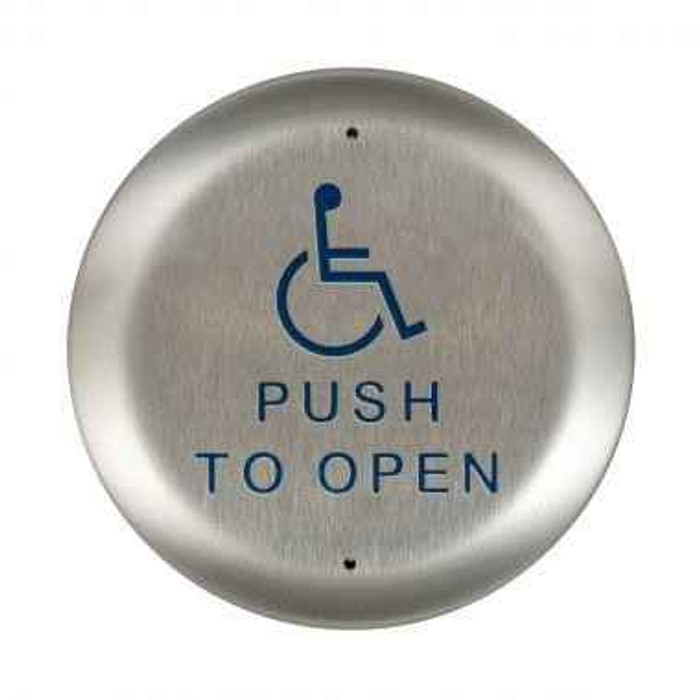

LCN LCN 8310-856T 4-1/2" Round, Stainless Steel Hardwired Surface And Flush Mount Actuator with Handicap Symbol and Text LCN-8310-856T

LCN 8310-856T 4-1/2" Round Stainless Steel ADA-Compliant Door Actuator with Handicap Symbol

(No reviews yet) Write a Review

Model: 8310-856T

In Stock (leaves warehouse same day if ordered before 3pm ET)

$309.00
$196.78
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 4-1/2" Round Stainless Steel ADA-Compliant Door Actuator with Handicap Symbol

Professional ADA-Compliant Door Actuator Solution

The LCN 4-1/2" round hardwired actuator delivers professional-grade access control with stainless steel construction and engraved handicap symbol for ADA compliance. This commercial-grade actuator measures 4-1/2" (114mm) in diameter and features "Push to Open" text with blue filled handicap symbol for universal accessibility. Designed for both flush and surface mount installation, this weather-resistant actuator provides reliable operation in demanding commercial environments with vandal-resistant components and heavy industrial grade construction.

Professional Features & Benefits

  • ADA-Compliant Design: Engraved blue filled handicap symbol with "Push to Open" text conforms to accessibility codes for universal access compliance.
  • Durable Stainless Steel Construction: 4-1/2" (114mm) diameter round touch plate provides long-lasting performance in high-traffic commercial applications.
  • Versatile Mounting Options: Designed for both flush and surface mount installation in vertical surfaces near controlled doors with optional single gang electrical box mounting.
  • Vandal and Weather Resistant: Heavy industrial grade components deliver reliable operation with vandal-resistant mounting and weather-resistant switch protection for outdoor applications.
  • Professional Hardwired Operation: Low voltage hardwired design ensures consistent performance in commercial access control systems with momentary relay action.
  • 8310 Series Compatibility: Part of the comprehensive LCN 8310 Series automatic operator accessory line for integrated door control solutions.
  • Manufacturer Warranty: 1 Year Limited warranty provides added confidence and protection for commercial installations.

Technical Specifications

  • ADA Compliant: Yes
  • Application: For use with power operators requiring Dry Contact, Round Actuator
  • Battery Operated: No
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Display Text: Push To Open
  • Electronic: Yes
  • Finish Type: Plated
  • Mounting Method: Flush Mount
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Color: Blue
  • Product Group: Electronic Access Controls
  • Product Model: 8310-856T
  • Product Shape: Round
  • Product Subgroup: Parts and Accessories
  • Product Substrate: Stainless Steel
  • Product Type: Door Actuators & Plates
  • Relay Action: Momentary (MOM)
  • Series: 8310 Series
  • Subcategory: Closer Parts and Accessories
  • Symbol: Handicap
  • Touchless Activation: No
  • Warranty: 1 Year Limited
  • Weather Resistant: Yes

Professional Applications

  • Commercial Building Security Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Retail Loss Prevention
  • Industrial Facility Monitoring
  • Government and Municipal Buildings
  • ADA Compliance Retrofits

Why Choose LCN Quality?

LCN door actuator products deliver professional-grade reliability with heavy industrial grade components and stainless steel construction rated for demanding commercial applications. The vandal-resistant mounting and weather-resistant switch design with 1 Year Limited warranty ensures dependable performance in high-use environments where consistent ADA-compliant access control operation is essential.

Product Specs

Series:
8310 Series
Display Text:
Push To Open
Relay Action:
Momentary (MOM)
Symbol:
Handicap
Warranty:
1 Year Limited
Application:
For use with power operators requiring Dry Contact, Round Actuator
Touchless Activation:
No
Subcategory:
Closer Parts and Accessories
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Door Actuators & Plates
Finish Type:
Plated
Weather Resistant:
Yes
Commercial/Residential:
Commercial
Electronic:
Yes
Battery Operated:
No
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
8310-856T
Product Color:
Blue
Mounting Method:
Flush Mount
Product Shape:
Round
Product Category:
Electronic Access Controls
Product Substrate:
Stainless Steel
Department:
Door Hardware

LCN 8310-856T – Frequently Asked Questions

1) Will the LCN 8310-856T actuator work with any low energy automatic door operator, or only LCN?
What matters is the operator's input, not the brand badge. The 8310-856T is a dry contact device: it's built for use with power operators requiring a dry contact input, and it signals with a momentary (MOM) relay action. Any low energy operator that takes a normally open dry contact momentary input will accept it. It's hardwired and carries no battery, so the operator or the access control panel supplies the low voltage.
2) Can the 4-1/2 inch LCN round push plate be mounted on the surface of a wall, or does it need a recessed box?
Both work. The 8310-856T round actuator is made for flush and surface mount on vertical surfaces near the controlled door, with optional single gang electrical box mounting. So if you have block or existing drywall you don't want to cut into, you surface mount it; if you're roughing in new work, a single gang box takes it flush. The plate itself is 4-1/2 inches (114mm) in diameter and round, so it does not cover a standard single gang plaster ring opening the way a rectangular plate does. Plan the box location to center under the plate.
3) Is this LCN push plate rated for outdoor use on an exterior entrance?
Yes. The 8310-856T is weather resistant, with a weather-resistant switch and vandal-resistant mounting, and the touch plate is stainless steel rather than plated aluminum, so an exterior approach side is a normal application for it. It's a commercial-grade device, not a light duty residential one.
4) Does the LCN 8310-856T actuator satisfy an ADA push plate requirement for a barrier free entrance?
The plate is ADA compliant as supplied: it carries the engraved handicap symbol filled in blue plus "Push To Open" text, which is the marking an accessible entrance actuator is expected to carry. What the plate cannot do for you is the mounting height and the approach clearance, both of which are set by where you install it, not by the part. Order it as-is for ADA compliance retrofits and accessible entrances; nothing has to be added to make the plate itself conforming.
5) Is the LCN 8310-856T a touchless wave sensor or a push plate you actually press?
It's a contact plate. You press it. There is no touchless activation on the 8310-856T, and no battery inside it. If your facility wants hands free operation, that's a different device family entirely, and LCN publishes touchless access material covering those options. For a healthcare or food service opening where nobody should be touching the plate, don't order this one.
6) What is an equivalent 4-1/2 inch push plate actuator if a square plate is needed instead of a round one?
The LCN 8310-856T is a 4-1/2 inch round stainless steel actuator with the handicap symbol and Push To Open text. Where the opening calls for a square plate at the same 4-1/2 inch size, the Camden Door Controls CM-45 series is a 4-1/2 inch square push plate switch. Both are wall-mounted push plate switches used to signal a power operator; the choice between them is plate geometry and how it lines up with the existing plate cutout or the rest of the plates on the building.
7) What push plate switch can be used at an actuator location where running low voltage wire back to the operator is not practical?
The LCN 8310-856T is a hardwired actuator for power operators requiring a dry contact, so it needs a wire run to the operator. For a location where that run cannot be made, the Camden Door Controls CM-45 series push plate switches are offered wired or with a kinetic wireless transmitter, which removes the wire run from the plate to the operator. Confirm the operator accepts the corresponding wireless receiver before specifying the wireless version.
8) What is the difference between the LCN 8310-856T round actuator and a 4-1/2 inch square push plate like the Camden CM-45?
Shape and wiring approach are the split. The 8310-856T is a 4-1/2 inch round stainless steel plate, hardwired only, with no battery and no wireless option. The Camden CM-45 Series is a 4-1/2 inch square plate available wired or with a kinetic wireless transmitter, so it's the one to look at when you can't pull wire back to the operator. If you're matching existing round plates across a building, or the existing cutout is round, the LCN keeps the openings consistent.
9) Do I need to order a mounting box separately for a jamb mounted actuator on this LCN 8310 Series job?
For a wall surface, the 856T mounts flush or surface, using a single gang electrical box when you want it recessed. A door jamb is a different problem: the round 4-1/2 inch plate is too wide for most jamb faces. When the actuator has to go on the jamb, the 8310 Series mounting box in the same family is the Falcon 8310-819F, a rugged plastic actuator mounting box measuring 1-1/2 inches by 4-3/4 inches, rectangular, for jamb and flush mount. Pair the narrow rectangular actuator with that box for jambs and keep the round plate for wall locations.
10) Will the 8310-856T hold the door open, or does it just trigger a cycle?
It triggers, it doesn't hold. The relay action is momentary, meaning the contact closes while pressed and releases, and the operator runs one open cycle on that signal. Hold open time is a setting on the automatic operator, not something the plate controls. If someone needs the door held longer, adjust the operator's hold open timer rather than looking for a different actuator.
11) For an exterior door, which push plate holds up outdoors?
The LCN 8310-856T is a weather resistant stainless steel actuator with a momentary relay action, which is what suits it to an exterior opening. The Camden Door Controls CM-45 square push plate switch is the alternative at the same 4-1/2 inch plate size; for an exterior application, verify the CM-45 version selected carries an exterior rating, since the stainless weather resistant construction is what the 8310-856T is built around.
12) I'm standardizing actuators across a campus. Is the LCN 8310-856T the same plate on every opening, or are there options to specify?
One configuration, so there's nothing to spec out. Model 8310-856T is the 4-1/2 inch round stainless steel plate with the blue handicap symbol and "Push To Open" text, hardwired, momentary action. No finish choices, no symbol variants, no size options to reconcile across buildings. For an institutional standard that's the point: every opening gets an identical plate and one part number covers reorders.
