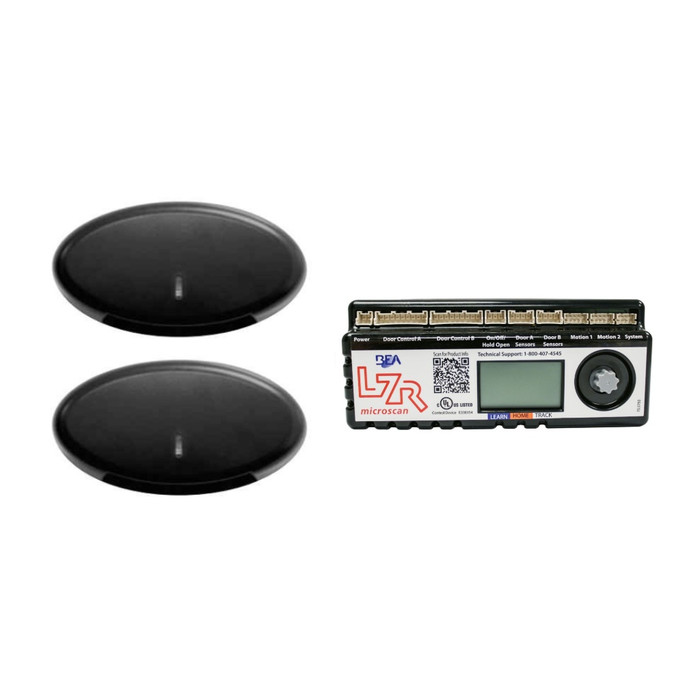

LCN 8310-878 Single Door Safety Package with ANSI A156.10 Monitoring and Door-Mounted Sensors

LCN 8310-878 Single Door Safety Package with ANSI A156.10 Monitoring and Door-Mounted Sensors

(No reviews yet) Write a Review

Model: 8310-878

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6,127.00
$4,006.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 8310-878 Single Door Safety Package with ANSI A156.10 Monitoring and Door-Mounted Sensors

Complete Door Safety Solution with Professional Monitoring Compliance

The LCN 8310-878 Single Door Safety Package provides comprehensive swing door safety functionality with ANSI A156.10 monitoring compliance. This complete system includes two door-mounted sensors and a control hub that perform essential safety functions while meeting professional monitoring requirements. All necessary wire harnesses and mounting hardware are included for streamlined installation and immediate operational capability as part of LCN's 8310 Series automatic operator solutions.

Professional Features & Benefits

  • Complete Safety System: Contains two door-mounted sensors and control hub for comprehensive swing door safety monitoring and protection.
  • ANSI A156.10 Compliance: Provides required sensor monitoring per ANSI A156.10 standards for professional code compliance and safety assurance.
  • Complete Installation Package: All wire harnesses and mounting hardware included for efficient installation without additional component sourcing.
  • Door-Mounted Sensor Design: Sensors mount directly to door for optimal positioning and reliable detection throughout door operation cycle.
  • Integrated Control Hub: Centralized control system manages sensor inputs and monitoring functions for simplified system operation.
  • 8310 Series Integration: Part of LCN's comprehensive 8310 Series automatic operator solutions for consistent system compatibility.
  • ADA Compliant Design: Meets ADA compliance requirements for accessible automatic door applications.
  • Professional Safety Functions: Performs comprehensive swing door safety functions including obstruction detection and monitoring alerts.

Technical Specifications

  • ADA Compliant: Yes
  • Application: Monitored safety sensor kit for single door applications
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Package: Yes
  • Package Qnty: 3
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Model: 8310-878
  • Product Subgroup: Parts and Accessories
  • Product Type: Safety Packages
  • Series: 8310 Series
  • Subcategory: Closer Parts and Accessories

Professional Applications

  • Healthcare Facility Automatic Door Systems
  • Educational Institution Safety Compliance
  • Commercial Building Access Control
  • Retail Establishment Entry Systems
  • Government and Municipal Buildings
  • Industrial Facility Safety Monitoring
  • Multi-Tenant Residential Properties

Why Choose LCN Quality?

LCN 8310 Series safety packages deliver professional-grade reliability with comprehensive monitoring capabilities designed for demanding automatic door applications. Complete installation packages with all necessary hardware and wiring components ensure efficient deployment and immediate compliance with ANSI A156.10 requirements. Engineered as part of LCN's integrated automatic operator solutions where dependable safety performance and code compliance are essential.

Product Specs

Series:
8310 Series
Application:
Monitored safety sensor kit for single door applications
Subcategory:
Closer Parts and Accessories
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Safety Packages
Commercial/Residential:
Commercial
Electronic:
Yes
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Package:
Yes
Package Qnty:
3
Product Model:
8310-878
Product Category:
Electronic Access Controls
Department:
Door Hardware

LCN 8310-878 – Frequently Asked Questions

1) What comes in the LCN 8310-878 safety package?
The 8310-878 is a monitored safety sensor kit for a single door: two door-mounted sensors plus a control hub, with the wire harnesses and mounting hardware needed to install them. The package quantity is 3 pieces, which is those two sensors and the hub. You are not buying an operator here, you are buying the sensor package that goes on one.
2) Will the LCN 8310-878 sensor package cover a pair of doors?
No. The 8310-878 is built for single door applications, one hub and two sensors for one leaf. A pair of doors needs a package per leaf, since each active leaf carries its own door-mounted sensors and swing path to monitor.
3) Does the LCN 8310-878 kit meet the ANSI A156.10 sensor monitoring requirement?
Yes. The 8310-878 provides the sensor monitoring required under ANSI A156.10, which is the standard that governs powered pedestrian doors and requires the operator to verify its safety sensors are working rather than just present. That is the reason to buy this kit instead of unmonitored sensors: an inspector checking an automatic swing door against A156.10 is looking for monitoring.
4) Is the 8310-878 safety package only for LCN 8310 Series operators?
It is part of the LCN 8310 Series automatic operator line and is sold as an 8310 Series accessory, with the harnesses matched to that system. If the opening runs an 8310 operator, this is the safety package that goes with it. Specify the sensor package for whatever operator series is actually on the door rather than mixing families.
5) Door-mounted sensors or header-mounted sensors, which do I want on a swing door operator?
The 8310-878 uses door-mounted sensors, meaning the sensing heads ride on the door leaf and travel with it through the swing. That keeps the detection field aimed relative to the door itself for the whole cycle, and it suits openings where there is no usable header depth or where the approach side geometry makes a fixed overhead field awkward. If your spec calls for presence detection tied to the door's own travel, this is the configuration.
6) Does the LCN 8310-878 satisfy ADA requirements for an automatic door?
The 8310-878 is ADA compliant as part of an accessible automatic door application. For a property manager standardizing accessible entrances across a building, the sensor package is the part that keeps the opening compliant once the operator is in, and this one is rated for that use.
7) Do I need to order wiring or brackets separately with the 8310-878 sensor package?
No extra sourcing. The wire harnesses and mounting hardware ship in the box with the two sensors and the control hub, so the crew is not chasing brackets or pigtails on install day. What is not in the box is the operator itself and the low voltage power and actuator wiring for the opening.
8) Is the LCN 8310-878 an electronic device that needs to be wired in?
Yes, it is an electronic assembly, not mechanical hardware. The two sensors land on the control hub through the supplied harnesses, and the hub ties into the operator's control. Budget for a low voltage rough-in and an installer who commissions automatic operators, not just a door hardware fitter.
9) Is the LCN 8310-878 rated for commercial traffic or is it a residential product?
Commercial. The 8310-878 is specified for commercial automatic door installations, healthcare, schools, government buildings, retail entries, industrial facilities and multi-tenant residential common entrances. It is not a light-duty residential device.
