LCN 3133-STD RH 695 Size 3 Con...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$831.00
$593.22

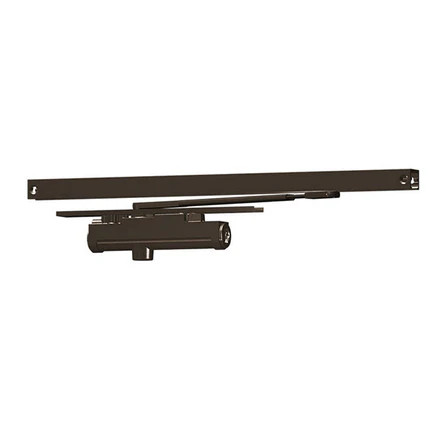

LCN Concealed Track Closer Dark Bronze, Single Lever, Concealed Arm Standard Track Arm, Right Hand In Door Mount, Size 3 Dark Bronze

LCN 3133-STD RH 695 Size 3 Concealed Track Door Closer with Standard Track Arm and Right Hand Mount

(No reviews yet) Write a Review

Model: 3133-STD RH 695
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$831.00
$593.22
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN Size 3 Concealed Track Door Closer with Standard Track Arm and Right Hand Mount

Professional Concealed Door Closer Solution

The LCN Size 3 Concealed Track Door Closer delivers professional-grade door control with a concealed arm design that provides clean aesthetics while maintaining reliable performance. This right-hand in-door mount closer features single lever operation with standard track arm configuration in an attractive dark bronze finish. ADA compliant design ensures accessibility compliance for commercial applications requiring dependable door closing performance with minimal visual impact.

Professional Features & Benefits

  • Concealed Track Design: Hidden arm mechanism provides clean door appearance while delivering reliable closing performance for professional installations.
  • Size 3 Capacity: Engineered for medium-duty commercial applications with appropriate closing force for standard door weights and traffic levels.
  • Right Hand Configuration: Factory-configured for right-hand in-door mounting to ensure proper installation and optimal performance.
  • Single Lever Operation: Simplified control mechanism provides reliable adjustment and maintenance for long-term performance.
  • Standard Track Arm: Proven track arm design delivers consistent closing action with smooth operation throughout the door cycle.
  • ADA Compliance: Meets ADA requirements for accessibility in commercial applications.
  • Dark Bronze Finish: Attractive dark bronze finish provides corrosion resistance and complements a wide range of architectural hardware finishes.
  • Commercial-Grade Construction: Built to LCN quality standards for demanding commercial applications where reliable door control is essential.

Technical Specifications

  • ADA Compliant: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Handle Type: Lever
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Model: 3133-STD RH 695
  • Product Subgroup: Parts and Accessories
  • Product Type: Parts and Accessories
  • Subcategory: Closer Parts and Accessories

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose LCN Quality?

LCN door closer products deliver professional-grade reliability with commercial-grade construction engineered for demanding applications. The concealed track design provides both aesthetic appeal and dependable performance where clean door appearance and reliable operation are essential. Built to LCN quality standards for long-term commercial use with ADA compliant operation for accessibility requirements.

Manufacturer Resources

LCN Full Line Catalog

Product Specs

Subcategory:
Closer Parts and Accessories
Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Product Type:
Parts and Accessories
Commercial/Residential:
Commercial
Handle Type:
Lever
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
3133-STD RH 695
Product Category:
Door Controls
Department:
Door Hardware

LCN 3133-STD RH 695 – Frequently Asked Questions

1) Will the LCN 3133-STD RH work on a left hand door?
No. The 3133-STD RH is built right hand, in-door mount, and handing is fixed at the factory on this one. Mount it on a left hand opening and the track and arm geometry will not line up. For a left hand door you need the left hand version of the same closer, ordered as the LH configuration.
2) What is the difference between a concealed track closer like the LCN 3133 and a floor closer?
Two different places to put the hardware. The 3133 is an in-door concealed closer: the body and the track arm hide in the door and frame head, so the opening reads clean from the corridor with no surface box. It is set up for medium duty commercial traffic at Size 3. A floor closer instead buries the mechanism in the slab under the pivot, which is what you use for center hung doors and heavy leaves, all-glass entries, or where the head has no room for a track. The Norton Rixson 28 Series is a Grade 1 heavy duty center hung floor closer rated to 350 lbs of door weight, and the 30 Series is the double acting version at 200 lbs. If the door swings both ways or is heavier than a standard commercial leaf, the floor closer is the right family, not the concealed track.
3) Does the LCN 3133 closer meet ADA opening force requirements?
The 3133 concealed track closer is ADA compliant, which is why it turns up on school, healthcare and government openings where accessible opening force has to be documented. Size 3 gives the closing power for a medium duty commercial leaf while still allowing the closer to be adjusted down to an accessible pull.
4) Is Size 3 enough closer for a heavy exterior door?
Size 3 is a medium duty spring size, sized for standard interior and light commercial door weights and normal traffic. On a heavy or wide exterior leaf, or one that fights wind load, a Size 3 will feel underpowered and the door will not pull into the latch reliably. Those openings want a higher spring size or a heavy duty floor closer such as the Norton Rixson 40 Series, a Grade 1 center hung unit with a cement case rated to 300 lb door capacity.
5) What closer should I use on a door that swings both ways instead of an LCN 3133-STD?
The 3133-STD is a single acting closer - it is factory configured for right hand in-door mount with a standard track arm and controls the door in one swing direction. For a door that swings both ways, the Norton Rixson 30 Series is a center hung double acting heavy duty floor closer rated to 200 lbs door weight, built to Grade 1. Double acting means the door is center hung on pivots and the closer under the floor returns it to center from either direction, so the opening has to be detailed for a center hung double acting door from the start - it is not a swap into a door prepped for a head-mounted concealed track closer.
6) Can the 3133 concealed closer be retrofitted into an existing door, or does the door have to be prepped for it?
A concealed in-door closer needs the door and the frame head prepped for it: a pocket in the door edge for the closer body and a track routed into the frame head for the arm. That prep is why these go into new doors or factory prepped replacements rather than onto an existing surface mounted opening. If the door is already hung and unprepped, a surface mounted closer is the practical swap, and you keep the concealed track for openings where the prep already exists or the door is being replaced anyway.
7) Does the LCN 3133 standard track arm hold the door open?
Standard track arm, so it is the plain closing configuration: the door closes under spring power every cycle with no detent to park it open. If you need the leaf to stay open, that is a hold open track or hold open arm, a different arm assembly. Deltana, for example, catalogues the DCHA1050 hold open arm for its DC10 closer and the DCCA4041 cushion arm for the DC40. Same idea across brands: the arm or track you specify is what decides hold open, not the closer body.
8) I need to replace a failed concealed closer but keep the existing track. Will parts from another brand work?
Closer arms and tracks are brand and series specific, not interchangeable. A Deltana DCCA4041 arm fits DC40 closers, a DCHA1050 fits DC10, and Cal-Royal's accessory kit is built for its 900 Series. Same rule applies here: the 3133 standard track arm belongs to the LCN concealed track family and will not mate to another maker's track. Match the closer series before ordering any arm or track component.
9) Is a Deltana hold open arm or cushion arm a replacement arm for the LCN 3133-STD?
No. The Deltana DCHA1050 is a hold open arm for the DC10 door closer and the Deltana DCCA4041 is a cushion arm for the DC40 door closer - each is matched to its own closer series and bolts to that closer's spindle. The 3133-STD uses a concealed arm running in a standard track, a design where the arm and track are part of one system rather than a surface arm you can exchange for a different profile. If the goal is hold open or a cushioned stop on a 3133-STD opening, that is a question about the track and arm option the closer was ordered with, not about fitting an arm from another manufacturer's closer.
10) My door has a floor closer and needs a bottom arm - does the LCN 3133-STD cover that?
No, those are different parts of different systems. The Dorma 15323 is a 1-1/2 inch offset bottom arm with cover, standard duty, and it is the arm that ties an offset hung door to the closer or pivot at the bottom of the door. The LCN 3133-STD is a complete size 3 concealed track door closer with its own standard track arm, mounted in the door with the arm concealed in a track. Buying the 3133-STD does not produce a bottom arm for an offset hung door, and the 15323 does not close a door on its own. One point to confirm before specifying the 15323: it carries no fire rating, so it does not belong on a labeled opening.
11) What finish does the LCN 3133-STD RH 695 come in?
695 dark bronze, and that is the only finish this one is built in. It is a painted bronze tone that lines up with dark bronze levers, hinges and exit trim, so on a building already standardized on bronze hardware the concealed track and any exposed arm cover will match the rest of the opening.
12) Is the LCN 3133 concealed closer suitable for a fire rated door?
Fire door assemblies need every component listed for that assembly, and hold open on a fire door has to release on alarm. The 3133 is a standard track, non hold open closer for commercial openings. Confirm the door and frame label against the closer listing before it goes on a rated opening, since the label governs what may be installed in it.
13) What kind of buildings is the LCN Size 3 concealed track closer normally specified for?
Interior commercial openings where the hardware should not be seen: offices, schools, healthcare corridors, retail, multi-tenant residential and municipal buildings. Size 3 covers the medium duty traffic those doors see, and the concealed body keeps the head of the frame clean in a lobby or a finished corridor where a surface closer would be the one thing spoiling the elevation.
14) Will a Cal-Royal 900 Series accessories kit service an LCN 3133-STD?
No. The Cal-Royal 900 Series door closer accessories kit is built for Cal-Royal 900 Series commercial door controls, and closer accessory kits are series-specific - brackets, plates and fasteners are cut to one manufacturer's closer body and arm geometry. The 3133-STD is LCN model 3133-STD RH 695, a size 3 concealed track closer, and anything that attaches to it has to match the LCN concealed track system. Order accessories against the LCN model number rather than by closer size.
