Keystone KTLD-2LT8-UV-10C-VDIM...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$71.79
$20.76

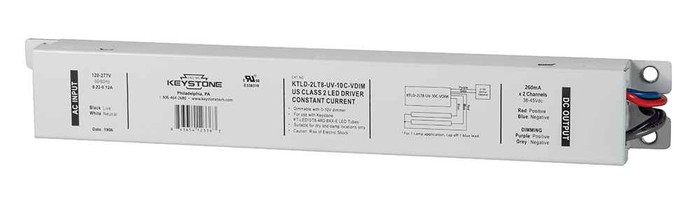

Keystone KTLD-2LT8-UV-10C-VDIM LED Driver for (1-2) KT-LED10T8-48G-8xx-E; 0-10V dimming, 270 mA output current

Keystone KTLD-2LT8-UV-10C-VDIM LED Driver for (1-2) KT-LED10T8-48G-8xx-E; 0-10V dimming, 270 mA output current

(No reviews yet) Write a Review

Model: KTLD-2LT8-UV-10C-VDIM
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$71.79
$20.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
LED Driver for (1-2) KT-LED10T8-48G-8xx-E; 0-10V dimming, 270 mA output current

Manufacturer Resources

Product Specs

Classification:
Light Sources
Part Type:
External Drive
Rate Life:
50000
Volts:
120-277
Warranty Years:
5

Keystone KTLD-2LT8-UV-10C-VDIM – Frequently Asked Questions

1) How many LED tubes can the Keystone KTLD-2LT8-UV-10C-VDIM driver run?
One or two lamps. The KTLD-2LT8-UV-10C-VDIM is built to drive one to two KT-LED10T8-48G-8xx-E tubes at 270 mA output current. If your fixture holds three or four lamps, you need a driver rated for that lamp count instead.
2) Will the Keystone KTLD-2LT8-UV-10C-VDIM work on 277V commercial lighting circuits?
Yes. It is a universal voltage driver accepting 120-277V, so the same part covers 120V residential-style circuits and the 277V branch circuits common in commercial and industrial buildings. That lets you standardize one driver across a facility running both voltages.
3) Is the KTLD-2LT8-UV-10C-VDIM dimmable, and what control does it need?
It dims via a 0-10V control signal, so you need a 0-10V dimmer or lighting control system and a pair of low voltage control conductors run to the driver in addition to the line voltage feed. It will not dim from a standard line voltage wall dimmer.
4) Can I use the KTLD-2LT8-UV-10C-VDIM with any 4 foot LED T8 tube?
No. It is matched to the Keystone KT-LED10T8-48G-8xx-E external-drive tubes and its 270 mA constant current output. Ballast-bypass or plug-and-play T8 tubes from other lines run on line voltage or an existing fluorescent ballast and must not be connected to this driver.
5) Is this Keystone driver internal to the tube or a separate remote driver?
It is an external driver, mounted in or near the fixture and wired to the lamp sockets. That is how the KT-LED10T8-48G-8xx-E tubes work: the lamp carries no internal driver, so this component is required for the system to operate.
6) Does the 8xx in KT-LED10T8-48G-8xx-E matter when ordering this driver?
No. The 8xx is the color temperature code on the lamp (830, 835, 840 and so on). The KTLD-2LT8-UV-10C-VDIM driver serves any color temperature in that tube family, so you pick the driver by lamp count and dimming, and the color by the lamp you order.
7) I am ordering this driver by part number for a job, what exactly do I specify?
Order Keystone KTLD-2LT8-UV-10C-VDIM. That one part number covers the two-lamp configuration, universal 120-277V input, 0-10V dimming and 270 mA output; there are no suffix or option choices to add.
