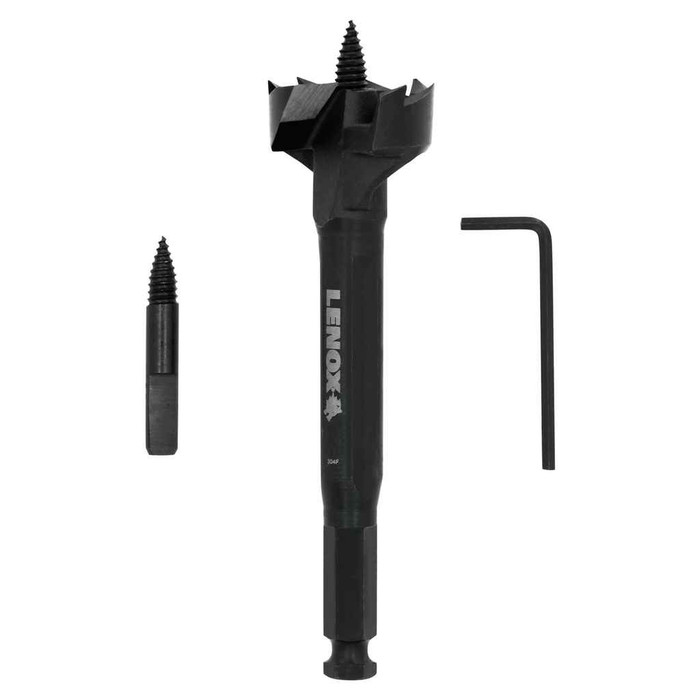

Lenox LENOX 1-1/2" Bi-Metal Self-Feed Wood Drill Bits

Lenox Wood Drill Bit Bi-Metal Self-Feed 1-1/2 Inch Impact Hex Shank

(No reviews yet) Write a Review

Model: 1787561
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$92.99
$55.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Lenox Wood Drill Bit Bi-Metal Self-Feed 1-1/2 Inch Impact Hex Shank

Professional Self-Feed Wood Drilling Tool

The Lenox Wood Drill Bit Bi-Metal Self-Feed 1-1/2 Inch delivers superior drilling performance for professional wood cutting applications. This 1-1/2 inch wood drill bit provides exceptional drilling power designed for professional contractors, electricians, and tradespeople, offering the proven performance and innovation that professionals expect from America's premier cutting tool manufacturer.

Professional Features & Benefits

Superior Drilling Performance

  • High Speed Steel Cutting Edge - Delivers superior durability in nail-embedded wood and stays sharper longer for extended professional use
  • Aggressive Lead Screw Tip - Pulls the bit through material quickly and effortlessly for fast, efficient drilling operations
  • Bi-Metal Construction - Combines flexibility and durability for demanding wood drilling applications
  • Impact Hex Shank - Allows for quick changing of bits and secure connection with impact drivers and drills

Professional Wood Cutting Applications

  • Clean Hole Production - Chamfered edge allows bit to be removed easily after drilling with minimal tear-out
  • Efficient Chip Removal - Flutes remove excess wood chips for cleaner drilling and reduced binding
  • Deep Cut Capability - Long shank cuts 4x4 lumber without extension for versatile applications

Technical Specifications

Bit Diameter: 1-1/2 inch, Product Type: Wood Drill Bits, Construction: Bi-Metal, Shank Type: Impact Hex, Length: 1.7 inches, Width: 1.7 inches, Height: 6.9 inches, Weight: 0.64 lbs, Power Source: Non-Energy Using, Product Group: Electrical

Installation & Usage

  1. Select appropriate drill or impact driver compatible with hex shank design
  2. Insert impact hex shank securely into chuck or bit holder
  3. Position bit at desired drilling location and ensure workpiece is properly secured
  4. Begin drilling at moderate speed, allowing aggressive lead screw to pull bit through material
  5. Maintain steady pressure and let the self-feed design control drilling speed
  6. Remove bit carefully using chamfered edge design for clean extraction

Professional Applications

Ideal for:

  • Electrical Work - Drilling holes for conduit, wiring, and electrical box installations in wood framing
  • Construction Framing - Creating precise holes in dimensional lumber, beams, and structural wood components
  • Plumbing Installation - Drilling access holes for pipe runs and plumbing fixtures through wood structures
  • HVAC Applications - Installing ductwork and ventilation systems requiring precise wood drilling
  • Carpentry Projects - Professional woodworking applications requiring clean, accurate holes
  • Remodeling Work - Renovation projects involving drilling through existing wood structures
  • Cabinet Installation - Creating holes for hardware, hinges, and mounting systems
  • General Construction - Versatile wood drilling for various building and construction applications

Bi-Metal Technology Advantage

Lenox's bi-metal construction combines the flexibility of carbon steel with the durability of high-speed steel cutting edges, providing optimal performance in nail-embedded wood and challenging drilling conditions while maintaining sharpness longer than standard drill bits.

Why Choose Lenox Quality?

With decades of cutting tool innovation and manufacturing excellence, Lenox delivers professional-grade wood drilling solutions trusted by contractors, electricians, and tradespeople. Every Lenox wood drill bit reflects the company's commitment to superior performance, durability, and reliability in demanding professional applications, backed by comprehensive quality standards and proven field performance.

Manufacturer Resources

Product Specs

Battery Included:
No
Power Source:
NON-ENERGY USING
Product Material Group:
METAL
Product Type:
Wood Drill Bits
Product Group:
Electrical
Product Length:
1.7 in
Product Height:
6.9 in
Product Weight:
0.64 lbs
Product Width:
1.7 in
Department:
Electrical
Product Subgroup:
Electrical

Lenox 1787561 – Frequently Asked Questions

1) Will a 1-1/2 inch Lenox self-feed bit run in an impact driver, or do I need a drill?
It has an impact hex shank, so it drops straight into an impact driver's 1/4 inch hex collet or into a drill chuck or hex bit holder. The hex shank is what lets you swap it quickly and keeps it from spinning in the chuck under the torque a 1-1/2 inch self-feed bit generates.
2) Can this bit drill all the way through a 4x4 without an extension?
Yes. The long shank on the Lenox 1-1/2 inch self-feed bit is made to cut 4x4 lumber without adding an extension. Overall the bit measures 6.9 inches on its longest dimension, which is where that depth comes from.
3) Will this bit survive hitting a nail in an old wall?
Bi-metal construction is the reason to pick it for remodel work. The body is flexible carbon steel with a high speed steel cutting edge welded on, which is what handles nail-embedded wood without the edge chipping out the way a plain steel spade or auger bit does.
4) Is a 1-1/2 inch self-feed bit big enough for running romex and conduit through studs?
A 1-1/2 inch hole is a common electrical bore for bundling cable runs or passing conduit through wood framing, and that is exactly the work this bit is built for: holes for conduit, wiring, and box installations in wood studs and joists. For smaller single-cable runs you would step down to a smaller diameter in the same self-feed family.
5) What is the difference between a self-feed bit and a hole saw for 1-1/2 inch holes in framing?
The self-feed bit has an aggressive lead screw that threads into the wood and pulls the bit through, so you supply very little push pressure and the screw controls the feed rate. Flutes clear the chips as it goes. A hole saw leaves a plug you have to knock out of the cup every hole. For repeated through-holes in studs and joists the self-feed is faster; a hole saw is the better choice when you need to cut materials other than wood.
6) What part number should I order for the Lenox 1-1/2 inch bi-metal self-feed bit?
Order Lenox MPN 1787561. That is the 1-1/2 inch diameter bi-metal self-feed wood bit with the impact hex shank.
7) Does the bit get stuck in the hole after it breaks through?
The chamfered edge is there for that. It lets the bit back out of the hole cleanly once the cut is finished, with minimal tear-out around the rim of the hole.
8) Is anything else included in the box, like a battery or an extension?
It ships as the bare bit only. No battery is included, and none is needed since the bit itself is a non-powered accessory. No extension comes with it either, though the bit is long enough to clear a 4x4 on its own.
9) How heavy is this bit, and will it throw off a cordless impact in tight joist bays?
It weighs 0.64 lbs, so it adds very little to the tool in overhead or between-joist work. The bulk of the length is the shank, 6.9 inches overall with a 1.7 inch cutting head footprint.
