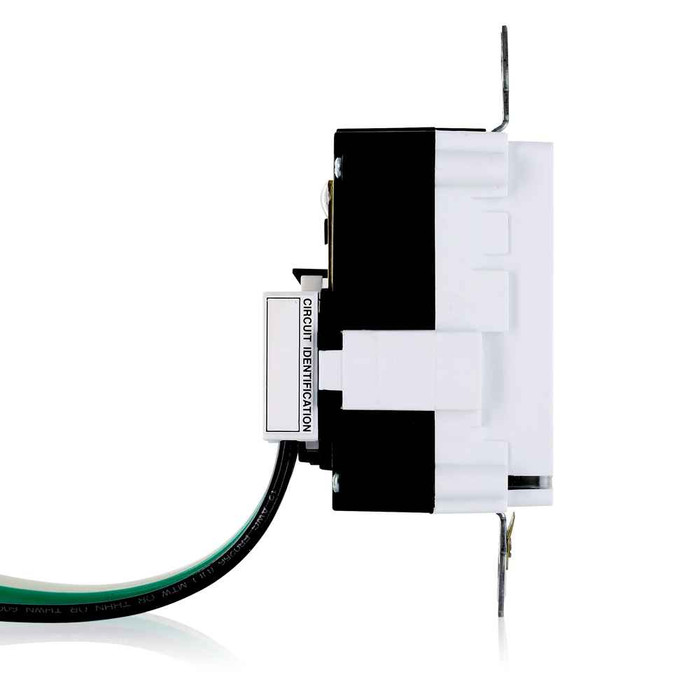

Leviton Lev-Lok Decora Plus Surge Protective Duplex Receptacle, Tamper-Resistant, 15A/125V

Leviton Lev-Lok Decora Plus Surge Protective Duplex Receptacle, Tamper-Resistant, 15A/125V

(No reviews yet) Write a Review

Model: MT528

In Stock (leaves warehouse same day if ordered before 3pm ET)

$87.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Lev-Lok Decora Plus Surge Protective Duplex Receptacle, Tamper-Resistant, 15A/125V

The Leviton Lev-Lok Decora Plus Surge Protective Duplex Receptacle is built to Commercial Specification Grade standards for demanding electrical environments. Rated 15A/125V with a NEMA 5-15R configuration, this 2-Pole, 3-Wire, self-grounding receptacle combines integrated surge suppression rated 720 Joules with a tamper-resistant design. Its modular Lev-Lok platform simplifies installation and future device swaps while delivering reliable surge protection for sensitive electronics.

Key Features

  • Integrated Surge Protection: Rated 720 Joules with Max Surge Current of L-N: 18kA, L-G: 9kA, N-G: 9kA and VPR of L-N: 600V, L-G: 700V, N-G: 600V for robust transient voltage protection.
  • Tamper-Resistant Shutters: Derlin® Acetal shutter mechanism helps prevent unauthorized insertion of foreign objects.
  • Commercial Specification Grade Construction: Polycarbonate body and Nylon face material provide durability rated V-0 per UL 94 flammability standards.
  • Self-Grounding Design: Brass Triple-Wipe line contacts, Solid Brass locking pins, and Brass-Plated Steel ground clips ensure a dependable connection.
  • Modular Lev-Lok System: Simplifies wiring and device replacement without re-terminating field wiring.
  • Diagnostic Indicator Light: Visually confirms surge protection status at a glance.
  • Noise Rejection: -30dB at 500kHz-30MHz helps reduce electrical line noise for connected equipment.
  • Operating Temperature: Rated for -10°C to 60°C ambient conditions.

Certifications & Compliance

  • UL 498 Listed (File E13399)
  • UL 1449 3rd Edition Listed (File E317603)
  • CSA C22.2 No. 42 (File E13399)
  • ANSI C-73 Compliant
  • NEMA WD-1 & WD-6
  • Leads Identified in Accordance with UL 498

Technical Specifications

  • Joules Rating: 720
  • Product Group: Outlets
  • Product Subgroup: Switches & Receptacles
  • Nom: 57
  • Pole: 2
  • list_batch: LEV-20260731
  • Listing: UL Listed, CSA

Typical Applications

  • Commercial and Office Building Wiring
  • Data Centers and IT Equipment Rooms
  • Healthcare and Institutional Facilities
  • Point-of-Sale and Retail Electronics Circuits
  • Panelboard Circuits Feeding Sensitive Electronics
  • Renovation and New Construction Projects

Why Leviton?

Leviton engineers the Lev-Lok Decora Plus Surge Protective Receptacle to Commercial Specification Grade standards, pairing a Polycarbonate body and Nylon face with brass contacts and solid brass locking pins for long-term durability. Backed by UL 498 and UL 1449 3rd Edition listings plus CSA C22.2 No. 42 certification, this Lev-Lok Decora Plus receptacle delivers code-compliant surge protection and self-grounding reliability for professional electrical installations.

Manufacturer Resources

Product Specs

Body Material:
Polycarbonate
Csa C22 2 No 42:
File E13399
Device Type:
Duplex Receptacle Outlet
Face Material:
Nylon
Ground Clips:
Brass-Plated Steel
Joules Rating:
720
Lead Identification:
Leads identified in accordance with UL 498
Line Contacts:
Brass Triple-Wipe
Locking Pins:
Solid Brass
Max Surge Current:
L-N: 18kA, L-G: 9kA, N-G: 9kA
Noise Rejection:
-30dB at 500kHz-30MHz
Operating Temperature:
-10°C to 60°C
Product Id:
Ratings are permanently marked on device
Strap Material:
Zinc-Plated Steel
Tamper Resistant Shutter Mechanism:
Derlin® Acetal
Ul 1449 3rd Edition:
File E317603
Ul 498:
File E13399
Product Group:
Outlets
Department:
Electrical
Product Subgroup:
Switches & Receptacles
Amperage Rating:
15 A
Ansi:
C-73
Diagnostics:
Indicator Light
Feature:
Tamper-Resistant
Flammability:
Rated V-0 per UL 94
Frequency:
50/60Hz
Grade:
Commercial Specification Grade
Grounding:
Self-Grounding
Nema:
WD-1 & WD-6
Nom:
57
Pole:
2
Sccr:
5000A
Termination:
Modular
Vpr:
L-N: 600V, L-G: 700V, N-G: 600V
Series:
Lev-Lok Decora Plus
Product Voltage:
125 VAC
Product Function:
Surge Protective
Product Material:
Polycarbonate
Product Type:
Receptacle
Listing:
UL Listed, CSA
Standards:
ANSI C-73
Flammability Class:
Rated V-0 Per UL 94
Country of Origin:
Mexico
Warranty Length:
10 years
