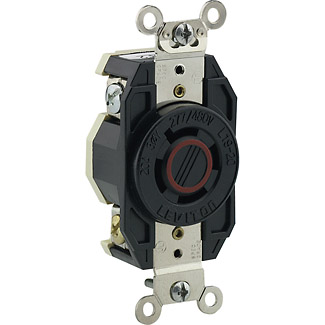

Leviton 2450 Industrial Grade 4-Wire 4-Pole Single Locking Receptacle, 277/480V Y AC, 20A
The Leviton 2450 is an Industrial Grade Single Locking Receptacle engineered for demanding power distribution applications. Configured as a 4-wire, 4-pole device, it is rated for 277/480V Y AC at 20A, making it well suited for connecting industrial equipment, machinery, and power distribution circuits that require a secure, locking connection. Built to Leviton's industrial-grade standard, this receptacle delivers dependable performance in demanding commercial and industrial electrical environments.
Key Features
- 4-Wire, 4-Pole Configuration: Provides a dedicated conductor path for each pole, supporting reliable multi-phase power connections.
- Locking Mechanism: Single locking receptacle design helps prevent accidental disconnection under load in industrial settings.
- Voltage & Current Rating: Rated 277/480V Y AC at 20A for demanding industrial and commercial power distribution circuits.
- Industrial Grade Construction: Built to withstand the rigors of heavy-duty commercial and industrial environments.
- Single Receptacle Format: Dedicated single-outlet design for connecting specific equipment or machinery loads.
Technical Specifications
- Configuration: 4-Wire, 4-Pole
- Voltage Rating: 277/480V Y AC
- Current Rating: 20A
- Grade: Industrial Grade
- Receptacle Type: Single Locking Receptacle
- List Batch: LEV-20260730
Typical Applications
- Industrial and Commercial Power Distribution
- Heavy Machinery and Equipment Connections
- Panelboard and Load Center Power Feeds
- Generator and Temporary Power Hookups
- Industrial Renovation and New Construction Projects
Why Leviton?
Leviton's Industrial Grade construction reflects a commitment to durable, dependable electrical components built for the demands of professional and industrial installations. The 2450 Single Locking Receptacle's 4-wire, 4-pole configuration and 277/480V Y AC, 20A rating make it a reliable choice for electricians and facility managers who need consistent, code-compliant performance from their power distribution hardware. Choose Leviton for industrial-grade electrical components trusted on demanding job sites.
Manufacturer Resources
Product Specs
- Product Type:
- Locking Receptacle
- Connection Type:
- Locking
- Amperage Rating:
- 20A
- Poles:
- 4
- Nema Rating:
- L19-20R
- Grade:
- Industrial
- Product Color:
- Black
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Receptacles & Outlets
Leviton LEV-2450 – Frequently Asked Questions
1) I need a 20A twistlock for a 240V single-phase generator feed. Is the Leviton 2450 the right part?
No. The 2450 is a 277/480V three-phase wye device in an L19-20R pattern. For a 240V single-phase generator or transfer switch inlet at 20A, the usual pattern is L14-20, and we carry the Eaton L14-20 locking receptacle for that.
2) Is the Leviton 2450 rated for a machine shop or plant floor, or is it a commercial-grade device?
Industrial grade. The 2450 carries Leviton's Industrial Grade rating, which is the heavier spec used for machinery feeds, panel and load center hookups, and generator or temporary power connections. By contrast, the Eaton L14-20 and Eaton L1-15 locking receptacles we carry are listed as Commercial grade.
3) Is the Leviton 2450 a flush-mount receptacle or does it have a mounting flange for surface boxes?
The 2450 is a single locking receptacle body, not a flanged inlet or outlet assembly. If you need a flanged device for a surface-mounted enclosure, look at a flanged version instead, such as the Bryant 71020ER 7 Series flanged locking receptacle we stock.
4) I need a locking receptacle that mounts to a flanged box on the equipment itself, not in a wall plate. Is the Leviton 2450 the right style?
The Leviton 2450 is a single locking receptacle intended for standard device mounting. For a flange-mounted outlet that fastens to an equipment enclosure or a surface box, the Bryant 71020ER is a flanged locking receptacle in Bryant's 7 Series. Confirm the flanged device's configuration matches the plug you are landing before ordering, since the 2450 itself is an L19-20R four-pole pattern.
5) How does the construction grade of the Leviton 2450 compare with the Eaton locking receptacles?
The Leviton 2450 is built to industrial grade. The Eaton 7540 L1-15 receptacle and the Eaton L14-20-R are both listed as commercial grade. For facilities standardizing on one grade of wiring device across a plant floor, that distinction is the one to check on the submittal, along with the configuration, since the three devices use three different blade patterns.
6) What color is the Leviton 2450 and does it come in other finishes?
Black, and that is the only version of the 2450 built. It is ordered as a single model, part number 2450, with no color or configuration options to specify.
7) Will the Leviton 2450 hold the plug in under vibration from running machinery?
That is the point of the locking design. The plug inserts and twists to engage, so the blades stay captive and the connection does not shake loose under load, which is why it gets specified for heavy machinery and equipment connections rather than a straight-blade receptacle.
