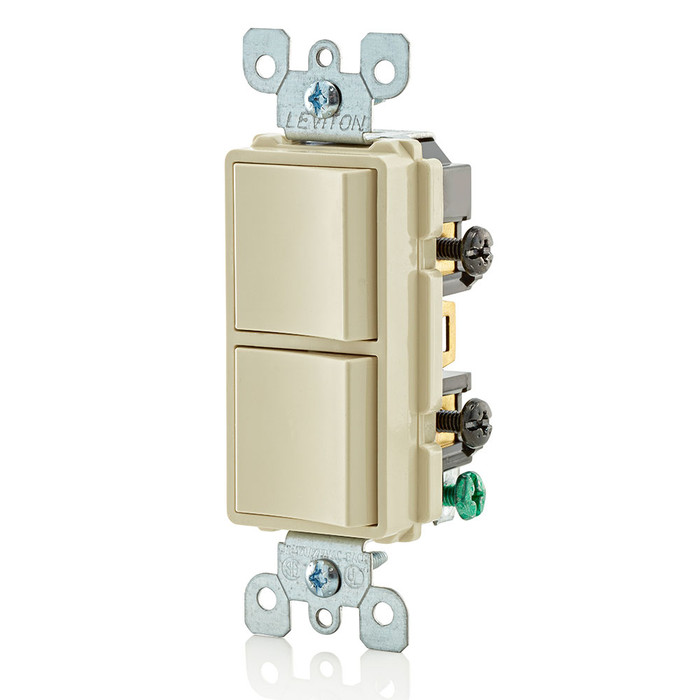

Leviton 120/277-Volt 15-Amp (2) 1-Pole Commercial Grade AC Combination Switch, Ivory Decora®

Leviton 120/277-Volt 15-Amp (2) 1-Pole Commercial Grade AC Combination Switch, Ivory Decora®

(No reviews yet) Write a Review

Model: 5634-W
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$16.62
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton 120/277-Volt 15-Amp (2) 1-Pole Commercial Grade AC Combination Switch, Ivory Decora®

The Leviton Combination Switch pairs (2) independent 1-Pole switches inside a single Decora® device, finished in Ivory, giving electricians and facility managers independent control of two separate lighting or equipment circuits from one wallbox location. Rated 120/277-Volt and 15-Amp, this AC-only combination switch is built to commercial-grade standards for demanding, high-cycle use in offices, retail spaces, restaurants, and multi-tenant buildings. The space-saving combination format reduces the number of gangs required in a wallbox, streamlining installations where two independent switch legs are needed without adding a second device opening. Its Decora® rocker profile keeps the finished look clean and modern in Ivory while still delivering the dual-circuit function commercial jobs require.

Key Features

  • Electrical Rating: 120/277-Volt, 15-Amp rating supports a wide range of commercial lighting and general-purpose equipment circuits.
  • (2) 1-Pole Combination Design: Two independent 1-Pole switches housed in a single Decora® device for dual-circuit control from one gang location.
  • Commercial Grade Construction: Built to commercial-grade standards for durability under frequent switching and daily commercial-duty use.
  • AC Combination Switch: AC-only operation engineered for standard lighting and general-purpose switching applications.
  • Decora® Styling in Ivory: Sleek, modern Decora® rocker profile in Ivory that coordinates with the broader Leviton Decora device, dimmer, and wallplate line.
  • Space-Saving Format: Combines two independent switch functions into a single device opening, reducing gang box space requirements and simplifying multi-circuit wiring layouts.
  • Independent Circuit Control: Each 1-Pole switch operates its own circuit leg, ideal for controlling split lighting zones, fan and light combinations, or two separate loads from a single location.

Technical Specifications

  • Amperage: 15A
  • Poles: 1
  • Product Color: Ivory

Typical Applications

  • Commercial and Office Lighting Control
  • Multi-Circuit Switching from a Single Wallbox Location
  • Retail, Hospitality, and Restaurant Lighting Installations
  • Split Lighting Zones and Fan/Light Combination Control
  • Renovation and Retrofit Wiring Projects
  • New Construction Commercial Electrical Systems

Why Leviton?

Leviton is a trusted name in commercial-grade wiring devices, and the Decora® Combination Switch reflects that reputation with a dual-circuit design built for reliable, code-compliant performance in demanding commercial environments. Choosing a Leviton Decora® combination switch in Ivory means dependable 120/277-Volt, 15-Amp dual-circuit control backed by commercial-grade construction suited for offices, retail spaces, and other professional electrical installations where space and reliability both matter.

Manufacturer Resources

Technical Information

Product Specs

Product Type:
Combination Switch
Amperage Rating:
15A
Voltage Rating:
120/277V
Poles:
1
Grade:
Commercial
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Combination Devices

Leviton 5634-W – Frequently Asked Questions

1) Will a Leviton 5634 combination switch control two separate lighting circuits from one gang?
That is exactly what the 5634 does. It houses two independent 1-Pole switches in a single Decora device, so each rocker runs its own switch leg out of one wallbox opening. Split lighting zones, a fan on one side and a light on the other, or two separate loads in the same room all work from a single gang. It is a single-pole device on each half, so neither rocker can be used as a three-way from a second location.
2) Can the Leviton 5634 switch be used on a 277-volt commercial lighting circuit?
Yes, the 5634 is rated 120/277 volts AC at 15 amps, so it works on both standard 120V branch circuits and the 277V lighting circuits common in offices, retail, and warehouse space fed from a 480/277 system. It is an AC-only device, so do not use it on DC loads.
3) Do I need a two-gang box for a Leviton 5634 combination switch?
No. The 5634 puts both switches into one Decora device body, so it drops into a single gang opening and takes a single-gang Decora wallplate. That is the reason to choose it over two separate switches: you get two switch legs without cutting in a second device opening, which matters on a retrofit where the existing box is already single gang. You still need enough box volume for the extra conductors.
4) Can a Leviton 5634 be wired as a three-way to switch lights from two doorways?
No. Both switches in the 5634 are 1-Pole, which means each one controls its load from a single location only. For a light controlled from two doorways you need a pair of three-way switches instead, one at each location. A combination device like this one is for two separate loads at one spot, not one load at two spots.
5) What colors does the Leviton 5634 Decora combination switch come in, and what are the part numbers?
Four colors, each its own catalog number: Ivory is 5634-I, White is 5634-W, Light Almond is 5634-T, and Black is 5634-E. Pick the one that matches the devices already on the wall, since Decora wallplates are ordered separately and the plate color has to be specified to match.
6) Is a commercial grade switch worth it over a residential grade one for an office or restaurant?
For anything switched many times a day, yes. The 5634 is built to commercial grade, which is the tier above residential specification grade and is what belongs in offices, retail floors, restaurants, and multi-tenant common areas where the same rocker gets hit dozens of times daily. It is also the only tier that gives you the 277V rating a commercial lighting circuit needs; residential grade devices are 120V only.
7) Should I use a combination switch or two single switches in a two-gang box?
Use the combination device when the wall or the existing box will not give you a second gang, or when you want to keep the opening small in a finished space. Two separate single-pole switches in a two-gang box give you larger, easier to hit paddles and more wiring room, and let you swap one half later for a dimmer or occupancy sensor. The 5634 is the right call on a retrofit into an existing single-gang box; two devices are easier where the box is being roughed in new and space is not tight.
8) Will a Decora combination switch match the other Decora devices and wallplates already in the building?
Yes, on look and on plate. The 5634 uses the standard Decora rocker profile and opening, so it sits behind the same Decora wallplates as the receptacles, dimmers, and single switches from that line, and the four color choices (Ivory, White, Light Almond, Black) line up with the usual Decora color range. For a property manager standardizing a building, order the color already on the other openings, since the device color is fixed per catalog number and is not field changeable.
9) Can one half of a Leviton 5634 switch a fan and the other half the light?
Yes. Each half is a separate 1-Pole switch on its own circuit leg, so a bathroom or break room fan on one rocker and the light fixture on the other is a standard use of the device. The two halves are independent, so they can be fed from the same hot or from two different circuits.
