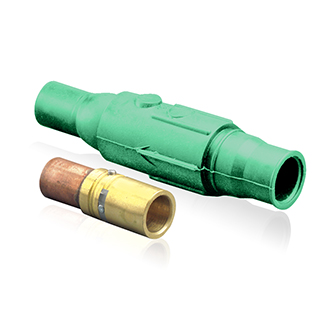

Leviton Ball Nose In-Line Latching Female Cam-Type Connector, Brass Contact

Leviton Ball Nose In-Line Latching Female Cam-Type Connector, Brass Contact

(No reviews yet) Write a Review

Model: 22L24-G

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Ball Nose In-Line Latching Female Cam-Type Connector, Brass Contact

The Leviton is a Ball Nose In-Line Latching Female Cam-Type Connector built on the 22 Series single-pole cam-type contact & insulator platform. Configured for crimped termination on 250-350MCM cable, this connector carries a 690 Amp max rating and ships in green for fast circuit identification, with G and R configuration options also available. It's engineered for professionals who need a secure, high-amperage latching connection for portable and temporary power runs.

Key Features

  • Cam-Type Configuration: 22 Series single-pole cam-type contact and insulator design for fast, secure male-to-female mating.
  • Ball Nose In-Line Latching Design: Female latching connector body allows quick in-line coupling and dependable retention under load.
  • Crimped Termination: Crimped connection method sized for 250-350MCM cable delivers a low-resistance, mechanically sound termination.
  • High Amperage Rating: Rated up to 690 Amp max, supporting heavy-duty power distribution and feeder applications.
  • Single Pole Configuration: Single-pole design suited for dedicated phase, neutral, or ground runs in temporary power setups.
  • Brass Contact: Brass contact material provides durable, reliable conductivity across repeated connect/disconnect cycles.
  • Color-Coded Green: Green housing supports quick visual phase identification on the job site; additional configuration options include G and R.

Technical Specifications

  • Amperage: 690A Max
  • Poles: Single
  • Cable Range: 250-350MCM
  • Termination: Crimped
  • Color: Green
  • Configuration Options: G, R
  • list_batch: LEV-VARMACHINE-20260803

Typical Applications

  • Portable and Temporary Power Distribution
  • Generator and Load Bank Connections
  • Entertainment, Broadcast, and Event Power Feeds
  • Industrial and Commercial Feeder Cable Connections
  • Construction Site Power Setups

Why Leviton?

Leviton cam-type connectors pair a brass contact with a crimped 250-350MCM termination to deliver a dependable, high-amperage connection rated to 690A max. The single-pole, ball nose in-line latching design makes the a practical choice for electrical professionals who need fast, secure power connections for demanding temporary and portable power applications.

Manufacturer Resources

Product Specs

Amperage Rating:
690A
Poles:
Single
Product Type:
Cam-Type Connector
Product Material:
Brass
Connection Type:
Crimped
Department:
Electrical
Product Group:
Wiring Devices
Max. Voltage:
600 volts
Contact Material:
Brass
Max. Current:
690 amperes
Gender:
Female
