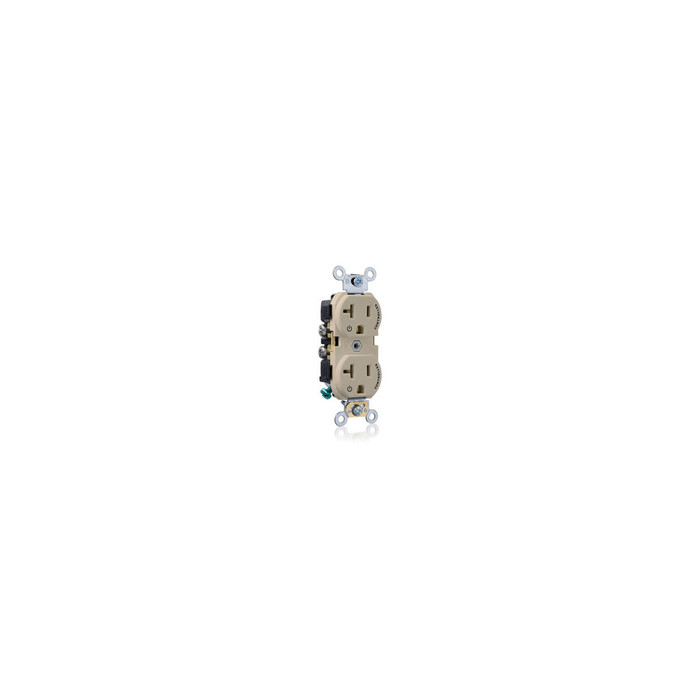

Leviton CR020-2PI Commercial Specification Grade Decora Plus Duplex Receptacle, 20A 125V Ivory

Leviton CR020-2PI Commercial Specification Grade Decora Plus Duplex Receptacle, 20A 125V Ivory

(No reviews yet) Write a Review

Model: CR020-2PI

In Stock (leaves warehouse same day if ordered before 3pm ET)

$13.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton CR020-2PI Commercial Specification Grade Decora Plus Duplex Receptacle, Ivory

The Leviton CR020-2PI is a Commercial Specification Grade smooth face, non-tamper-resistant duplex straight blade receptacle built for demanding wiring installations that require dependable, code-compliant performance. Configured as a 2-Pole, 3-Wire device rated for 20-Amp, 125-Volt service, this Decora Plus receptacle carries the NEMA 5-20R configuration and is finished in Ivory to blend cleanly into commercial and light-industrial interiors. As a Specification Grade product, the CR020-2PI is engineered for higher-traffic environments where receptacles see frequent plug insertions and removals, offering the durability and consistent contact performance that facility managers, electrical contractors, and property owners expect from a Leviton device.

Key Features

  • Amperage Rating: 20-Amp rated for standard and heavier-duty commercial circuits.
  • Voltage Rating: 125-Volt operation matching NEMA 5-20R configuration for standard grounded plugs.
  • Configuration: Duplex, 2-Pole 3-Wire straight blade design provides two independent grounded outlets on a single device.
  • Commercial Specification Grade: Built to Specification Grade standards for enhanced durability, reliable contact retention, and long service life in commercial applications.
  • Smooth Face Design: Non-tamper-resistant smooth face styling for a clean, low-profile appearance suited to commercial and light-industrial settings.
  • Decora Plus Styling: Part of the Leviton Decora Plus line, offering a modern receptacle profile compatible with Decora-style wallplates.
  • Finish: Ivory color finish for coordinated aesthetics in office, retail, and commercial interiors.

Technical Specifications

  • Product Type: Duplex Receptacle
  • Configuration: 2-Pole, 3-Wire, NEMA 5-20R
  • Amperage: 20-Amp
  • Voltage: 125-Volt
  • Color: Ivory
  • Grade: Commercial Specification Grade
  • Face Style: Smooth Face, Non-Tamper-Resistant
  • Series: Decora Plus

Typical Applications

  • Commercial Office and Retail Electrical Installations
  • Light-Industrial and Institutional Wiring Projects
  • New Construction and Renovation Electrical Upgrades
  • General-Purpose 20-Amp Receptacle Replacement
  • Decora-Style Wallplate Coordinated Installations

Why Leviton?

Leviton's Commercial Specification Grade devices are engineered for the demands of professional electrical work, and the CR020-2PI Decora Plus duplex receptacle is no exception. With its 2-Pole 3-Wire, 20-Amp, 125-Volt NEMA 5-20R configuration and Specification Grade construction, this receptacle delivers the consistent, dependable connection performance that electrical contractors rely on for commercial installations. Choose the Leviton CR020-2PI for a smooth face, Ivory-finished receptacle that pairs code-focused engineering with clean Decora Plus styling.

Manufacturer Resources

Product Specs

list_batch:
LEV-20260924
Product Type:
Duplex Receptacle
Configuration:
Duplex, 2-Pole 3-Wire
Voltage Rating:
125V
Amperage Rating:
20A
Grade:
Commercial Specification Grade
Department:
Electrical
Product Subgroup:
Receptacles & Outlets
Product Color:
Ivory
Product Group:
Wiring Devices

Leviton CR020-2PI – Frequently Asked Questions

1) Will the Leviton CR020-2PI accept both 15-amp and 20-amp plugs?
Yes. The CR020-2PI is a NEMA 5-20R straight blade duplex, so it takes standard 15A parallel-blade cords as well as 20A plugs with the T-shaped neutral blade. That is why 5-20R devices get specified for copiers, floor buffers, kitchen counters and shop benches where a 20A cord may show up.
2) Can I use a standard toggle wallplate on the Leviton CR020-2PI Decora Plus receptacle?
No. The CR020-2PI is a Decora Plus device, so it needs a Decora/decorator style wallplate with the large rectangular opening. A duplex plate with two round cutouts will not fit over it. If the rest of the openings in the space are standard duplex, plan on changing those plates or the wall will look mismatched.
3) Is the Leviton CR020-2PI tamper resistant, and can I use it in a school or daycare?
It is not tamper resistant. The CR020-2PI is a smooth face, non-TR device. For dwelling-unit areas and the child-occupied spaces where tamper-resistant receptacles are called for, you need a TR-rated version instead. For commercial office, retail and light-industrial areas, non-TR is the normal specification.
4) Can I put this 20A receptacle on a 15-amp circuit?
No. A 20A receptacle like the CR020-2PI belongs on a 20A branch circuit with 12 AWG conductors. On a 15A breaker with 14 AWG wire you would be inviting a 20A cord onto an undersized circuit. If the circuit is 15A, use a 5-15R device instead.
5) What is the difference between Commercial Specification Grade and a residential receptacle?
Specification Grade, which is what the CR020-2PI is built to, means heavier contact construction and better blade retention for openings that see constant plugging and unplugging. A residential-grade device in a breakroom or copy room loosens up and stops holding a cord. That is the reason facility and MRO buyers standardize on spec grade across a building.
6) How many wires does the Leviton CR020-2PI take?
Three: hot, neutral and equipment ground. It is a 2-pole, 3-wire grounding duplex on a 125V circuit, so a standard 20A branch circuit with a ground conductor is all it needs. It gives you two grounded outlets on the one strap.
7) Is Leviton CR020-2PI ivory the same color as white?
No, ivory is a warmer off-cream tone and it will read differently next to white devices and plates. The CR020-2PI is an ivory finish, so match it to existing ivory receptacles, switches and wallplates on the floor rather than mixing it into a white run.
8) What is the exact part number to order the ivory 20A Decora Plus duplex?
Leviton manufacturer part number CR020-2PI. The CR suffix family is the Commercial Specification Grade Decora Plus line; the 2PI designates the ivory, 20A 125V smooth face duplex.
