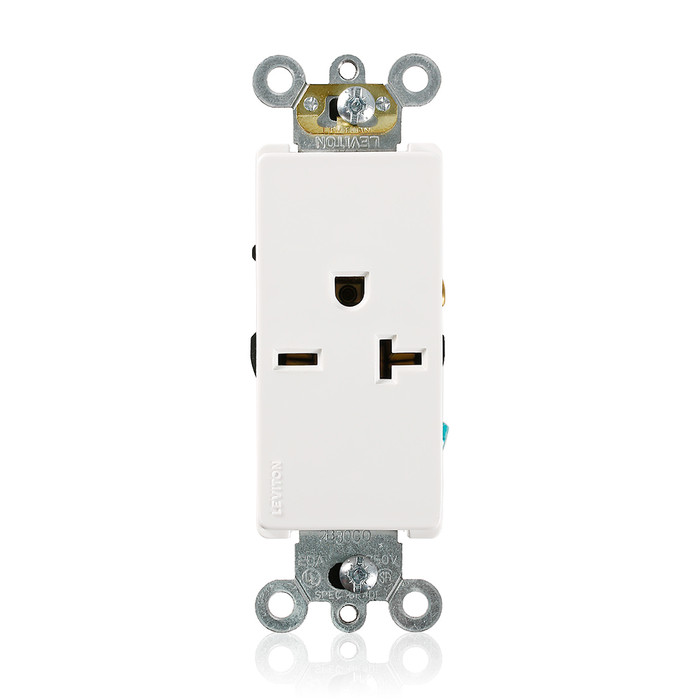

Leviton Commercial Grade Heavy-Duty Impact-Resistant Straight Blade Receptacle

Leviton Commercial Grade Heavy-Duty Impact-Resistant Straight Blade Receptacle

(No reviews yet) Write a Review

Model: 16251-W
$9.50

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Commercial Grade Heavy-Duty Impact-Resistant Straight Blade Receptacle

The Leviton Commercial Grade Heavy-Duty Impact-Resistant Straight Blade Receptacle is engineered for demanding commercial and industrial power applications. Built to commercial grade specifications, this straight blade receptacle is available in 15A and 20A amperage configurations, 125V and 250V voltage options, and NEMA 5-15R or NEMA 6-20R configurations to match a wide range of plug types. Finished in white, it delivers rugged, impact-resistant performance for everyday professional electrical work.

Key Features

  • Amperage Options: Available in 15A and 20A ratings to suit a variety of circuit and load demands.
  • Voltage Options: Configured for 125V or 250V applications depending on the selected variant.
  • NEMA Configuration: Offered in NEMA 5-15R and NEMA 6-20R configurations for precise plug compatibility.
  • Durable Construction: Heavy-duty, impact-resistant housing designed to withstand rigorous commercial and industrial use.
  • Commercial Grade: Meets commercial grade standards for reliable performance in professional installations.
  • Straight Blade Design: Single straight blade receptacle configuration for standard plug connections.
  • Finish: Clean white finish suited to a wide range of installation environments.

Technical Specifications

  • Grade: Commercial
  • Amperage: 20A, 15A
  • Voltage: 250V, 125V
  • NEMA Rating: 6-20R, 5-15R
  • list_batch: LEV-20260731

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Power Distribution for Heavy-Duty Equipment and Machinery
  • Renovation and New Construction Wiring Projects
  • General Purpose and Specialty Circuit Applications
  • Facilities Requiring Impact-Resistant, Commercial Grade Devices

Why Leviton?

Leviton's commercial grade, heavy-duty, impact-resistant construction is built to perform reliably in the toughest professional electrical environments. With flexible amperage, voltage, and NEMA configuration options, this straight blade receptacle gives contractors and facility managers a dependable, code-compliant solution for a wide range of power distribution needs.

Manufacturer Resources

Product Specs

Product Type:
Duplex Receptacle
Grade:
Commercial
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Leviton 16251-W – Frequently Asked Questions

1) What is the difference between the Leviton 16251-W and 16441-W receptacles?
They are two different power configurations of the same commercial grade Leviton straight blade receptacle. The 16251-W is 15A, 125V, NEMA 5-15R, which is the standard general purpose outlet used for ordinary 120V plugs. The 16441-W is 20A, 250V, NEMA 6-20R, a two-pole 240V outlet for equipment like compressors, welders, or shop machinery. The blade patterns are not interchangeable, so the choice depends entirely on the circuit and the equipment plug.
2) Will a standard 120V appliance plug fit the Leviton 16441-W receptacle?
No. The 16441-W is a NEMA 6-20R, 250V device, and a standard 125V NEMA 5-15P cord cap will not enter it. The blade orientation on a 6-20R is different by design so 240V outlets cannot accept 120V equipment. For ordinary 120V loads use the 15A, 125V NEMA 5-15R version, model 16251-W.
3) Which Leviton receptacle do I use for a 240V shop tool or piece of machinery?
The 16441-W, rated 20A at 250V in a NEMA 6-20R pattern. That is the two-pole, three-wire configuration used for 240V equipment on a 20A circuit, such as small compressors, heaters, and shop machinery. It needs a two-pole breaker and both hot legs pulled to the box; there is no neutral in a 6-20R.
4) Can I use the Leviton 16251-W 15A receptacle on a 20 amp branch circuit?
Yes. A 15A, 125V NEMA 5-15R receptacle is permitted on a 20A branch circuit when more than one receptacle is on that circuit, which is the normal case in commercial general purpose wiring. A single receptacle on an individual 20A circuit has to be rated 20A. The 16251-W is the 15A, 125V, 5-15R configuration.
5) Is a commercial grade receptacle worth it over a residential grade device for an office or retail build-out?
For anything with regular plug-in traffic, yes. The Leviton straight blade receptacle is built to commercial grade with a heavy-duty, impact-resistant housing, which is what holds up in offices, retail, schools, and industrial spaces where cords get pulled and devices take knocks. Residential grade parts are built for far lower cycle counts. Commercial grade is also the usual minimum called out on commercial drawings.
6) Do I need to order wall plates separately for the Leviton 16251-W receptacle?
Plan on it. The receptacle is sold as the device itself, so the cover plate is a separate line item. The 15A 5-15R takes a standard duplex opening plate; the 20A 6-20R is a single-outlet device and needs a matching single-receptacle plate, not a duplex one. Order plates in white to match the devices.
7) Can these Leviton receptacles be used on a renovation where I am replacing old outlets?
Yes, this is a standard device replacement. The commercial grade straight blade receptacle is called out for renovation and new construction wiring alike. Match the replacement to the existing circuit: swap a 120V general purpose outlet with the 15A 125V 5-15R (16251-W), and a 240V outlet only where the existing circuit is genuinely 250V, 20A, 6-20R (16441-W). Never fit the 6-20R to a 120V circuit.
8) What color are these Leviton commercial receptacles?
White only. Both configurations, the 15A 5-15R and the 20A 6-20R, are supplied in white, so a facility standardizing on white devices and white wall plates can mix both power types across the building and keep the finish consistent.
