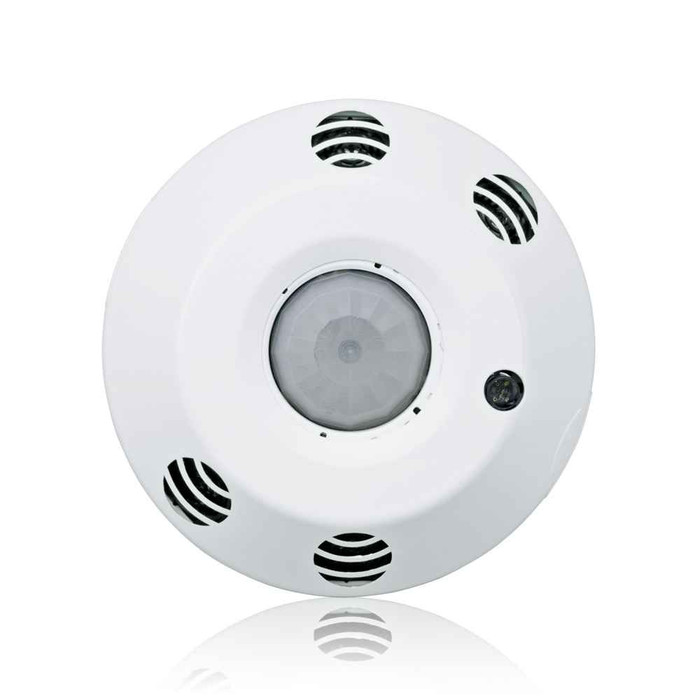

Leviton Ceiling Mount PIR Room Controller, 2-Zone 0-10V Dimming

Leviton Ceiling Mount PIR Room Controller, 2-Zone 0-10V Dimming

The Leviton is an indoor, line voltage, low profile, ceiling mount Room Controller built around passive infrared (PIR) occupancy sensing for automated lighting control. Designed for 2-zone spaces covering 450-1500 sq ft, this Room Controller pairs 2 relays with (2) 0-10V DC sinking control signals to drive dimming ballasts or LED drivers, operating on 120-277V AC line voltage. Both lenses are included in the box, giving installers everything needed to commission a two-zone PIR sensing solution without sourcing extra accessories.

Key Features

• Coverage Area: Engineered for 450-1500 sq ft spaces, matching typical office, classroom, and conference room footprints.
• 2-Zone Control: Independently manages two lighting zones from a single low profile, ceiling mounted Room Controller.
• PIR Occupancy Sensing: Passive infrared detection automatically triggers lighting response based on occupant presence, supporting energy savings.
• Dual 0-10V DC Sinking Signal: (2) 0-10V DC sinking control signals interface directly with dimming ballasts or LED drivers for smooth, code-friendly dimming.
• 2 Relays: Dedicated relay switching for each zone enables flexible on/off and dimming control strategies.
• Line Voltage Operation: Rated for 120-277V AC, suitable for standard commercial lighting circuits.
• Both Lenses Included: Ships complete with both PIR lenses so the controller is ready to install and commission out of the box.
• Low Profile Ceiling Mount: Compact, ceiling mounted housing keeps the sensor unobtrusive in finished spaces.

Technical Specifications

• Mounting: Ceiling Mount
• Sensor Type: Passive Infrared (PIR)
• Zones: 2 Zone
• Coverage: 450-1500 sq ft
• Control Signal: (2) 0-10V DC Sinking Control Signal
• Compatible Loads: Dimming Ballast or LED Driver
• Relays: 2 Relays
• Voltage: 120-277V AC
• Available Models: O6C20-MDW, O5C04-IDW, O6C04-IDW
• list_batch: LEV-VARMACHINE-20260803

Typical Applications

• Commercial Offices and Open Work Areas
• Classrooms and Training Rooms
• Conference Rooms and Meeting Spaces
• Corridors and Common Areas
• Two-Zone Lighting Retrofits with Dimming Ballasts or LED Drivers
• New Construction and Renovation Lighting Control Upgrades

Why Leviton?

Leviton engineers this Room Controller to deliver reliable, occupancy-based lighting control for professional installations, combining dual-zone relay switching with 0-10V DC sinking signals for precise compatibility with dimming ballasts and LED drivers. The low profile, ceiling mount design and included lenses simplify specification and installation, helping contractors deliver consistent, code-friendly lighting control performance across commercial spaces.
