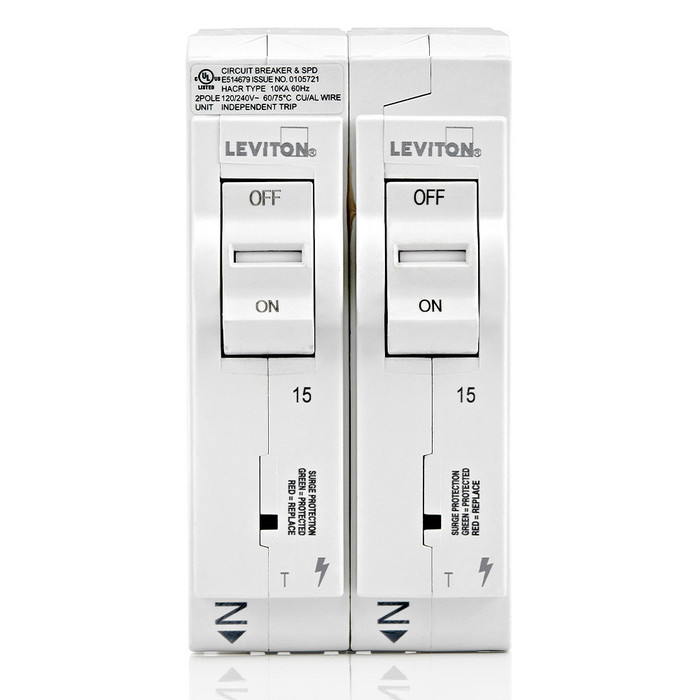

Leviton Plug-On Mount Surge Protective Device & Circuit Breaker, 2-Pole, 15A

Leviton Plug-On Mount Surge Protective Device & Circuit Breaker, 2-Pole, 15A

(No reviews yet) Write a Review

Model: LSPD2-T

In Stock (leaves warehouse same day if ordered before 3pm ET)

$156.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Plug-On Mount Surge Protective Device & Circuit Breaker, 2-Pole, 15A

The Leviton Plug-On Mount Surge Protective Device & Circuit Breaker combines transient surge suppression with standard overcurrent protection in a single panel-mounted unit. Configured as a 2-Pole, 15-Amp device rated for 120/240-Volt AC systems, it installs directly into compatible load centers using a plug-on connection, eliminating extra wiring steps. This combination device is designed to protect downstream branch circuits from voltage transients while still delivering the circuit-breaking function required for code-compliant panel protection.

Key Features

  • Plug-On Mount: Installs directly onto compatible panelboard bus bars for a fast, tool-minimal connection.
  • 2-Pole Configuration: Provides two-pole circuit protection suited for 120/240-Volt AC branch circuits.
  • 15-Amp Rating: Sized for 15-Amp circuits, matching common branch-circuit load requirements.
  • 120/240-Volt AC: Rated for standard residential and light commercial panel voltage systems.
  • Combination Surge Protection: Integrates surge protective device functionality with circuit breaker operation in one unit, reducing the need for a separate SPD module.
  • Panel-Ready Design: Engineered to fit into panelboards designed for plug-on breaker and SPD accessories, simplifying retrofit or new installation.

Technical Specifications

  • Poles: 2
  • list_batch: LEV-VARMACHINE-20260803

Typical Applications

  • Residential and Light Commercial Panelboards
  • Branch Circuit Overcurrent Protection
  • Whole-Panel Surge Protection Retrofits
  • New Construction Electrical Panel Installations
  • Load Center Upgrades Requiring Combined SPD and Breaker Function

Why Leviton?

Leviton engineers panel protection devices that combine surge suppression and overcurrent protection into a single, panel-ready component, helping electricians streamline installations without sacrificing circuit protection. The plug-on mounting format is built for straightforward integration into compatible load centers, supporting reliable, code-compliant performance for professional electrical work. Choosing Leviton for combination SPD and circuit breaker needs means consistent 2-Pole, 15-Amp, 120/240-Volt AC performance from a recognized electrical manufacturer.

Manufacturer Resources

Product Specs

Poles:
2
Voltage Rating:
120/240V
Product Type:
Surge Protective Device
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Shop All Leviton

Leviton LSPD2-T – Frequently Asked Questions

1) Does the Leviton LSPD surge protective device replace a breaker in the panel, or does it need its own separate breaker?
It replaces a breaker. The Leviton plug-on SPD is a combination unit: surge suppression and a 2-pole, 15A circuit breaker in one body, so it takes a two-space plug-on position on the bus and still provides the overcurrent protection for that circuit. You don't need to add a separate SPD module alongside a breaker.
2) Will the Leviton LSPD1-T plug-on surge device fit any load center?
No. It mounts by plugging directly onto the panelboard bus, so the panel has to be one that accepts plug-on breakers and SPD accessories of this style. A panel using bolt-on breakers or a different bus pattern won't take it. Check the load center's accepted breaker type before ordering.
3) What voltage system is the Leviton 2-pole plug-on SPD rated for?
120/240V AC, which is the standard single-phase residential and light commercial panel supply. Across both poles it lands on a 240V two-pole position and protects the 120V branch circuits fed from that panel. It is not a device for a 208Y/120V three-phase service.
4) What is the closest equivalent to the Leviton LSPD1-T plug-on surge device from another brand?
The Eaton BRNSURGE10 is the nearest peer: it is a two-pole surge protective device in Eaton's BR Series, so it mounts into BR-style load centers rather than the panels the Leviton plug-on unit is built for. Both are two-pole panel-mounted surge devices; the Leviton LSPD1-T and LSPD2-T are rated 120/240V AC and combine surge suppression with circuit breaker overcurrent protection in the same unit, while the Eaton BRNSURGE10 is described as a surge protective device. Match the device to the panel bus you actually have before ordering either.
5) Which model do I order, LSPD1-T or LSPD2-T?
Leviton builds the plug-on combination SPD in two model numbers, LSPD1-T and LSPD2-T. Both are the 2-pole, 15A, 120/240V AC plug-on configuration, so pick the one that matches the model called out on your panel schedule or the unit you are replacing.
6) What's the difference between the Leviton plug-on SPD and the Eaton BRNSURGE10?
The Eaton BRNSURGE10 is a two-pole surge protective device for BR Series load centers, so it is matched to Eaton BR panels specifically. The Leviton unit differs in what it does as well as where it fits: it combines the surge suppression with a 15A, 120/240V AC circuit breaker in the same two-pole plug-on body, so it protects a branch circuit at the same time.
7) Can I add this Leviton SPD to an existing panel as a retrofit, or is it new-construction only?
Both work. Because it plugs onto the bus like a breaker, it goes into an existing load center as a retrofit as readily as into a new panel install, provided the panel accepts plug-on devices. Typical uses are whole-panel surge retrofits, load center upgrades, and new panel builds.
8) Can I run a 20-amp branch circuit off this Leviton combination breaker?
No. The breaker section is sized at 15 amps, so it can only serve a 15A branch circuit. For a 20A circuit you need a 20A device; using this one would mean the breaker trips below the circuit's design load.
9) What looks like a substitute for the Leviton plug-on SPD breaker but is not?
The Square D Surgelogic surge protective device is often pulled up alongside it, but it is a 208Y/120V three-phase four-wire, 500kA device and carries no branch circuit breaker function - it will not drop into a single-phase 120/240V load center as a 15-amp two-pole breaker replacement. The Eaton BRNSURGE10 is two-pole like the Leviton but belongs to the BR Series bus format, so it is not a plug-on match for panels built for Leviton breaker and SPD accessories. Confirm the panel bus and the service configuration first.
10) If I already have a breaker in the slot, do I still need the Leviton combination unit or just a surge device?
If the branch circuit already has its own overcurrent protection and you only need transient suppression, a surge-only device such as the Eaton BRNSURGE10 two-pole BR Series SPD covers that role. The Leviton LSPD1-T and LSPD2-T are combination units that deliver surge suppression and the circuit breaker function in one 2-pole, 15-amp body, which is what you want when you are also protecting a 15-amp branch circuit and would rather not consume separate slots for a breaker and an SPD module.
