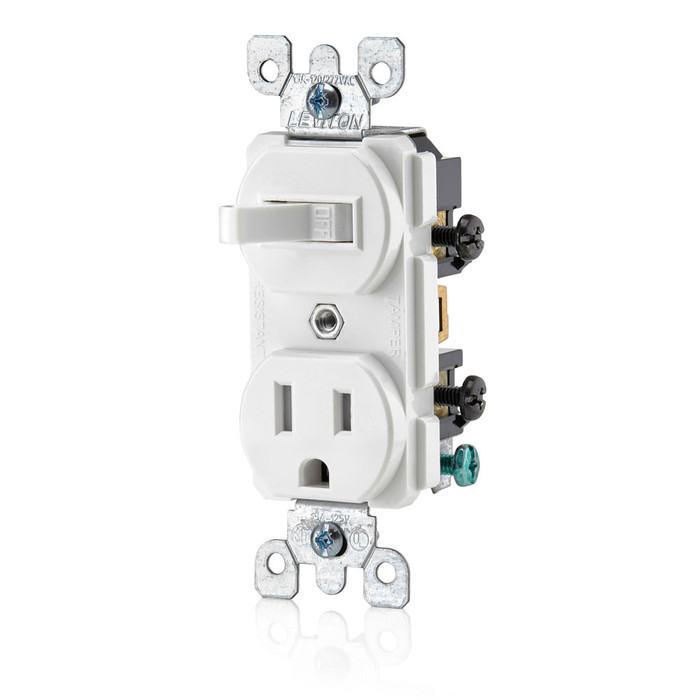

Leviton Commercial Grade Tamper-Resistant Duplex Combination Switch/Receptacle

Leviton Commercial Grade Tamper-Resistant Duplex Combination Switch/Receptacle

(No reviews yet) Write a Review

Model: T5225-W

In Stock (leaves warehouse same day if ordered before 3pm ET)

$21.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Commercial Grade Tamper-Resistant Duplex Combination Switch/Receptacle

The Leviton Commercial Grade Tamper-Resistant Duplex Combination Switch/Receptacle combines an AC switch and a receptacle outlet on a single strap, giving electricians a space-saving way to control a light or fan while providing a convenient outlet from one device location. Built to commercial grade standards, this duplex combination unit features tamper-resistant receptacle openings that help block foreign object insertion, making it a smart choice for schools, healthcare facilities, multi-family housing, and other applications where child-safety code compliance is required. As a combination device, it streamlines wiring in tight electrical boxes by eliminating the need for two separate devices, saving both material cost and installation time on commercial and light-industrial jobs.

Key Features

  • Combination Design: Integrates an AC switch and a duplex receptacle on one yoke, reducing the number of devices needed per box.
  • Tamper-Resistant Construction: Shuttered receptacle openings help prevent insertion of foreign objects, supporting child-safety code requirements.
  • Commercial Grade: Engineered for the durability and repeated-use demands of commercial and light-industrial electrical installations.
  • Duplex Receptacle: Provides two grounded outlet connections alongside the integrated switch function for added convenience.
  • Space-Saving Installation: Combines switching and receptacle functions in a single device footprint, simplifying wiring in crowded electrical boxes.

Technical Specifications

  • list_batch: LEV-20260730
  • Refer to manufacturer documentation for complete electrical ratings, wiring diagrams, and dimensional specifications.

Typical Applications

  • Commercial and Light-Industrial Electrical Installations
  • Schools, Healthcare, and Multi-Family Housing Requiring Tamper-Resistant Devices
  • Combination Switch and Outlet Locations in Offices and Break Rooms
  • Renovation and New Construction Wiring Projects
  • Space-Constrained Electrical Boxes Needing Dual-Function Devices

Why Leviton?

Leviton is a trusted name in commercial and residential wiring devices, and this combination switch/receptacle reflects that standard with its commercial grade build and tamper-resistant safety feature. Choosing a Leviton duplex combination device gives electrical contractors a reliable, code-conscious option for projects that call for dependable, dual-function wiring devices. Shop ZenSupply for genuine Leviton electrical products backed by knowledgeable support.

Manufacturer Resources

Technical Information

Product Specs

Product Type:
Combination Switch/Receptacle
Amperage Rating:
15A
Voltage Rating:
120V
Nema Rating:
5-15R
Grade:
Commercial
Product Color:
White
Device Type:
Tamper-Resistant
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Combination Devices

Leviton T5225-W – Frequently Asked Questions

1) What amperage and voltage is the Leviton T5225-W combination switch/receptacle rated for?
The T5225-W is a 15A, 120V device with a NEMA 5-15R receptacle face, which is the standard grounded straight-blade outlet configuration for general-purpose 120V circuits. Wire it on a 15A circuit; on a 20A commercial circuit you need a device rated for 20A instead.
2) Does this Leviton combo device meet the tamper-resistant receptacle requirement for schools and multi-family units?
The T5225-W is built as a tamper-resistant device, with shuttered receptacle openings that block insertion of a foreign object into a single slot. That is the feature inspectors are looking for at dwelling-unit, school, and similar occupancies where TR receptacles are called out. It is a commercial grade device, so it also holds up to the cycling you get in a break room or corridor.
3) Can one switch and one outlet fit in a single-gang box with the Leviton T5225-W?
That is the point of the device. The switch and the duplex receptacle sit on one strap, so a single device opening gives you both a light or fan control and two grounded outlets. It saves you from ganging a second box on a remodel where the wall cavity will not take it.
4) Will the Leviton T5225-W work on a 20 amp small appliance or kitchen circuit?
No. It is a 15A device with a 5-15R face, so it should not be used where the design calls for a 20A receptacle on a 20A branch. For those locations you need a 20A, 5-20R rated device. A 15A receptacle may be used on a 15A branch circuit, and in multiple-outlet arrangements on a 20A circuit where the code permits, but the device itself carries no 20A rating.
5) Can I switch the receptacle half with the switch on this Leviton combo device, or are they separate?
The T5225-W puts an AC switch and a receptacle outlet on one strap so the switch can control a separate load such as a light or fan while the receptacle gives you an outlet at the same location. How the two halves relate on your job depends on whether you keep or break the factory tab between them, so follow the wiring diagram in Leviton's technical sheet for the T5225-W before you land conductors.
6) What color is the Leviton T5225-W, and will it match my existing white devices and plates?
White. If you are standardizing a building on white wiring devices, the T5225-W drops in alongside them. The face is a combination switch/receptacle opening, so it needs a combination-style wall plate, not a standard duplex or toggle plate.
7) What is the Leviton part number for the white tamper-resistant combination switch/receptacle?
Order it as Leviton T5225-W. The T prefix signals the tamper-resistant version and the W suffix is the white finish.
8) Is a commercial grade combination switch/receptacle worth it over a residential one for an office or break room?
Commercial grade is what the T5225-W is built to, and that matters where a device gets worked repeatedly, plugs pulled daily, or carts and furniture bump it. For a low-traffic closet in a house the difference is minor. For offices, break rooms, healthcare corridors, and multi-family common areas, the commercial grade build is the reason to spec it.
