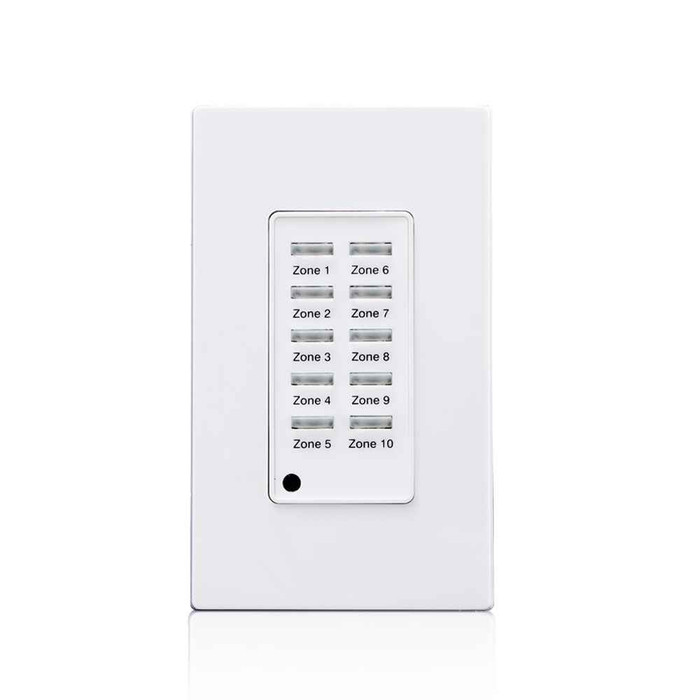

Leviton Z-MAX® Digital Pushbutton Station, 10 Button, 1 Gang, White

Leviton Z-MAX® Digital Pushbutton Station, 10 Button, 1 Gang, White

(No reviews yet) Write a Review

Model: ZMDSW-10W

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Z-MAX® Digital Pushbutton Station, 10 Button, 1 Gang, White

The Leviton Z-MAX® Digital Pushbutton Station is a 1-Gang, White low-voltage control station built for commercial lighting control networks. Configured with 10 buttons, this digital pushbutton station gives facility managers and installers direct, dedicated control over multiple lighting zones from a single wall-mounted location. The Z-MAX® platform is also available in 10W, 1W, and 8W button configurations, allowing this station to be matched to the exact scope of the lighting control application, from single-zone override to full 10-zone command.

Key Features

  • 10-Button Configuration: Provides dedicated pushbutton control for up to 10 individual lighting zones or scenes from one station.
  • 1-Gang Design: Sized for standard 1-Gang low-voltage wallplate openings for straightforward installation in offices, conference rooms, and common areas.
  • White Finish: Clean White housing blends with standard wall and device finishes in commercial interiors.
  • Configuration Options: Part of the Z-MAX® pushbutton station lineup available in 10W, 1W, and 8W configurations to suit varying zone-count requirements.
  • Digital Z-MAX® Platform: Integrates with Leviton's Z-MAX® digital lighting control system for centralized, low-voltage command of connected fixtures.

Technical Specifications

  • Gang: 1
  • Button Count: 10 Button
  • Color: White
  • Available Configurations: 10W, 1W, 8W

Typical Applications

  • Commercial Office and Conference Room Lighting Control
  • Z-MAX® Low-Voltage Lighting Control Networks
  • Multi-Zone Scene and Override Control Stations
  • New Construction Lighting Control Installations
  • Retrofit and Upgrade of Existing Low-Voltage Control Systems

Why Leviton?

Leviton's Z-MAX® Digital Pushbutton Station is engineered as part of a purpose-built low-voltage lighting control platform, giving installers a consistent 1-Gang footprint across the 10W, 1W, and 8W configuration options. This 10-Button, White station lets a single manufacturer's ecosystem cover simple single-zone control up through full 10-zone command, simplifying specification and stocking for electrical contractors working on commercial lighting control projects.

Manufacturer Resources

Product Specs

Gang:
1
Product Type:
Pushbutton Station
Department:
Electrical
Product Group:
Wiring Devices
Country of Origin:
Mexico
Product Subgroup:
Shop All Leviton

Leviton ZMDSW-10W – Frequently Asked Questions

1) How many buttons do I get on a Leviton ZMDSW Z-MAX pushbutton station, and what are the configuration choices?
The Leviton Z-MAX digital pushbutton station comes in three configurations: 10W, 1W, and 8W, ordered as ZMDSW-10W, ZMDSW-1W, and ZMDSW-8W. Pick the button count to match the number of zones or scenes the room needs. A single-button 1W handles a straight on/off or override at a door; 8W and 10W drive multi-zone or scene control in a conference room or open office. All three keep the same 1-gang footprint, so the wall opening and plate do not change when you change button count.
2) Will a Z-MAX pushbutton station fit a standard 1-gang wall box and plate?
The ZMDSW station is a 1-gang device sized for a standard 1-gang low-voltage wallplate opening. Because it is low voltage, plan the box or bracket accordingly rather than sharing a line-voltage box. The 1-gang footprint holds across all three button counts, so a wall roughed in for a 1W station takes a 10W later without touching the opening.
3) Can I wire a Leviton ZMDSW pushbutton station on line voltage, or does it need a lighting control panel?
This is a low-voltage control station, not a line-voltage switch. It does not break the load itself; it sends commands over the Leviton Z-MAX digital lighting control system, and the relays in that panel do the switching. So it only works as part of a Z-MAX network. If you are replacing a conventional 120V toggle or decora switch on its own, this is the wrong part.
4) I need to control 3 lighting zones from one wall location. Which ZMDSW should I order?
Order the 8-button ZMDSW-8W and use three of the buttons. There is no 3-button version in the Z-MAX pushbutton lineup, which runs 1W, 8W, and 10W only, so you step up to the next size and leave the spare buttons for scenes or an all-off. If you only ever need one command at that location, ZMDSW-1W is the smaller option.
5) Can I add a Z-MAX pushbutton station to an existing low-voltage lighting control system, or is it new construction only?
Both. The Z-MAX digital pushbutton station is used in new construction lighting control installations and in retrofit or upgrade work on existing low-voltage control systems. The requirement is the system it talks to: it has to be a Leviton Z-MAX digital lighting control network. Adding one to a competitor's low-voltage system is not something the station supports.
6) What is the exact part number for a 10-button white Z-MAX pushbutton station?
The 10-button white station is Leviton ZMDSW-10W. The rest of the family shares the ZMDSW base: ZMDSW-8W for eight buttons and ZMDSW-1W for one. That base designation plus the button-count suffix is what identifies the station on a submittal or a purchase order.
7) Will the white Z-MAX station match the other white devices in my building?
The ZMDSW station is furnished in white across every button count, so a building standardized on white wiring devices stays consistent from a single-button override at a door to a 10-button station in a conference room. White is the only color in this station lineup, so there is no color to specify at order time, just the configuration.
8) Where is the Leviton ZMDSW pushbutton station manufactured?
Country of origin on the Z-MAX digital pushbutton station is Mexico. That is the detail a government, education, or healthcare procurement office asks for when domestic-preference language is in the bid documents.
