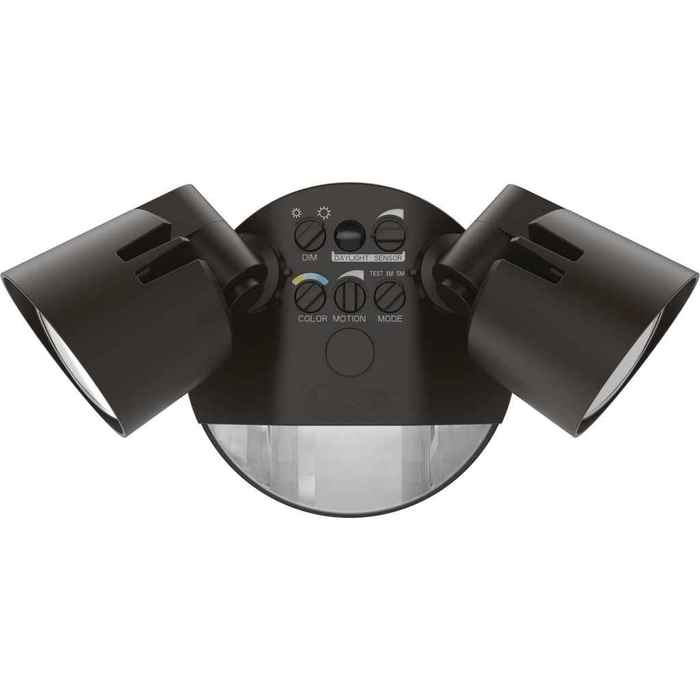

Lithonia Lighting HGX LED 2RH ALO SWW2 120 PIR M2

Lithonia Lighting HGX LED 2RH ALO SWW2 120 PIR M2

(No reviews yet) Write a Review

Model: HGX LED 2RH ALO SWW2 120 PIR DDB M2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$133.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
LITH HGX LED 2RH ALO SWW2 120 PIR D

  • Standards

    • ENERGY STAR
    • C-UL-USCA Title 24

  • Features

    • DIMENSIONS: 7.52 in x 4.53 in x 4.96 in
    • RATINGS: UL/cUL listed to meet US and Canadian standards, suitable for wet locations, ENERGY STAR certified product
    • WARRANTY: Five-year limited warranty
    • ENERGY SAVINGS: Energy-efficient LEDs with adjustable lumen output of 2,150 or 2,600 lumen options
    • HOURS OF LIFE: The HGX LED provides over 50,000 hours of maintenance free general illumination for outdoor applications where LEDs maintain 70% of light output
    • ACCENT LIGHT: 300 lumen accent light turns on at dusk and remains on until dawn, when motion is detected, the two round heads illuminate for security until motion is no longer detected
    • DIMMING: Photocell (dusk-to-dawn), Adjustable Lumen Output (ALO), Switchable Color Temperature (CCT) and Motion Sensor
    • DESIGN: Easy to install and experience, the HGX floodlight family is the best choice for contractors and DIY customers with it's broad feature set for every application
    • CONSTRUCTION: Cast-aluminum housing with drak bronze polyester powder paint for lasting durability; LED lamp heads thermally isolated from driver, promoting a long service life; lenses are sealed to prolong service life
    • MOUNTING: Wall mount only to a recessed junction box with crossbar and hardware provided, wet location listed, and tool-less adjustable heads allow for water protection and precise aiming

  • Applications

    • Warehouses
    • Education
    • Hospitality
    • Healthcare
    • Automotive & Parking
    • Parking Garage
    • Entertainment
    • House of Worship
    • Offices & Banks
    • Residential
    • Manufacturing
    • Retail
    • Government


HGX LED 2RH ALO SWW2 120 PIR DDB M2 - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Mounting Method:
Surface
Average Life:
50, 000 Hours
Color Rendering Index Cri:
80
Voltage Rating:
120V
CRI:
Variable K
Product Shape:
Round
Environmental Conditions:
Outdoor
Lumens:
1750 LM, 2100 LM, 2600 LM, 2700 LM LM
Number Of Lamps:
2
Product Type:
Surface Mount Fixture
Lamp Type:
LED - Static
Product Wattage:
26 W
Department:
Electrical
Product Subgroup:
Light Fixtures
Product Group:
Lighting

Lithonia Lighting HGX LED 2RH ALO SWW2 120 PIR DDB M2 – Frequently Asked Questions

1) How does the Lithonia HGX LED 2RH motion sensor floodlight behave at night - does it stay on or only trigger on motion?
It does both. A 300 lumen accent light comes on at dusk and stays on until dawn, giving low-level presence lighting all night. When the PIR sensor picks up motion, the two round heads fire up at full output for security, then drop back once motion stops. That makes it workable for a back door or loading area where you want some light all night without burning full wattage.
2) Can the HGX LED 2RH floodlight be mounted on a pole or an existing surface box, or does it need a recessed junction box?
Wall mount only, and it goes to a recessed junction box using the crossbar and hardware that ship with it. No pole or tree mount. If your existing fixture is fed from a surface-mounted box, you will need to change the rough-in before this one goes up. The heads are tool-less adjustable, so aiming is done by hand after it is on the wall.
3) Is this Lithonia HGX twin-head floodlight rated for outdoor and wet locations?
Yes. The HGX LED 2RH is UL/cUL listed to US and Canadian standards and listed for wet locations, with sealed lenses and a cast-aluminum housing. It is built for exterior service, and the lamp heads are thermally isolated from the driver to extend life.
4) What color temperature and brightness do I have to specify when ordering the HGX LED 2RH, or is it adjustable on the fixture?
You do not pick either at order time. The fixture has switchable color temperature (SWW2) and adjustable lumen output (ALO) selected on the unit itself, so one part number covers the range. Published output options are 2,150 or 2,600 lumens, and color rendering is 80 CRI. The only thing you choose when ordering is finish.
5) What voltage and wattage does the HGX LED 2RH draw - will it work on a standard 120V lighting circuit?
It runs on 120V only and draws 26 watts. That is a straight swap onto a standard residential or light commercial 120V branch circuit. Do not spec it for a 277V or multi-volt panel.
6) Is the HGX LED 2RH ENERGY STAR certified and does it meet California Title 24?
Yes on both. The HGX LED 2RH is an ENERGY STAR certified product and is listed to C-UL-US CA Title 24. That matters if you are pulling permits in California or chasing a utility rebate on an exterior lighting retrofit.
7) What finishes does the Lithonia HGX LED 2RH security floodlight come in?
Two: dark bronze (DDB), part number HGX LED 2RH ALO SWW2 120 PIR DDB M2, and white (WH), HGX LED 2RH ALO SWW2 120 PIR WH M2. Bronze is the polyester powder coat over cast aluminum. For a property with mixed trim colors, pick per building and note that both carry identical optics and controls.
8) How much wall space do I need for the HGX LED twin-head floodlight?
The fixture measures 7.52 x 4.53 x 4.96 inches. The two heads are round and adjust without tools, so plan clearance around the body for aiming rather than just the footprint. Tight soffits or narrow pilasters are the usual problem spots.
