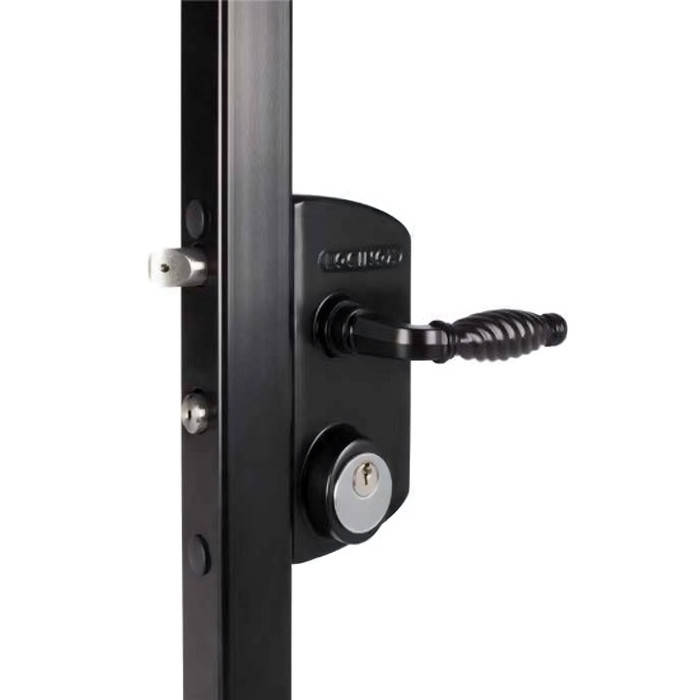

Locinox USA Surface Mounted Swing Gate Lock with Handle, Less Mortise Cylinder

Locinox USA LOCLUKY0J5LZCZB9005 LUKY Surface Mounted Swing Gate Lock with Handle, Less Mortise Cylinder

(No reviews yet) Write a Review

Model: LUKY40J5LZCZB9005
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$172.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Locinox USA LUKY Surface Mounted Swing Gate Lock with Handle, Less Mortise Cylinder

The Locinox USA LUKY Surface Mounted Swing Gate Lock combines an aluminum housing with a stainless steel mechanism, engineered for use with a standard 1-1/8" mortise cylinder (sold separately). This gate lock features a double cylinder dead bolt with a 7/8" stainless steel throw and 3/8" continuous bolt adjustment, ensuring reliable, precise locking for Commercial gate applications. Rated for Gate Hardware and Gate Closer applications, this lock is built for durability and everyday demanding use.

Key Features

  • Deadbolt Throw: Stainless steel throw of 7/8" in one turn of the key guarantees secure locking.
  • Continuous Adjustment: Latch and dead bolt offer 3/8" continuous adjustment for perfect alignment of the locking mechanism without removing the lock.
  • Mortise Cylinder Compatibility: Designed for a standard 1-1/8" mortise profile cylinder, with fixing cylinder inch thread of 8/32.
  • Heavy-Duty Construction: Aluminum housing paired with a stainless steel mechanism for long-term durability in gate applications.
  • Salt Spray Tested: ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray testing for corrosion resistance.
  • Self-Latching Day Bolt: Key-operated self-latching bolt allows free exit application, with easy left or right hand changing.
  • Simple Installation: 4-hole mounting with two hex head socket screws; lock box requires 3-3/8" spacing to the first picket, fitting nicely into most gates.
  • System Compatibility: Interchangeable with all Locinox locks for flexible hardware configurations.
  • Handle Options: Black lock standard comes with 3006B handle (black anodized aluminum); silver comes with aluminum handle (3006M).

Certifications & Compliance

  • ISO 9227 KTL / E-coated finish, tested to withstand 1000 hours of salt spray

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Product Subgroup: Gate Latches and Lock Sets
  • Product Type: Gate Closers
  • Subcategory: Gate Closer
  • Commercial/Residential: Commercial
  • Product Function: Single Cylinder Deadbolt
  • Latch Bolt Type: Deadbolt
  • Product Category: Gate Hardware
  • Department: Door Hardware

Typical Applications

  • Commercial Property Perimeter Security
  • Industrial Facility Access Points
  • Multi-Unit Residential Complexes
  • Parking Facility Entry Systems
  • Warehouse and Distribution Centers
  • Educational Facilities
  • Government and Municipal Buildings

Why Locinox USA LUKY?

Locinox USA LUKY gate locks deliver dependable, professional-grade security with an aluminum housing and stainless steel mechanism rated to withstand 1000 hours of salt spray testing per ISO 9227 KTL / E-coating standards. Engineered with a 7/8" deadbolt throw and 3/8" continuous adjustment, this lock is built for demanding commercial gate applications where precise alignment and long-term corrosion resistance are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Gate Latches and Lock Sets
Product Type:
Gate Closers
Subcategory:
Gate Closer
Commercial/Residential:
Commercial
Product Function:
Single Cylinder Deadbolt
Latch Bolt Type:
Deadbolt
Product Category:
Gate Hardware
Department:
Door Hardware

Locinox USA LUKY40J5LZCZB9005 – Frequently Asked Questions

1) Will the Locinox LUKY gate lock fit my square tube gate frame?
The LUKY surface mounted gate lock is built for square gate frames in two profile ranges: 1.25 to 1.5 inch and 1.5 to 2 inch. Pick the range your upright actually measures. The lock box also needs 3-3/8 inches of clear space from the box to the first picket, so measure that gap before you order, since an infill picket set tighter than that will crowd the housing.
2) Does the Locinox LUKY gate lock come with a cylinder, or do I have to buy one?
No cylinder is included. The LUKY ships less mortise cylinder and takes a standard 1-1/8 inch mortise profile cylinder, which you order separately. That is actually useful on a commercial site: you can key the gate into the same system as the building doors by supplying your own cylinder. The cylinder fixing screw thread is 8/32.
3) Will the LUKY deadbolt still line up if my gate sags or shifts over time?
Yes, and that is the point of the design. Both the latch and the dead bolt carry 3/8 inch of continuous adjustment, so you can re-align the locking mechanism to the keep without taking the lock off the gate. On a swing gate that settles on its hinges through a season, that saves a full remount.
4) How far does the Locinox LUKY deadbolt throw, and will it hold in an exterior gate keep?
The stainless steel bolt throws 7/8 inch in a single turn of the key. That is a full-depth throw for a surface gate keep, and because it is a deadbolt rather than a spring latch it cannot be pushed back once thrown. Confirm your keep or strike pocket accepts a 7/8 inch bolt at the adjusted centreline.
5) Can a Norton Rixson 1351 gate closer be used instead of the Locinox LUKY gate lock?
No - they do different jobs on the same gate. The Locinox LUKY is a surface mounted swing gate lock with a handle and a single cylinder deadbolt function, using a deadbolt as its latch bolt type and taking a standard 1-1/8 inch mortise cylinder that is sold separately. The Norton Rixson Model 1351 is an exterior gate specialty closer for 250 lb gates, in the 1351 Series and rated light duty; a closer controls how the gate swings back to the frame and provides no keyed security. A gate that needs both gets a closer and a lock, not one in place of the other.
6) What pairs with a surface mounted swing gate lock on an exterior perimeter gate that also needs to self-close?
The Locinox LUKY handles the locking side - it is a surface mounted swing gate lock with handle, with a 7/8 inch stainless steel deadbolt throw in one turn of the key and a key-operated self-latching day bolt for free exit. For the closing side on an exterior gate, the Norton Rixson Model 1351 is an exterior gate specialty closer rated for 250 lb gates. The Norton Rixson Model 354 is a double-acting interior gate closer for 75 lb doors in the 350 Series, so it is the wrong pick for an outdoor perimeter gate carrying a surface mounted lock body.
7) Can the Locinox LUKY be handed for a left or right swing gate?
Handing is field changeable. The key-operated self-latching day bolt swaps between left and right hand without a different part number, so one lock covers either leaf. That matters if you are stocking gate hardware for a property with gates swinging both ways.
8) Will a Locinox LUKY gate lock survive a coastal or de-iced parking area?
Corrosion resistance is the strong suit here. The lock box is KTL / E-coated and tested to ISO 9227 for 1000 hours of salt spray, the housing is aluminum and the internal mechanism is stainless steel. That combination is aimed at exposed perimeter gates, coastal sites and parking entries where road salt gets thrown at the hardware every winter.
9) Can people get out through the gate without a key when the LUKY is locked?
Yes. The day bolt is self-latching and key operated, and the lock is set up for free exit, so someone on the inside can leave while the gate stays latched behind them. That is the usual arrangement for a fenced multi-unit courtyard or a warehouse yard gate where you want the gate secure but not a trap.
10) What is needed to mount a Locinox LUKY, and does the gate need to be drilled through?
Mounting is surface applied through a 4-hole pattern using two hex head socket screws, so the lock goes on the face of the gate upright rather than into a mortise pocket. No welding and no milling of the tube. Allow 3-3/8 inches from the lock box to the first picket for the housing to sit clean.
11) I already have other Locinox hardware on site. Will the LUKY work with it?
It will. The LUKY is interchangeable with all Locinox locks, so a property standardizing its gate openings on Locinox can mix this surface mounted lock in with the rest of the range and keep one hardware system across the site.
12) What is the difference between the Norton Rixson 354 and the 1351 when specifying gate hardware alongside a keyed gate lock?
The Norton Rixson Model 354 is a double-acting interior gate closer for 75 lb doors in the 350 Series - double-acting meaning the gate swings both directions, which suits interior service and queue gates. The Model 1351 is an exterior gate specialty closer for 250 lb gates, in the 1351 Series, rated light duty. Neither one locks: keyed security on the leaf comes from a lock such as the Locinox LUKY, a commercial surface mounted swing gate lock with a single cylinder deadbolt function.
13) What handle comes on the black Locinox LUKY gate lock?
The black version ships with the 3006B handle in black anodized aluminum. The silver version uses the 3006M aluminum handle. So on a black powder-coated steel gate you get a matched black handle out of the box with nothing extra to specify.
14) Is the Locinox LUKY suitable for a commercial property gate or is it a residential lock?
It is rated commercial. Locinox builds the LUKY for perimeter security on commercial and industrial sites, parking entries, warehouses, schools and municipal properties, along with multi-unit residential complexes. The aluminum and stainless construction with a 1000 hour salt spray rating is what carries it through that traffic.
