Features
- Electronic Lever Lock
- Key Override
- Holds up to 6 user codes and one disposable code at a time
- Program and change 4-10 digit codes at the touch of a button
- Remote Capable (1 remote included, up to 5 capable)
- Auto-locking function improves security and convenience
- Battery powered-no messy wiring
- Easy to install
- Fits regular door preparation (2 1/8″)
- Customizable programming code for setup
- Low battery indicator
- LED Illumination allows for easy operation in the dark
Dimensions & Specifications
- Exterior Dimensions: 5 1/2” L x 3 1/8” W x 1 3/16” D
- Interior Dimensions: 7 1/4” L x 2 7/8” W x 1 3/4” D
- Door Thickness: 1 3/8” to 1 3/4”
- Door Prep Cross Bore: 2 1/8″
- Door Prep Edge Bore: 1″
- Material: Stainless steel
- Latch: Adjustable
- Cylinder: 5 pin Schlage keyway
- Power: 4 AA Alkaline batteries
- Keys Included: 2
- Weather Resistant Exterior Lock Body
- Inside Lock Body for Interior Use Only

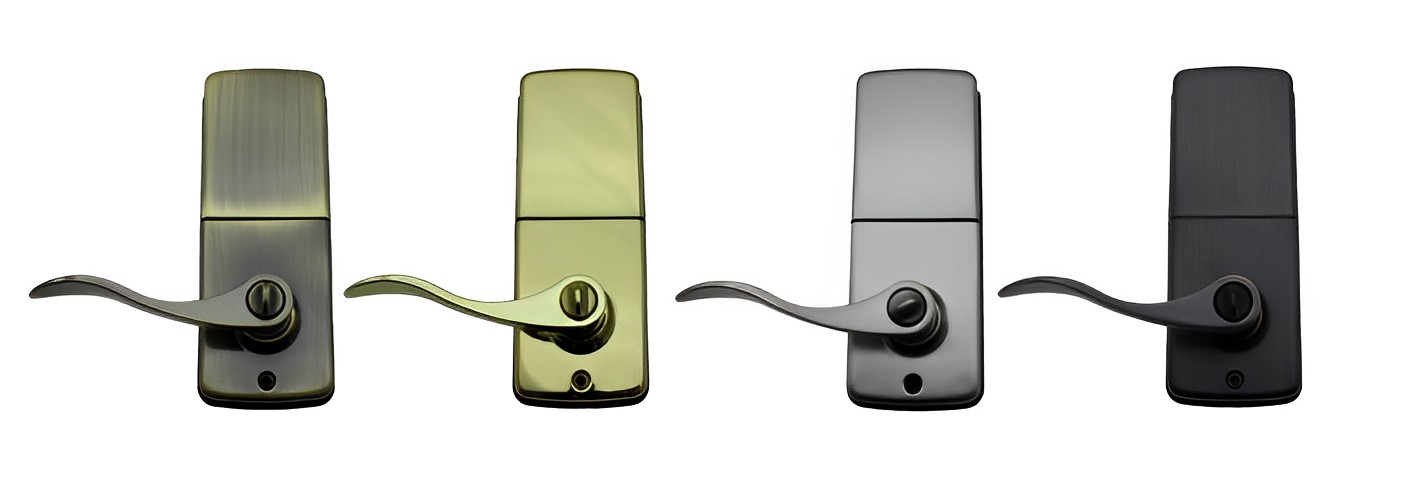

Finishes:
- Antique Brass (AB)
- Bright Brass (BB)
- Oil Rubbed Bronze (OIL)
- Satin Nickel (SN)
Downloads
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Door Thickness:
- 1 3/8" to 1 3/4"
- Latch:
- Adjustable
- Power:
- Battery Operated
- Keys Included:
- 2
- Cross Bore:
- 2 1/8"
- Edge Bore:
- 1"
- Product Subgroup:
- Mortise Locks and Trim
- Product Type:
- Leversets
- Subcategory:
- Electronic Keypad Locks
- Substrate:
- Stainless Steel
- Commercial/Residential:
- Commercial
- Cylinder and Keyways:
- 5 Pin Schlage Keyway
- Electronic:
- Yes
- Batteries:
- AA (4)
- Battery Operated:
- Yes
- Handle Type:
- Lever
- Dimensions:
- 5 1/2" L x 3 1/8" W x 1 3/16" D
