Lockey EC784 Electronic Cabinet Lock with Flush Mount Design and 80,000 Cycle Battery Life

Professional Electronic Cabinet Security Solution

The Lockey EC784 Electronic Cabinet Lock delivers advanced access control for commercial cabinet applications with flush mount design and exceptional battery performance. This zinc diecast lock features external dimensions of 143.5mm (5.65") L x 41mm (1.61") W x 11.5mm (.45") D and provides up to 80,000 cycles per pair of AA batteries. The unit includes multiple programming modes with 8-digit master code, 6-digit sub-master code, and 4-digit user codes for flexible access management.

Professional Features & Benefits

  • Compact Flush Design: External dimensions of 143.5mm (5.65") L x 41mm (1.61") W x 11.5mm (.45") D provide discreet installation in cabinet applications.
  • Extended Battery Life: Up to 80,000 cycles per pair of AA batteries ensures reliable long-term operation with minimal maintenance requirements.
  • Multiple Access Modes: Public, Private & Remote Allocation System (RAS) mode with key override capability for versatile security configurations.
  • Advanced Code Management: 8-digit master code, 6-digit sub-master code, 4-digit user code, and 6-digit technician code provide comprehensive access hierarchy.
  • Durable Construction: Zinc diecast material with powder coated finish ensures reliable performance in commercial cabinet environments.
  • User-Friendly Operation: Audible keypad with on/off capability and battery condition indicator LED for operational feedback.
  • Flexible Installation: 3-point mounting system with 20mm standard spindle length accommodates various cabinet configurations.
  • Auto Unlock Feature: Programmable auto unlock mode can be enabled or disabled based on application requirements.

Technical Specifications

  • Batteries: AA (2)
  • Battery Operated: Yes
  • Collection: EC Series
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Endurance Cycles: Up to 80,000 cycles per pair of AA batteries
  • Keys Included: 2
  • Power: Battery Operated
  • Product Category: Cabinet Hardware
  • Product Dimension: 143.5mm (5.65") L x 41mm (1.61") W x 11.5mm (.45") D
  • Product Group: Cabinet Hardware
  • Product Subgroup: Cabinet Latches and Locks
  • Product Substrate: Zinc Diecast
  • Product Type: Cabinet Locks
  • Subcategory: Electronic Cabinet Locks

Professional Applications

  • Commercial Office File Cabinets
  • Healthcare Records Storage
  • Educational Institution Secure Storage
  • Retail Cash Management Systems
  • Industrial Tool and Equipment Cabinets
  • Government Document Security
  • Multi-Tenant Storage Solutions

Why Choose Lockey Quality?

Lockey EC784 Electronic Cabinet Locks deliver professional-grade security with zinc diecast construction rated for up to 80,000 cycles per battery set. The comprehensive code management system and flush mount design provide reliable access control for demanding commercial cabinet applications where secure storage and operational efficiency are essential.

Manufacturer Resources

Lockey USA Lock Catalog

Product Specs

Product Group:
Cabinet Hardware
Product Subgroup:
Cabinet Latches and Locks
Product Type:
Cabinet Locks
Subcategory:
Electronic Cabinet Locks
Commercial/Residential:
Commercial
Electronic:
Yes
Batteries:
AA (2)
Battery Operated:
Yes
Endurance Cycles:
Up to 80,000 cycles per pair of AA batteries
Keys Included:
2
Power:
Battery Operated
Product Dimension:
143.5mm (5.65") L x 41mm (1.61") W x 11.5mm (.45") D
Product Category:
Cabinet Hardware
Product Substrate:
Zinc Die-Cast
Collection:
EC Series
Department:
Door Hardware

Lockey EC784-S-V – Frequently Asked Questions

1) What keypad orientations does the Lockey EC784 cabinet lock come in, and do I have to pick one?
Yes, orientation is an ordering choice. The EC784 is built in left handed, right handed, and vertical keypad configurations, each offered in black, silver, or white. Pick the orientation that matches how the cabinet door or drawer front is hung, since the keypad layout is fixed at the factory rather than field reversible on this model. If you need a cabinet lock you can flip in the field, a mechanical option like the Sargent 1655 is field reversible.
2) How much space do I need to cut out for a Lockey EC784 electronic cabinet lock?
Plan around external dimensions of 143.5mm (5.65 in) L x 41mm (1.61 in) W x 11.5mm (.45 in) D. The shallow 11.5mm body and flush fit design keep it close to the cabinet face, and it fixes with a 3 point mounting system using a 20mm standard spindle length. Confirm your cabinet front leaves clearance for that spindle before cutting.
3) Does the Lockey EC784 need to be wired to power or an access control panel?
No wiring at all. The EC784 runs on two AA batteries and is a stand alone battery operated lock, so there is no transformer, no power supply, and no cabling to run through a cabinet hinge. Lockey rates it up to 80,000 cycles per pair of AA batteries, and a battery condition indicator LED warns you before they die. If your project actually requires panel integration, wired cabinet locks like the SDC 290 Series electric bolt or the HES KS200 with Wiegand wired access control are the direction to go.
4) What happens if the batteries die in the Lockey EC784 cabinet lock?
There is a key override, and two keys ship with the lock, so a dead battery does not mean drilling the cabinet. Between the override cylinder and the low battery indicator LED, an MRO or facilities team can keep access without cutting into files. Keep one key with the building keys and one in a controlled location.
5) What is the closest battery powered keypad alternative to the Lockey EC784 cabinet lock?
The SDC 295 Series is a battery powered programmable cabinet lock with a 30-user keypad, making it the nearest standalone keypad equivalent to the battery operated Lockey EC784. The EC784 runs on two AA batteries with up to 80,000 cycles per pair and uses a code hierarchy of an 8-digit master code, 6-digit sub-master code, 4-digit user code and 6-digit technician code. If you need a defined 30-user roster, the SDC 295 is specified that way; if you want flush zinc die-cast hardware with key override, the EC784 is the match.
6) If my cabinet lock needs to tie into a wired access control system, what should I use instead of the Lockey EC784?
The Lockey EC784 is a self-contained battery operated lock with no wiring, so it cannot report to a head-end system. For wired integration, the HES KS200 server cabinet lock provides Wiegand integrated wired access control and is a Grade 1 product. The DynaLock 1410 Series and SDC 290 Series are dual voltage electric cabinet locks, which suit applications where the lock is driven from a powered circuit rather than batteries.
7) How many user codes can the Lockey EC784 handle, and who can change them?
The code hierarchy runs four levels: an 8 digit master code, a 6 digit sub master code, 4 digit user codes, and a 6 digit technician code. That structure suits a records room or shared storage where a manager holds the master, a supervisor holds the sub master, and staff get their own 4 digit codes. It also runs Public, Private, and Remote Allocation System (RAS) modes, plus a programmable auto unlock that can be switched on or off.
8) Is the Lockey EC784 tough enough for high traffic commercial cabinets?
It is built for commercial use, not residential: zinc die cast body with a powder coated finish, rated up to 80,000 cycles per battery set. Typical placements are office file cabinets, healthcare records storage, school and government secure storage, retail cash handling, and industrial tool cabinets.
9) Keypad or key for a bank of file cabinets? How do I choose?
A keypad lock like the Lockey EC784 removes key handling entirely: staff get 4 digit codes you can change, with a key override for backup. That is the better answer where people rotate or turn over. Stay mechanical when the cabinets are tied to an existing keying system, since a keyed cabinet lock with a small format interchangeable core, like the BEST 3L Series with its 7 pin housing, can be cored to the same keyway as the rest of the building. Server rack applications have their own family, including the HES KS-M mechanical server cabinet lock.
10) What is a simpler key-only alternative to the Lockey EC784 for file cabinets and drawers?
If codes are not needed, mechanical cylinder cabinet locks cover the same openings. The Sargent 4142 is a horizontal cabinet lock with a 6-pin brass cylinder, the Sargent 1655 is a 6-pin cabinet lock with field reversible handing, and the BEST 3L Series is a dead-locking cabinet lock with a 7-pin housing and vertical rim mounting. The Lockey EC784 differs in that it manages access by code with two AA batteries and ships with 2 keys for override.
11) Which cabinet locks look like substitutes for the Lockey EC784 but serve a different purpose?
Several are not drop-in alternatives. The BEST 5L Series is a coin box cabinet lock with a 7-pin SFIC core housing, intended for coin box openings and small format interchangeable core keying systems. The Sargent KESO F1 4152 and 4252 Series are drawer locks built around the KESO security key system, so they require that keying program rather than a code. The HES KS-M is a mechanical server cabinet lock. The Lockey EC784 is an electronic flush mount cabinet lock measuring 143.5mm (5.65 inch) L x 41mm (1.61 inch) W x 11.5mm (.45 inch) D.
12) For securing server or network cabinets, is the Lockey EC784 the right choice or is there a purpose-built option?
HES builds locks specifically for server cabinets: the KS-M mechanical server cabinet lock and the KS200 server cabinet lock with Wiegand wired access control, both Grade 1. The Lockey EC784 is a commercial electronic cabinet lock listed for applications such as office file cabinets, healthcare records storage, tool and equipment cabinets and government document security, and it runs entirely on two AA batteries with no wiring to the rack.
13) I need a heavy duty electric cabinet lock instead of the Lockey EC784 keypad unit. What are the options?
The DynaLock 1410 Series is a dual voltage cabinet lock listed at a heavy duty level, and the SDC 290 Series is a micro cabinet electric bolt lock with dual voltage operation for tight mounting spaces. Both are electrically actuated rather than code-entry devices. The Lockey EC784 instead combines the credential and the lock in one flush zinc die-cast body with a 3-point mounting system and a 20mm standard spindle length.
14) Which cabinet lock handles both left and right hand cabinet doors, the Lockey EC784 or the Sargent options?
The Lockey EC784 addresses handing through the order: keypad direction is offered as left handed, right handed or vertical, each in black, silver or white. The Sargent 1655 achieves it differently, with field reversible handing on a 6-pin cabinet lock, as does the Sargent KESO F1 4252 Series with field reversible operation. Choose the EC784 configuration when you know the orientation at time of order, or a field reversible mechanical lock when one part number has to cover mixed openings.

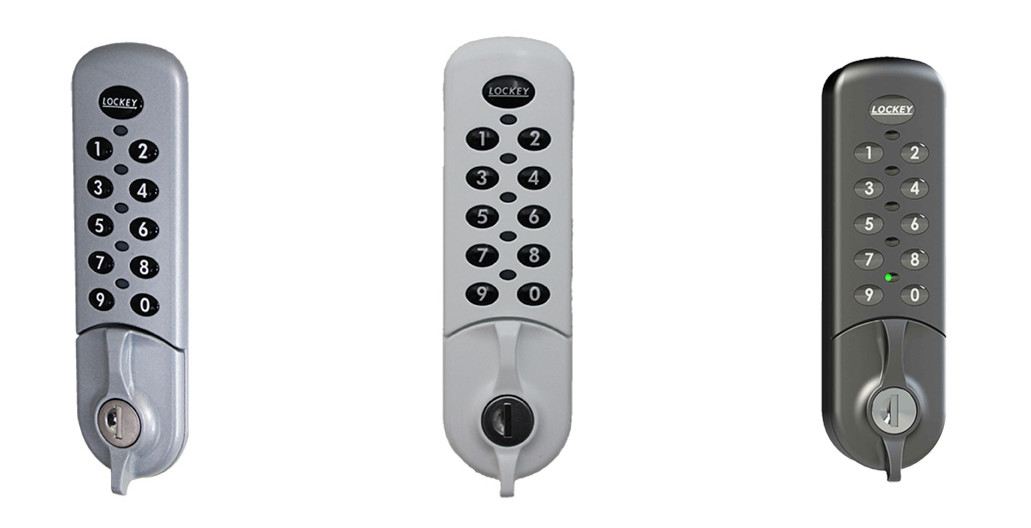

15) Can I standardize the Lockey EC784 across cabinets that have different finishes?
Three finishes are built: black, silver, and white, each available in the three keypad orientations. That covers most office and casework colors, so a property manager or facilities buyer can run one lock model across a mixed set of cabinets and just vary the finish.
16) Does the Lockey EC784 beep when you press the keys, and can that be turned off?
The keypad is audible with an on/off capability, so the tone can be silenced. That matters in a quiet records room, a clinical area, or a library where a beeping cabinet every few minutes is a problem.
