Features

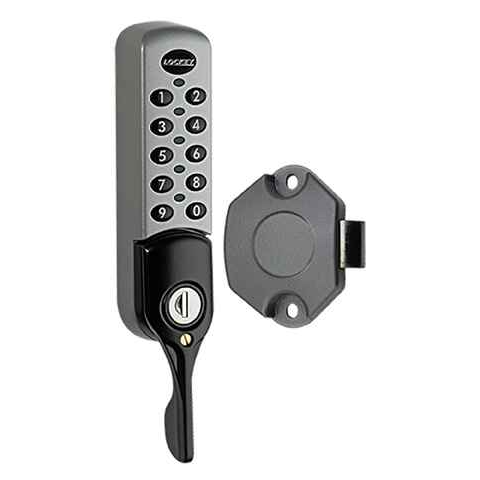

- ADA Lever Handle
- Public, Private & Remote Allocation System (RAS) mode
- Key override
- Up to 80,000 cycles per pair of batteries
- Battery condition indicator
- Audible keypad (can be turned on/off)
- 8 digit master code
- 6 digit sub-master code
- 4 digit user codes
- 6 digit technician code
- Auto unlock mode (can be turned on/off)
- Technician mode
Dimensions & Specifications
- External Dimensions: 185.5mm (7.3”) L x 37mm (1.46”) W x 28.7mm (1.13”) D
- Mounting Hole Shape: 2 or 3 point mounting (see technical drawing)
- Spindle Length: 20mm standard
- Power: 2 x AA Battery (Alkaline)
- Operations: Up to 80,000 cycles per pair of AA batteries
- Low Battery: LED lights with battery condition indicator
- Material: Zinc diecast
- Standard Cam Capability: 1/4” to 1 1/2”
- Keys Included: 2
- For Internal use
Keypad Direction Options:
- Vertical (V)
- Right Handed Horizontal (R)
- Left Handed Horizontal (L)
Finishes:
- Black (B)
- Silver (S)
- White (W)
Downloads
Manufacturer Resources
Product Specs
- Category:
- Cabinet Hardware
- Product Group:
- Cabinet Hardware
- Power:
- Battery Operated
- Dimensions:
- 140mm (5 1/2") L x 41mm (1.61") W x 32.5mm (1.28") D
- Product Subgroup:
- Cabinet Latches and Locks
- Product Type:
- Cabinet Locks
- Subcategory:
- Electronic Cabinet Locks
- Substrate:
- Zinc Alloy
- Commercial/Residential:
- Commercial
- Endurance Cycles:
- Up to 80,000 cycles per pair of AA batteries
- Electronic:
- Yes
- Batteries:
- AA (2)
- Battery Operated:
- Yes
- Handle Type:
- Lever
