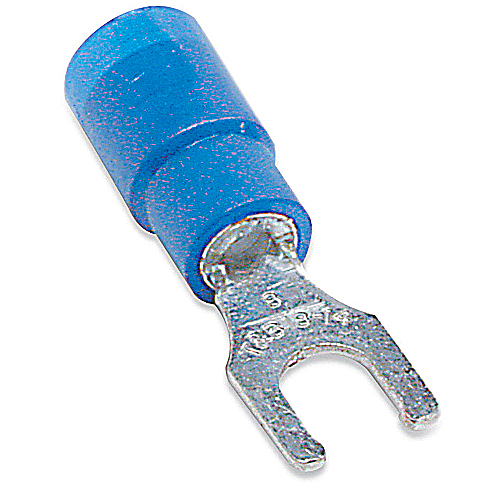

Locking Fork Terminal
Certifications
- UL
- CSA
Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Manufacturer Resources
Product Specs

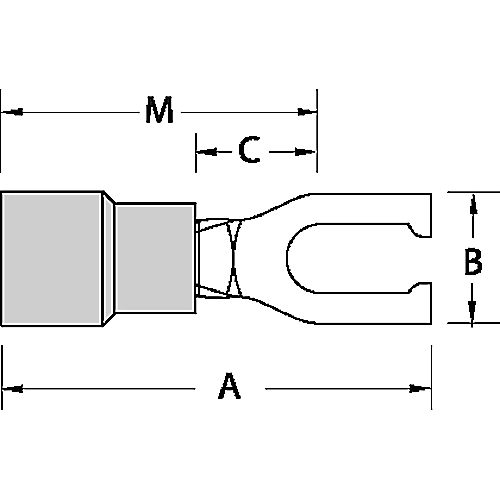

- A Inches :
- 0.97
- Alternate Package Qty:
- RB2237-200
- Application Tools:
- ERG4001, ERG4003, WT145C, WT2000, WT112M, WT145C
- B Inches :
- 0.31
- C Inches :
- 0.27
- Color:
- Blue
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 100
- Insulation Type:
- Expanded Insulated Vinyl
- M Inches :
- 0.81
- Material:
- Copper
- Maximum Insulation Inches :
- 0.2
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 8.9
- Package Length:
- 15.1
- Package Type:
- Standard
- Package Width:
- 9.6
- Product Group:
- Electrical
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.03
- Stud Size:
- #8
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 2.5 lbs. per 1000
- Temperature Rating:
- 105°C
- Terminal Series:
- RB
- Voltage Rating:
- 600V
- Wire Range:
- 18-14
- parent sku:
- TB-14RB-8FLX
