Locking Fork Terminal
Notes
- Not available on Mylar Tape.
Certifications
- CSA
- UL
Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Manufacturer Resources
Product Specs

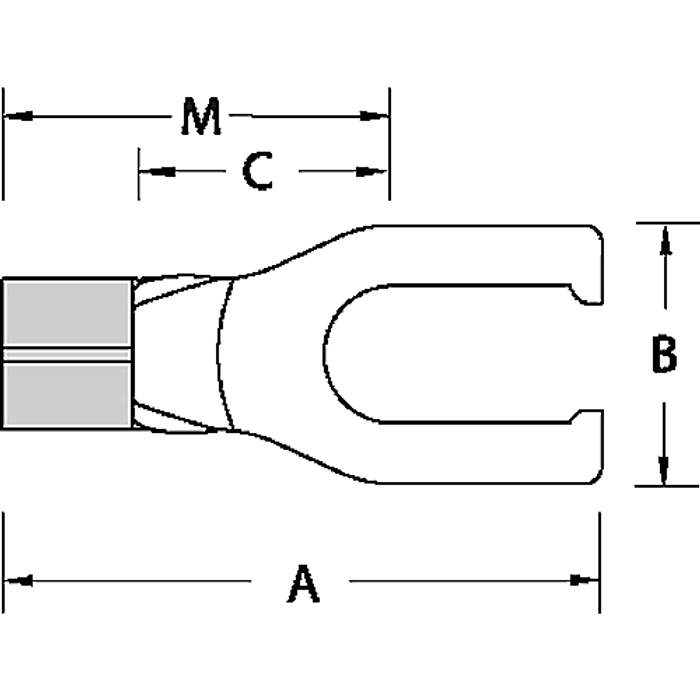

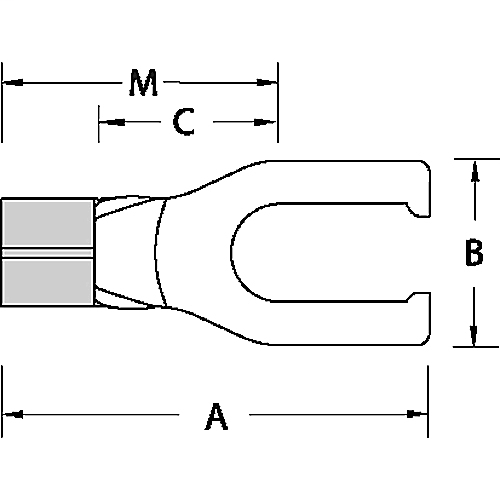

- A Inches :
- 1.35
- Application Tools:
- WT1255
- B Inches :
- 0.49
- Color:
- Yellow
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 50
- Insulation Type:
- Heat-Shrinkable Polyolefin
- Material:
- Copper
- Maximum Insulation Inches :
- 0.25
- Order Multiple:
- 50
- Outer Package:
- 250
- Package Height:
- 4.4
- Package Length:
- 9.9
- Package Type:
- Standard
- Package Width:
- 7.4
- Product Group:
- Connectors
- Recommended Tool:
- ERG4255
- Rohs Compliance:
- Yes
- Stud Size:
- 4-Jan
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 2.5 lbs. per 1000
- Temperature Rating:
- 150°C
- Terminal Series:
- RCS
- Voltage Rating:
- 600V
- Wire Range:
- 10-Dec
- Department:
- Electrical
- Product Subgroup:
- Terminals
