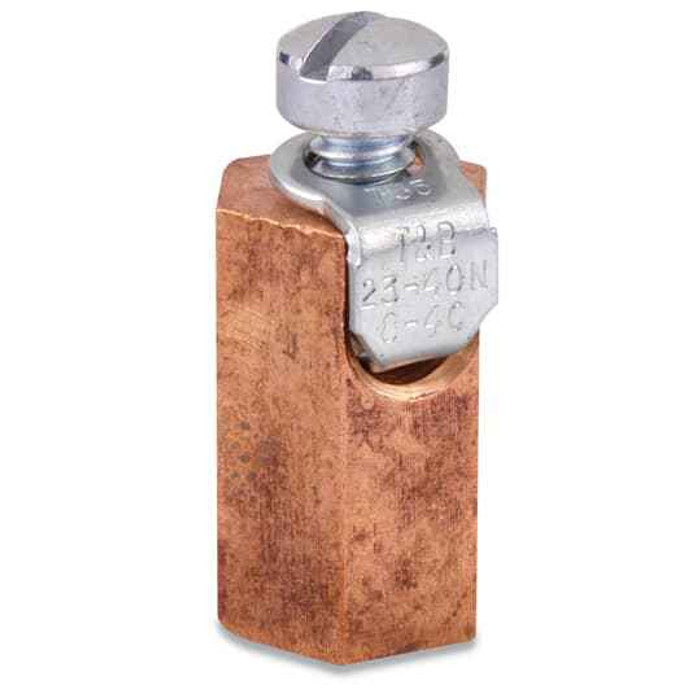

LOCKTITE CU FEM STUD CONN 2/0-4/0
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire & Cable Management
- Product Type:
- Locktite Connectors
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Copper
Blackburn 31267 – Frequently Asked Questions
1) What wire sizes does the Blackburn 31267 Locktite connector take?
The Blackburn 31267 is built for copper conductors from 2/0 through 4/0 AWG. Anything smaller than 2/0 or larger than 4/0 needs a different range connector, since a mechanical set screw connector only holds properly when the conductor fills its stated range.
2) Can I use the Blackburn 31267 on aluminum conductors?
No. The 31267 is a copper-bodied, copper-only connector for 2/0 to 4/0 conductors. For aluminum or mixed copper/aluminum runs you need a connector rated AL9CU or similar dual-rated device.
3) What does the female stud on the Blackburn 31267 connector do?
It is a female stud connector, so it threads onto a male stud, such as a transformer or switchgear terminal stud, and the set screw barrel accepts the 2/0 to 4/0 copper conductor. You are tapping a cable onto an existing stud rather than splicing two cables together.
4) Is the Blackburn 31267 sold individually or in a box?
It is sold each, so quantity one gets you a single connector, not a carton. Order per termination point when you are building out a panel or a set of stud connections.
5) What is the manufacturer part number for the Blackburn Locktite 2/0-4/0 female stud connector?
Blackburn part number 31267. That is the number to quote for a like-for-like replacement of an existing Locktite female stud connector in the 2/0 to 4/0 copper range. It is manufactured in Mexico.
