Long Arm Hex Key, 5/16-Inch
LL20 - spec sheet
Features
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
- Short Arm Length - 1-11/32-Inch. Long Arm Length - 6-1/32-Inch. Hex Size - 5/16-Inch
- Hex Key with rust and corrosion resistant surfaces
- Weight - 0.18 pounds
- Made in USA
Warnings
- NOT insulated. Will NOT protect against electrical shock.
- Do NOT use a pipe or similar extension to increase leverage.
- Always wear approved eye protection.
LL20 - spec sheet
Manufacturer Resources
Product Specs
- Hex Size:
- 5/16"
- Item Depth:
- 5.6250 in
- Item Height:
- 0.3380 in
- Item Weight:
- 0.1800 lbs
- Item Width:
- 1.5750 in
- Long Arm Length:
- 6.313" (16 cm)
- Short Arm Length:
- 1.563" (4 cm)
- Department:
- Electrical
- Product Group:
- Hand Tools
- Product Subgroup:
- Hammers & Wrenches
- Product Weight:
- 2.9 oz (82 g)
- Product Type:
- Hex Key
- Pack size (unit):
- 100
- Product Width:
- 1.575 in
- Product Height:
- 0.338 in
- Product Depth:
- 5.625 in
- Country Of Origin:
- United States
Klein Tools LL20 – Frequently Asked Questions
1) Is the Klein LL20 hex key insulated for work on live electrical equipment?
No. The LL20 is not insulated and will not protect against electrical shock, so it should not be used on energized equipment. De-energize and verify before using it inside a panel or enclosure. Klein also warns against slipping a pipe or other cheater bar over it for extra leverage, and to wear approved eye protection.
2) What hex size does the Klein LL20 drive?
5/16 inch, SAE, one size only. It will not serve as a substitute for an 8 mm metric socket head screw, and it is a single-size key rather than a folding or indexed set, so pick up the other fractional sizes separately if you are building out a full range.

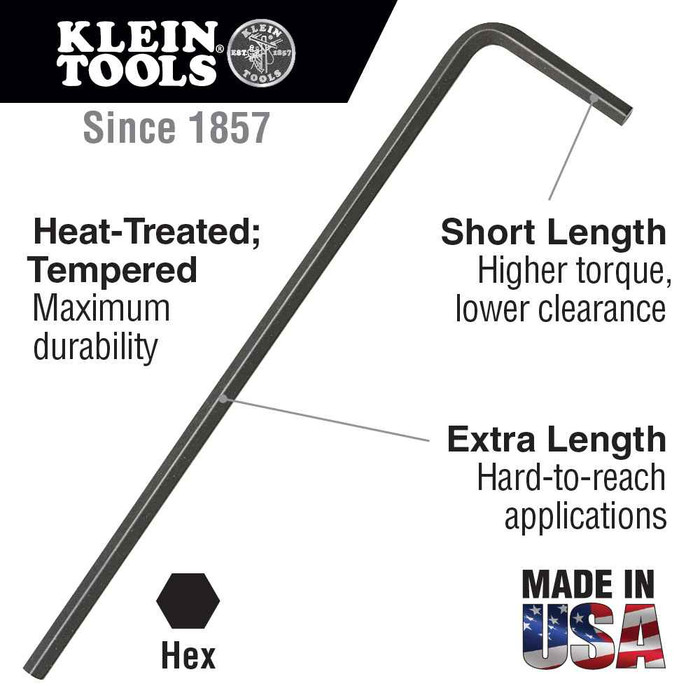

3) Why choose a long arm hex key instead of a standard short one?
Reach. On the LL20 the long leg runs 6.313 inches (16 cm) against a 1.563 inch (4 cm) short leg, so you can get a 5/16 inch socket head down into a recessed bore, past a bus bar, or through a knockout where a stubby key bottoms out. Use the short leg in the handle position when you need torque in tight quarters, and the long leg when you need to reach and spin fast.
4) Is the Klein LL20 hex key made in the USA?
Yes, the LL20 is made in the USA, which matters if you are buying against a domestic-content requirement on a public or institutional job. The manufacturer part number to put on the purchase order is LL20.
5) Will the Klein LL20 hex key hold up in a damp utility vault or outdoor service work?
The LL20 is finished with rust and corrosion resistant surfaces, which is what you want for a key living in a service van or a pouch that sees weather. It is still a bare steel tool, so wipe it down after wet work.
6) How much does a single Klein LL20 hex key weigh, and will it fit a tool pouch?
It runs 2.9 oz (82 g), listed elsewhere as 0.18 lbs, and overall it measures 5.625 x 1.575 x 0.338 inches. That drops into a standard pouch pocket or a van drawer without a case.
