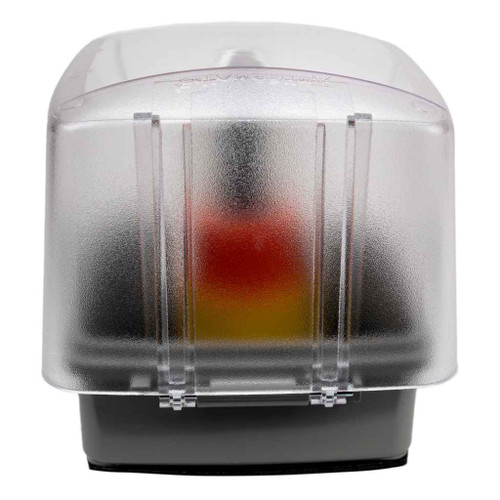

Intermatic Double-Gang Vertical In-Use Weatherproof Cover - Low-Profile Extra-Duty White Polycarbonate

Intermatic Double-Gang Vertical In-Use Weatherproof Cover - Low-Profile Extra-Duty White Polycarbonate

Professional weatherproof protection for outdoor electrical receptacles

The Intermatic Double-Gang Vertical In-Use Weatherproof Cover delivers reliable outdoor protection with extra-duty construction and low-profile design. This professional-grade cover features heavy-duty UV stabilized polycarbonate construction, reinforced hinge pin engineering, and UL Type 3R certification for demanding outdoor applications. The white finish provides clean aesthetics while maintaining full paintability for custom installations.

Professional Features & Benefits

• Extra-Duty Construction: Reinforced hinge pin exceeds 40 lbf stress testing and 12 lbf impact rating ensures long-lasting durability in harsh outdoor conditions.
• Cold Weather Performance: Meets -60�F (-51�C) cold impact testing requirements for reliable operation in extreme temperature environments.
• UL Type 3R Certification: Complies with 2020 NEC Article 406.9(B)(1) for wet locations and extra-duty applications, ensuring code compliance and safety.
• Weather Seal Protection: 1/8" (3mm) thick neoprene gasket with mounting screw slits provides superior moisture protection and secure installation.
• Security Features: Lockable hasp accepts up to 0.19" diameter shank padlocks for theft prevention and unauthorized access control.
• UV Stabilized Materials: Heavy-duty polycarbonate cover, base, and inserts resist weathering and maintain structural integrity over time.
• Versatile Installation: 100% paintable surface allows custom color matching while double-gang vertical configuration accommodates multiple receptacles.

Technical Specifications

• Applications: Receptacle Protection
• Country Of Origin: Mexico
• Depth: 1.5 in
• Input Voltage Rating Range S : NA
• Marketing Description: Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base,
• Product Color: Clear;White
• Product Height: 5.5 in
• Product Length: NA NA
• Product Weight: NA lbs
• Product Width: 5.609 in
• Warranty Period: 1-Year limited

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Outdoor Receptacle Protection
• Commercial Building Exteriors
• Residential Outdoor Installations
• Industrial Facility Weatherproofing
• Marine and Coastal Environments
• Construction Site Power Distribution
• Municipal and Government Facilities

Why Choose Intermatic Quality?

Intermatic delivers proven reliability with UL Type 3R certification, CEC Article 26-702 compliance, and comprehensive 1-year limited warranty coverage. The extra-duty polycarbonate construction and reinforced engineering provide long-term durability for professional outdoor electrical installations.
