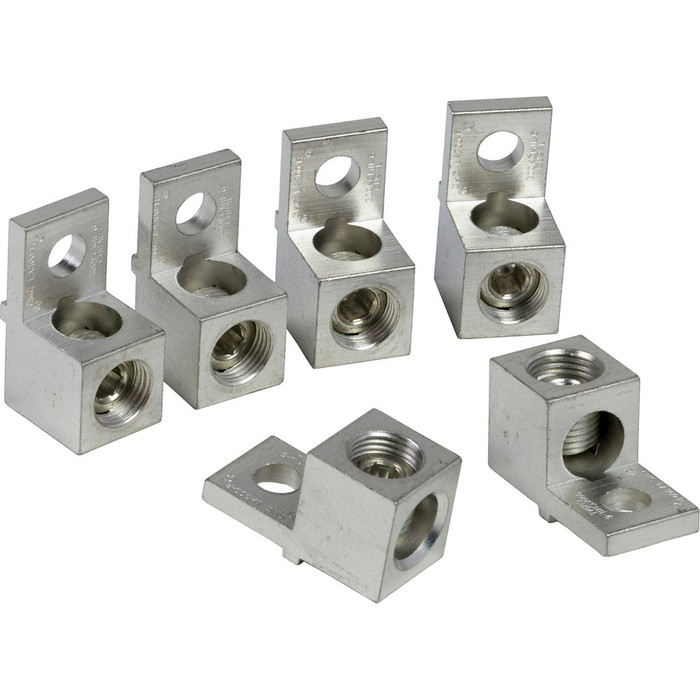

Square D TeSys GS 200A Lug Kit, Set of 6
The Square D TeSys GS 200A Lug Kit, Set of 6 is a genuine TeSys GS accessory engineered as a termination lug kit for 3-pole 200A IEC fuse switch-disconnectors. Each connection lug in this set of 6 is sized for 6 AWG wire with a 22.5 torque rating, and the kit can be used for upstream or downstream connection on TeSys GS disconnect switch distribution equipment. Manufactured by Schneider Electric and backed by an 18-month warranty, this lug kit ships packaged 18 ea per case for distributor and panel-builder stock.
Key Features
- Set of 6: Six termination lugs included per kit for complete 3-pole coverage on TeSys GS 200A disconnect switches.
- 3-Pole, 200A/250A Rated: TeSys Cage Terminal lug kit rated for 200A/250A rated current on 3-pole IEC fuse switch-disconnectors.
- 6 AWG Wire Size: Connection lug kit sized specifically for 6 AWG conductors for a secure, correctly-rated termination.
- 22.5 Torque Rating: Termination lugs are torque-rated at 22.5 for consistent, code-compliant tightening.
- Upstream or Downstream Connection: Flexible design allows use on either upstream or downstream wiring of the disconnect switch.
- TeSys Cage Terminal Design: Cage-style terminal construction for dependable conductor retention over time.
- Country of Origin: Manufactured in the United States by Schneider Electric.
Certifications & Compliance
- RoHS EUR Compliant
- Mercury Free
- Toxic Heavy Metal Free
- Reach Free of Substances of Very High Concern (SVHC)
Technical Specifications
- Manufacturer: Schneider Electric
- Warranty: 18 months
- Returnability: Yes
- Quantity Per Set: set of 6
- Packaging: 18 ea
- Country of Origin: United States
- Toxic Heavy Metal Free: Yes
- Mercury Free: Yes
Typical Applications
- TeSys GS Disconnect Switch Distribution
- 3-Pole IEC Fuse Switch-Disconnector Termination
- Industrial Motor Control and Distribution Panels
- Commercial Electrical Switchgear Installations
- OEM and Panel Builder Control Panel Construction
- Upstream and Downstream Feeder Wiring
Why Square D?
Square D by Schneider Electric engineers TeSys GS accessories like this lug kit for dependable, code-compliant termination on 3-pole 200A disconnect switch installations. With RoHS-compliant, mercury-free, toxic-heavy-metal-free construction and an 18-month warranty, this lug kit set delivers the reliable, professional-grade performance electrical contractors, OEMs, and panel builders expect from Square D distribution accessories.
Manufacturer Resources
Product Specs
- Product Type:
- Equipment Lug Kit
- Amperage Rating:
- 200A
- Configuration:
- 3-Pole
- Series:
- TeSys GS
- Country Of Origin:
- United States
- Department:
- Electrical
- Product Group:
- Wire Connectors & Terminals
- Product Subgroup:
- Lugs & Terminals
Square D GS1AW403 – Frequently Asked Questions
1) What wire size do these TeSys GS 200A connection lugs take?
Each lug in the set is sized for 6 AWG conductors. If your feeder is larger than 6 AWG, these cage terminals are the wrong termination for that conductor, so size the cable to the lug or pick a lug kit rated for the larger wire.
2) This lug kit is rated 200A but my switch is 250A - is it still the right part?
The kit is described as rated for 200A/250A rated current on 3-pole IEC fuse switch-disconnectors, so it covers both ratings in the TeSys GS range. The limiting factor on the job is the 6 AWG wire size the lugs accept, not the switch rating.
3) Is the ABB OZXA-400 disconnect switch lug kit a substitute for the Square D GS1AW403 lug kit?
No. The GS1AW403 is a TeSys GS termination lug kit built for 3-pole 200A IEC fuse switch-disconnectors, with each of the six lugs sized for 6 AWG wire. The ABB OZXA-400 is a replacement disconnect switch lug kit for the ABB OT/OS400 series switches. Both are switch-mounted lug kits, but each is machined to its own manufacturer's terminal pattern, so the ABB kit belongs on an OT/OS400 body and the Square D kit on a TeSys GS body. Match the kit to the switch you actually have in the panel.
4) We need lugs for a 400A main - can the Square D TeSys GS 200A lug kit be used?
No. The TeSys GS GS1AW403 kit is rated 200A and its lugs take 6 AWG conductors, which is far below a 400A feeder. For that range the ABB MLA A-Series main lug kit uses pressure-type lugs and covers 400A to 600A. Size the lug kit to the amperage of the device it terminates, not to the panel it sits in.
5) How many lugs come in the Square D TeSys GS 200A lug kit?
Six lugs per kit, which covers both line and load ends of a 3-pole switch (three poles upstream, three downstream). The kit is packaged 18 each per case for panel-builder and distributor stock.
6) Can I use the same lug kit on both the line and load side of the disconnect?
Yes. The TeSys GS 200A connection lugs are specified for upstream or downstream connection, so the same six lugs serve either end of the switch. No separate line-side and load-side part numbers to order.
7) What torque do the TeSys GS cage terminals get tightened to?
The termination lugs carry a 22.5 torque rating. Tighten to that figure with a calibrated torque wrench or screwdriver; cage-style terminals rely on correct torque for long-term conductor retention, and under-torqued terminals are the usual cause of heating at a disconnect.
8) Are there lug kits for other brands of disconnect switch if I am not running TeSys GS?
Yes, lug kits are switch-specific. For ABB disconnects there is the ABB OT/OS400 Series replacement disconnect switch lug kit, and for Eaton the Series C line and load terminal accessory kit. For panelboard main lugs rather than a switch, the ABB MLA A-Series main lug kit uses pressure-type lugs rated 400A-600A. Match the kit to the switch or panel family you have.
9) Can I use this kit as a neutral or ground lug kit in a panel?
No. These are pole termination lugs for a 3-pole TeSys GS fuse switch-disconnector, not bonded neutral or ground hardware. For a neutral or ground bar lug in a load center, a dedicated kit such as the ABB TLK2 Series PowerMark Gold neutral/ground lug kit for CU/AL or the ABB TNLK2 Series neutral lug kit is the correct part.
10) What is the difference between the Square D GS1AW403 lug kit and the ABB TLK2 neutral/ground lug kit?
They terminate different parts of the circuit. The Square D GS1AW403 is a set of six phase-termination lugs for the upstream or downstream side of a 3-pole 200A TeSys GS fuse switch-disconnector. The ABB TLK2 PowerMark Gold kit is a neutral/ground lug kit rated for CU/AL conductors, intended for the neutral and grounding bar in a PowerMark Gold panel. A neutral/ground kit will not serve as a switch phase termination, and the GS1AW403 is not a bonding accessory.
11) Is the Eaton Series C line and load terminal kit equivalent to the Square D TeSys GS 200A lug kit?
They fill the same role on different gear. Both are line and load side termination accessories: the Eaton 3T20FB is a Series C line and load terminal accessory kit, and the Square D GS1AW403 provides six cage-terminal lugs for upstream or downstream connection on 3-pole TeSys GS 200A fuse switch-disconnectors with 6 AWG conductors. Because terminal kits are keyed to the breaker or switch frame they bolt to, the Eaton kit is for Series C frames and the Square D kit for TeSys GS. Confirm the device family before ordering either.
12) I need a neutral lug kit for a PowerMark Gold panel - will the Square D TeSys GS kit work?
No. The GS1AW403 is a 3-pole phase lug kit for TeSys GS 200A fuse switch-disconnectors. For PowerMark Gold neutral terminations, ABB offers the TNLK2 series neutral lug kit for CU/AL conductors. The two are not interchangeable; one lands switch phases, the other lands neutrals on a panel bar.
13) Does the Square D GS1AW403 lug kit meet RoHS and SVHC requirements for our spec?
The kit is RoHS EUR compliant, mercury free, free of toxic heavy metals, and REACH free of Substances of Very High Concern. It is manufactured in the United States by Schneider Electric, which also helps on domestic-content questions in institutional and government procurement.
14) What part number should I order for TeSys GS 200A termination lugs?
Order Square D part number GS1AW403, the TeSys GS 200A lug kit, set of 6. That single part number covers all six terminations for one 3-pole switch.
