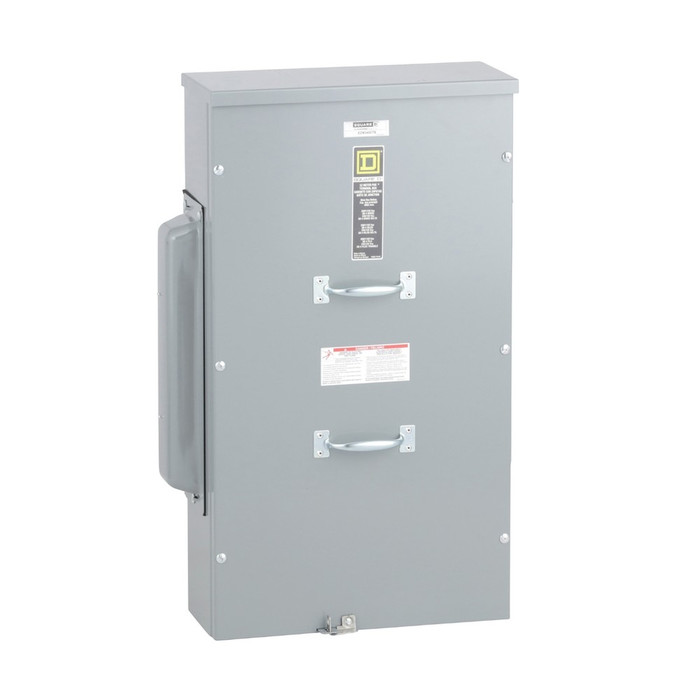

Square D EZ Meter-Pak Main Lugs Meter Center, Painted Steel, NEMA 3R

Square D EZ Meter-Pak Main Lugs Meter Center, Painted Steel, NEMA 3R

The Square D EZ Meter-Pak Main Lugs Meter Center delivers reliable, compact multi-metering for multi-unit residential and commercial construction. This unit features a 400A main lugs termination on an 800A rated bus, rated 240VAC max across a 3-phase, 4-wire configuration, and is housed in a painted steel, NEMA 3R enclosure suitable for both overhead (OH) and underground (UG) service feeds. The EZ Meter-Pak platform is available from 225A to 2000A to match a range of multi-metering service requirements.

Key Features

• Main Rated Current: 400A main lugs termination for incoming service conductors.
• Bus Rated Current: 800A rated bus supports multi-metering distribution capacity.
• Durable Construction: Painted steel enclosure construction for long-term durability.
• Electrical Connection: Lugs terminal accepting 1 AWG - 6...300 kcmil aluminum/copper conductors, plus a ground lug.
• Operational Voltage: 240VAC max; rated for 208Y/120V AC or 240/120V delta AC service.
• Wiring Configuration: 3-phase, 4-wire (3 phase in / 3 phase out).
• Service Feed Location: Suitable for overhead (OH) or underground (UG) service entrances.
• NEMA 3R Rated: Enclosure rated for outdoor and wet-location meter bank installations.
• Rotating Mounting Brackets: Pivoting brackets allow drilling holes without moving the device.

Certifications & Compliance

• UL Listed
• NEMA 3R Rated Enclosure
• Mercury Free
• RoHS EUR Compliant with Exemptions

Technical Specifications

• Warranty: 18 months
• Warranty Period: 18 months
• Sustainable Packaging: No
• Mercury Free: Yes
• Packaging Without Single Use Plastic: No
• Tier Id: 2
• ROHS Eur In Scope: Yes
• Recycled Metal Content At Cr Level: 0 %
• H And D Enrichment Assignment: no
• Serviceability: No
• With Recycled Cardboard: No
• WEEE Product Category: 5
• Total Lifecycle Carbon Footprint: 604 kg CO2 eq.
• China ROHS In Scope: No
• Return Indicator: Y
• Nema Degree Of Protection: NEMA 3R
• Enclosure Material: painted steel
• Take Back: No
• Tier: 2
• Returnability: Yes

Typical Applications

• Multi-Unit Residential Meter Centers
• Commercial Multi-Metering Installations
• Overhead and Underground Service Entrances
• Outdoor and Wet-Location Meter Bank Installations
• New Construction and Multi-Tenant Retrofit Projects

Why Square D?

Square D engineers the EZ Meter-Pak line with painted steel enclosures, UL Listed main lugs terminations, and NEMA 3R protection built to withstand outdoor and wet-location service environments. Rotating mounting brackets simplify installation, while mercury-free construction and RoHS-compliant materials support responsible, code-compliant multi-metering deployments for contractors and property managers.
