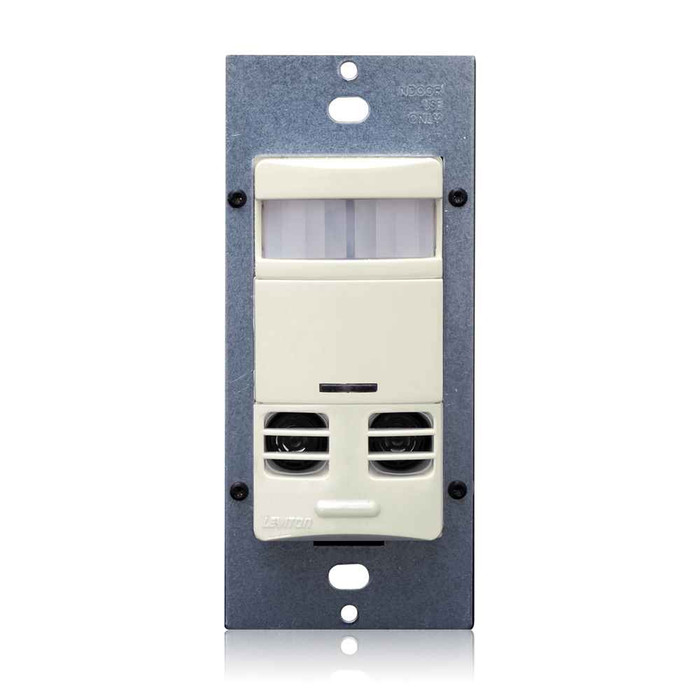

Leviton OSSMT-TMT Manual ON mu...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$196.97
$146.97
Leviton OSSMT-TMT Manual ON multi-tech wall box vacancy sensor w/neutral wire lighting control, 120/208/220/230/240/277v, 50/60Hz, CEC Title 20/24 Compliant, 30s-30m Time Delays, Ambient Light Override, Self Adjusting, Field Configurable, Light Almon

Leviton OSSMT-TMT Manual ON multi-tech wall box vacancy sensor w/neutral wire lighting control, 120/208/220/230/240/277v, 50/60Hz, CEC Title 20/24 Compliant, 30s-30m Time Delays, Ambient Light Override, Self Adjusting, Field Configurable, Light Almon

(No reviews yet) Write a Review

Model: OSSMT-TMT
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$196.97
$146.97
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Manual ON multi-tech wall box vacancy sensor w/neutral wire lighting control, 120/208/220/230/240/277v, 50/60Hz, CEC Title 20/24 Compliant, 30s-30m Time Delays, Ambient Light Override, Self Adjusting, Field Configurable, Light Almond, NAFTA Compliant.

Manufacturer Resources

Product Specs

Code Compliance:
California Title 24
Consumption Ma :
N/A
Coverage Sq Ft :
2400 Sq. Ft.
Device Type:
Vacancy Sensor
Hvac Relay:
N/A
Led Color:
Green and Red
Load Rating:
800W@120V INC 1200VA@120V 2700VA@277V FL
Mounting Height Ft :
4 Ft.
Neutral Wire Connection:
Required
On Off Configurations:
Manual ON/Auto OFF
Operating Temperature:
0°C to 50°C
Power Pack:
External Power Pack Not Required
Product Line:
OSSMT
Relative Humidity:
20% to 90% non-condensing
Standards And Certifications:
UL/cUL
Storage Temperature Range:
-10°C to 85°C
Time Delay:
30s-30m
Product Group:
Sensors
Department:
Electrical
Product Subgroup:
Occupancy Sensors
Adjustment:
Self-Adjusting
Grade:
Commercial Specification Grade
Motor:
1/4 HP @ 120V
Pattern:
180°
Photocell:
Internal
Technology:
Multi-Technology PIR/Ultrasonic
Wallplate:
Order Separately
Product Voltage:
120/277 VAC
Product Size:
4.06" H x 1.75" W x 1.85" D (103.2mm x 44.4mm x 47.2mm)
Product Color:
Light Almond
Mounting Method:
Wall Switch
Switch Classification:
Single-Pole
