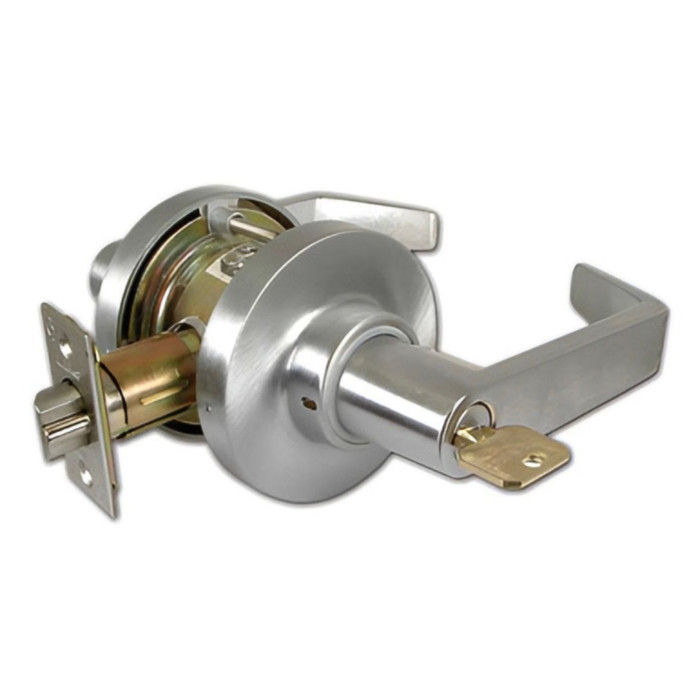

Marks USA 195AQ Exit Lever Lockset - Grade 1 Survivor Series, American Lever

Marks USA 195AQ Exit Lever Lockset - Grade 1 Survivor Series, American Lever

The Marks USA Survivor leverset has a unique "clutch" mechanism that radically reduces the wear and abuse that typical cylindrical lever sets endure. When locked, the levers of the Survivor disengage from the retractor and other interior mechanisms of the lock. The levers of the Survivor swing freely, without resistance. This reduces the amount of wear on lock components and eliminates "lever droop". The use of a clutch results in longer lasting, lower maintenance, eloquent solution.

• Strike Size: 4-7/8 Inch

• Finish: Bright Polished Brass

• Strike Number: 1135

• Latch Number: 1834

• Finish Description: Bright Polished Brass

• Function: AQ-Exit

• Latch Type: Deadlocking

• Function Description:
  Deadlocking latch bolt by knobs/levers except when outside knob/lever is locked by turn button inside. Turn button must be manually unlocked to operate outside knob/lever. Inside knob/lever always free.

• ANSI Function: F83

• Grade: ANSI/BHMA Grade 1

• ADA Compliant: YES

• Front Size: 1-1/8" x 2-1/4"

• Handle Type: Lever

• Strike: ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

• Function Family: Exit Lock

• Bore Size: 2.1250

• Standards: ANSI/BHMA A156.2; UL and CUL Listed

• Lever Style: 195 Lever

• Product Type: Cylindrical Lock

• Rose/Escutcheon Trim: Round Rose

• Features: Thru-Bolted Spring Loaded Rose

• Strike Type: ASA Curved Lip

• Backset: 2-3/4 Inch

• Series: 195 Series

• Included Components: (2) Keys

• Cylinder Type Used: Conventional

• Warranty: Lifetime mechanical

• Color Code: 605/US3

• Rose Diameter: 3-7/16 Inch

• Latch Throw: 9/16 Inch

• Finish Family: Polished Brass

• Door Cross Bore: 2.125 Inch

• Strike Lip: 1-1/4 Inch

• Trim Material: Solid Cast Zamac (Lever)

• Manufacturer Parent: Napco Security Technologies

• Latch Bolt Material: Stainless Steel

• Lever Style Family: Straight Return Lever
