Marks USA MAR195F 195F Storeroom Lever Lockset — Grade 1 Survivor Series, American Lever, ADA Compliant

Marks USA 195F Storeroom Lever Lockset — Grade 1 Survivor Series, ADA Compliant

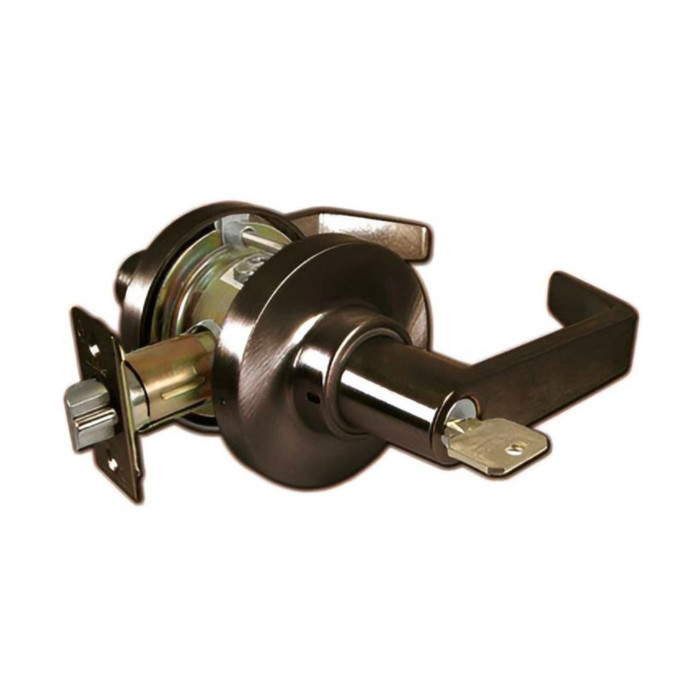

The Marks USA 195F Storeroom Lever Lockset is a commercial-grade cylindrical lock engineered for demanding storeroom applications requiring controlled outside access. Operating under ANSI Function F86, the outside knob/lever remains always locked and rigid while the inside lever remains always free, with the deadlocking latchbolt retracted by key from outside or by rotating the inside lever. Built to exceed BHMA Grade 1 specifications by 300% — surpassing 3.6 million cycles — this 195 Series lockset features a unique stainless steel clutch mechanism and bronze bearings that dramatically reduce wear, resist abuse, and eliminate lever droop. The front measures 1-1/8" x 2-1/4" with a 2-3/4" backset and a 9/16" latch throw, and is backed by the Marks lifetime mechanical warranty.

Key Features

• Exceptional Durability — 3.6 Million Cycles: Exceeds BHMA Grade 1 specifications by 300%, tested to over 3.6 million cycles for unmatched long-term reliability in high-traffic commercial environments.
• Stainless Steel Clutch & Bronze Bearings: Unique internal clutch mechanism combined with bronze bearings dramatically reduces wear and abuse while eliminating lever droop for consistent, smooth operation.
• ANSI Function F86 — Storeroom: Outside knob/lever is always locked and rigid; latchbolt is retracted by key from outside or by rotating the inside lever, which remains always free — ideal for storeroom security.
• Precise Dimensional Specifications: Features a 1-1/8" x 2-1/4" front size, 2-3/4" backset, and 9/16" latch throw for accurate door preparation and reliable fit.
• ANSI Strike Included: Supplied with an ANSI-standard 1-1/4" x 4-7/8" strike with 1-1/4" lip and square corner for a complete, code-compliant installation.
• ADA Compliant Lever Design: American lever style meets ADA accessibility requirements, making it suitable for public and commercial facilities requiring accessible hardware.
• Lifetime Mechanical Warranty: Backed by the Marks lifetime mechanical warranty, providing long-term confidence and protection for commercial installations.
• Competitively Priced for Value: High-quality, longer-lasting, lower-maintenance design delivers exceptional value without compromising professional-grade performance.

Certifications & Compliance

• ANSI/BHMA Grade 1 — Exceeds specification by 300% (3.6 million cycles)
• UL Listed
• ADA Compliant
• ANSI Function F86 (Storeroom)
• Marks Lifetime Mechanical Warranty

Technical Specifications

• Series: 195 Series
• Latch Throw: 9/16"
• Product Group: Mechanical Locks
• Product Subgroup: Bored Locksets
• Product Type: Cylindrical Locks
• Subcategory: Cylindrical Locks
• ANSI/BHMA: ANSI/BHMA, UL Listed
• Commercial/Residential: Commercial
• Lock Type: Cylindrical
• Function Description: Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.
• Front Size: 1-1/8" x 2-1/4"
• ADA Compliant: Yes
• ANSI Function: F86
• Product Attribute: Cylindrical Locks
• Strike Classification: ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
• Product Category: Mechanical Locks
• Backset (Distance): 2-3/4"
• Department: Door Hardware

Typical Applications

• Commercial Office Building Storerooms and Supply Closets
• Educational Facility Storage and Utility Rooms
• Healthcare Institution Medication and Supply Storage
• Retail Establishment Back-of-House and Stockroom Doors
• Industrial and Warehouse Facility Controlled Access Areas
• Multi-Tenant Residential Property Common Storage Areas
• Government and Municipal Building Secure Storage Rooms

Why Marks USA 195F?

Marks USA 195 Series cylindrical locksets are engineered to outperform the competition, exceeding BHMA Grade 1 specifications by 300% with a tested life of over 3.6 million cycles. The proprietary stainless steel clutch and bronze bearing construction delivers a higher-quality, longer-lasting, and lower-maintenance solution that resists the wear and abuse of demanding commercial environments. For facilities that require dependable storeroom security with ADA-compliant lever access, the Marks USA 195F is a proven, professional-grade choice.
