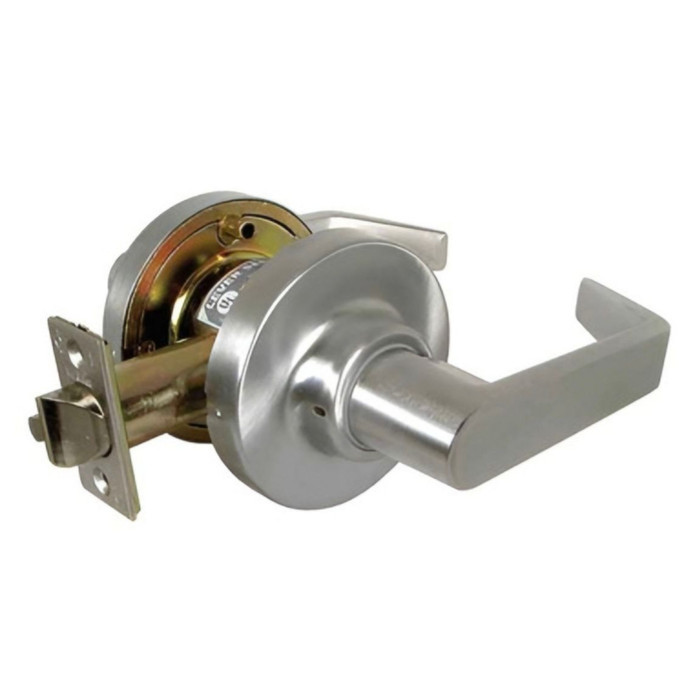

Marks USA 195N Passage Lever Lockset — Grade 1 Survivor Series, American Lever, ADA Compliant

Marks USA 195N Passage Lever Lockset — Grade 1 Survivor Series, American Lever, ADA Compliant

The Marks USA 195N is a heavy-duty Grade 1 cylindrical passage lever lockset from the Survivor Series, engineered for demanding commercial applications where long-term reliability and low maintenance are essential. Featuring the American Lever design, this ANSI F75 passage function lockset retracts the latch by lever at all times, making it ideal for hallways, corridors, and closets where unrestricted passage is required. Built to exceed BHMA Grade 1 specifications by 300% — tested to over 3.6 million cycles — the 195N delivers exceptional durability backed by a Marks lifetime mechanical warranty. The unit is ADA compliant and UL Listed, meeting the rigorous demands of commercial door hardware installations.

Key Features

• Exceeds BHMA Grade 1 by 300%: Tested to over 3.6 million cycles, far surpassing standard Grade 1 requirements for unmatched long-term durability in high-traffic commercial environments.
• Stainless Steel Clutch Mechanism: Unique stainless steel "clutch" combined with bronze bearings dramatically reduces wear and abuse while eliminating lever droop for consistent, smooth operation over the life of the product.
• ANSI F75 Passage Function: Latch retracted by levers at all times — no keying required — providing free, unrestricted passage suitable for hallways, corridors, and closet applications.
• Precision Latch Specifications: 9/16" latch throw with a deadlocking latch type and 2-3/4" backset for reliable door latching and security against accidental retraction.
• Front & Strike Dimensions: 1-1/8" x 2-1/4" front size with an ANSI-standard 1-1/4" x 4-7/8" square corner strike (1-1/4" lip) for straightforward installation on standard commercial door preparations.
• ADA Compliant Design: American Lever design meets ADA accessibility requirements, ensuring compliance in public and commercial facilities.
• High-Quality, Lower-Maintenance Construction: Engineered for longer service life with reduced maintenance demands, offering exceptional value in a competitively priced commercial-grade package.
• Lifetime Mechanical Warranty: Backed by Marks USA's lifetime mechanical warranty for added confidence and long-term investment protection.

Certifications & Compliance

• ANSI/BHMA Grade 1 — Exceeds specification by 300% (3.6 million cycles)
• UL Listed
• ADA Compliant
• Marks USA Lifetime Mechanical Warranty

Technical Specifications

• Series: 195 Series
• Latch Throw: 9/16"
• Product Group: Mechanical Locks
• Product Subgroup: Bored Locksets
• Product Type: Cylindrical Locks
• Subcategory: Cylindrical Locks
• ANSI/BHMA: ANSI/BHMA, UL Listed
• Commercial/Residential: Commercial
• Lock Type: Cylindrical
• Function Description: Latch retracted by knobs/levers at all times
• Front Size: 1-1/8" x 2-1/4"
• ADA Compliant: Yes
• Keyed: No
• ANSI Function: F75
• Product Attribute: Cylindrical Locks
• Product Function: Passage/Hall/Closet
• Latch Type Specification: Deadlocking
• Strike Classification: ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
• Product Category: Mechanical Locks
• Backset (Distance): 2-3/4"
• Department: Door Hardware

Typical Applications

• Commercial Office Building Corridors and Hallways
• Educational Facility Classrooms and Common Areas
• Healthcare Institution Interior Passage Doors
• Retail Establishment Stock Rooms and Interior Doors
• Multi-Tenant Residential Building Common Areas
• Government and Municipal Building Interior Passages
• Industrial and Warehouse Facility Interior Doors

Why Marks USA 195N?

Marks USA 195N Survivor Series lever locksets are built to a higher standard, with a unique stainless steel clutch and bronze bearing system that eliminates lever droop and dramatically reduces wear — delivering performance that exceeds BHMA Grade 1 specifications by 300% at over 3.6 million tested cycles. Engineered for the rigors of commercial door hardware applications, the 195N combines ADA-compliant American Lever design, UL Listing, and a lifetime mechanical warranty into a competitively priced package that professionals can rely on for years of low-maintenance service.
