Marks USA MAR195RDA 195RDA Vestibule Clutched Lever Lockset — Grade 1, Small Format IC, 3-Hour Fire Rated

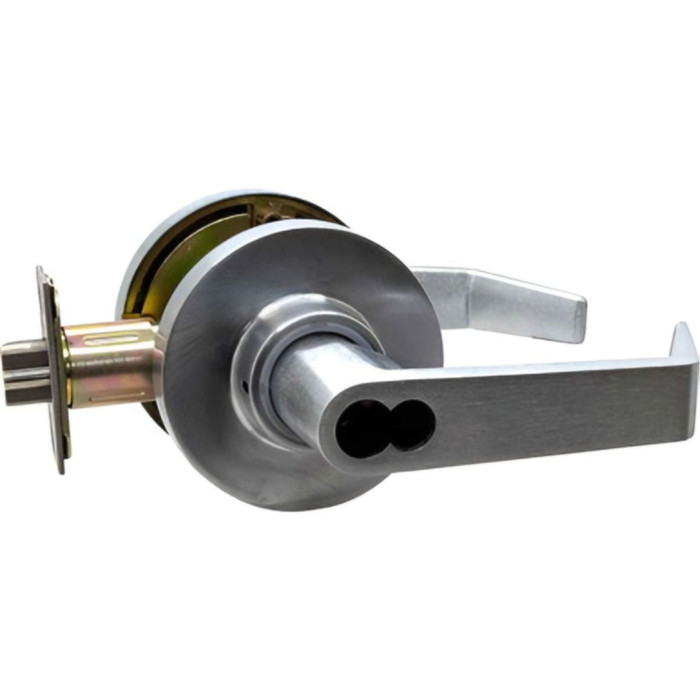

Marks USA 195RDA Vestibule Clutched Lever Lockset — Grade 1, Small Format IC, 3-Hour Fire Rated

The Marks USA 195RDA is a commercial-grade Vestibule Clutched Lever Lockset from the 195 Series, engineered with a unique stainless steel clutch mechanism that disengages the levers from the retractor when locked — allowing them to swing freely without resistance, eliminating lever droop and dramatically reducing wear on internal components. Built on a cylindrical lock chassis with cast retractors on bronze roller bearings, this lockset exceeds BHMA Grade 1 specifications by 300%, achieving over 3.6 million cycles. It supports 2-3/8" and 2-3/4" backsets, accommodates door thicknesses of 1-5/8" to 1-7/8" (with optional K1904 spacer for 1-3/8" doors), and carries a 3-Hour Fire Rating along with ANSI/BHMA and UL Listed certifications.

Key Features

• Exceeds BHMA Grade 1 by 300%: Tested to over 3.6 million cycles, far surpassing standard Grade 1 requirements for long-term reliability in high-traffic commercial applications.
• Unique Stainless Steel Clutch Mechanism: When locked, levers disengage from the retractor and swing freely without resistance, eliminating lever droop and reducing wear on internal lock components.
• Cast Retractors on Bronze Roller Bearings: Solid cast zamac levers with 1/2" return ride on bronze roller bearings for smooth, durable operation across millions of cycles.
• Flexible Backset & Door Thickness Compatibility: Accommodates 2-3/8" and 2-3/4" backsets; fits door thicknesses of 1-5/8" to 1-7/8"; use K1904 spacer for 1-3/8" doors.
• Latch & Strike Specifications: Includes Latch #1834 with 1-1/8" x 2-1/4" front, 9/16" throw, and stainless steel nose; paired with Strike #1135, a 4-7/8" ASA curved lip strike.
• Thru-Bolted Rose Assembly: 3-7/16" diameter roses are spring-loaded and secured with 2 #10 thru-bolts for a solid, rattle-free installation.
• 3-Hour Fire Rated: Certified for use in fire-rated door assemblies, supporting life-safety compliance in commercial environments.
• Small Format Interchangeable Core (SFIC): Accepts Small Format IC cylinders for flexible key control and simplified re-keying in master key systems.
• Marks Lifetime Mechanical Warranty: Backed by Marks USA's Lifetime Mechanical Warranty for long-term confidence and protection.

Certifications & Compliance

• ANSI/BHMA Grade 1 — Exceeds by 300% (3.6 million cycles)
• UL Listed
• 3-Hour Fire Rated
• ADA Compliant
• Marks Lifetime Mechanical Warranty

Technical Specifications

• Series: 195 Series
• Product Group: Mechanical Locks
• Product Subgroup: Bored Locksets
• ANSI/BHMA: ANSI/BHMA, UL Listed
• Commercial/Residential: Commercial
• Function Description: Latch retracted by knobs/levers at all times
• ADA Compliant: Yes
• Keyed: No
• ANSI Function: F75
• Product Function: Passage/Hall/Closet
• Latch Type Specification: Deadlocking
• Product Category: Mechanical Locks
• Department: Door Hardware

Typical Applications

• Commercial Office Buildings and Vestibule Entries
• Educational Facilities and School Corridors
• Healthcare Institutions and Hospital Corridors
• Retail Establishments and Store Entries
• Government and Municipal Buildings
• Multi-Tenant Residential and Mixed-Use Properties
• Industrial and Warehouse Facilities

Why Marks USA 195RDA?

Marks USA 195RDA Vestibule Clutched Lever Locksets deliver professional-grade reliability through a patented stainless steel clutch design and cast retractors on bronze roller bearings — a combination that exceeds BHMA Grade 1 specifications by 300% with over 3.6 million tested cycles. Engineered for demanding commercial applications where low maintenance, long service life, and fire-rated performance are essential, the 195RDA is a trusted solution for high-traffic door openings requiring dependable, code-compliant hardware.
