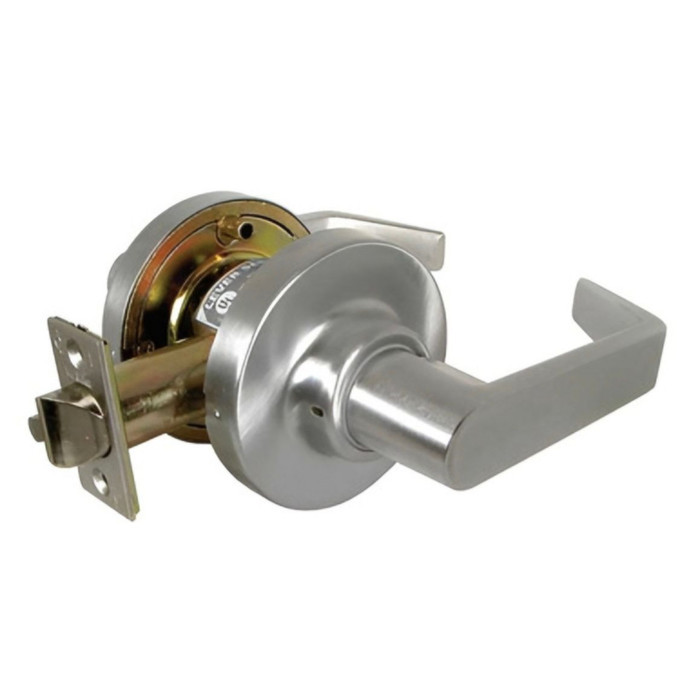

Marks USA 295L Privacy Lever Lockset - Curved Lever, 2-3/4in Backset, ANSI Strike, Grade 1

Marks USA MAR295L 295L Privacy Lever Lockset — Curved Lever, 2-3/4" Backset, ANSI Strike, Grade 1, ADA Compliant

(No reviews yet) Write a Review

Model: 295L-26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$321.78
$162.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Marks USA 295L Privacy Lever Lockset — Curved Lever, 2-3/4" Backset, ANSI Strike, Grade 1, ADA Compliant

The Marks USA 295L is a commercial-grade cylindrical Privacy Lever Lockset engineered for demanding, high-traffic environments where durability and long-term performance are essential. Built on the Marks USA Survivor platform, this lockset features a unique stainless steel "clutch" mechanism combined with bronze roller bearings that disengage the levers from the retractor when locked, eliminating lever droop and dramatically reducing internal wear. Rated to exceed BHMA Grade 1 specifications by 300% — surpassing 3.6 million cycles — and carrying a 3-Hour Fire Rating, the 295L is designed for doors with a 2-3/4" backset and accommodates door thicknesses from 1-5/8" to 1-7/8" (with optional K1904 spacer for 1-3/8" doors). ADA compliant and backed by the Marks Lifetime Mechanical Warranty, this lockset delivers professional-grade reliability for commercial applications.

Key Features

  • Exceptional Cycle Durability: Exceeds BHMA Grade 1 specifications by 300%, tested to over 3.6 million cycles for unmatched long-term reliability in high-traffic commercial settings.
  • Unique Clutch Mechanism: Stainless steel "clutch" disengages levers from the retractor when locked, eliminating lever droop and significantly reducing wear on internal lock components.
  • Cast Bronze Roller Bearings: Cylindrical lock chassis constructed with cast retractors on bronze roller bearings for smooth, durable operation over millions of cycles.
  • Backset & Door Compatibility: Designed for a 2-3/4" backset (also available in 2-3/8"); accommodates door thicknesses of 1-5/8" to 1-7/8"; use K1904 spacer for 1-3/8" doors.
  • Latch Specifications: Latch #1834 with 1-1/8" x 2-1/4" front, 9/16" throw, and stainless steel nose for reliable deadlocking performance.
  • Solid Cast Zamac Levers: Curved lever design in solid cast zamac with 1/2" return; thru-bolted roses at 3-7/16" diameter with spring-loaded 2-#10 thru-bolts for secure mounting.
  • ANSI Curved Lip Strike Included: Ships with Strike #1135, a 4-7/8" ASA curved lip strike for standard ANSI-compliant installation.
  • Marks Lifetime Mechanical Warranty: Backed by Marks USA's Lifetime Mechanical Warranty for long-term confidence and protection.

Certifications & Compliance

  • ANSI/BHMA Grade 1 — Exceeds specification by 300% (3.6 million cycles)
  • UL Listed
  • 3-Hour Fire Rated
  • ADA Compliant
  • Marks Lifetime Mechanical Warranty

Technical Specifications

  • Series: 295 Series
  • Product Group: Mechanical Locks
  • Product Subgroup: Bored Locksets
  • ANSI/BHMA: ANSI/BHMA, UL Listed
  • Commercial/Residential: Commercial
  • Function Description: Latch retracted by knobs/levers at all times
  • ADA Compliant: Yes
  • Product Function: Passage/Hall/Closet
  • Latch Type Specification: Deadlocking
  • Strike Classification: ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
  • Product Category: Mechanical Locks
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings and Private Offices
  • Healthcare Facilities and Patient Rooms
  • Educational Institutions and Classroom Corridors
  • Hospitality and Hotel Guest Rooms
  • Retail Establishments and Back-of-House Areas
  • Multi-Tenant Residential and Apartment Buildings
  • Government and Municipal Buildings

Why Marks USA 295L?

Marks USA 295L Lever Locksets are built on a foundation of proven commercial-grade engineering, featuring solid cast zamac levers, bronze roller bearings, and a proprietary stainless steel clutch mechanism that sets the Survivor series apart from conventional cylindrical locksets. With a tested performance rating that exceeds BHMA Grade 1 by 300% — surpassing 3.6 million cycles — and a 3-Hour Fire Rating, the 295L is engineered for environments where dependable, low-maintenance performance is non-negotiable.

Manufacturer Resources

Marks USA Product Catalog

Product Specs

Series:
295 Series
Latch Throw:
9/16"
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Cylindrical Locks
Subcategory:
Cylindrical Locks
ANSI/BHMA:
ANSI/BHMA, UL Listed
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Function Description:
Latch retracted by knobs/levers at all times
Front Size:
1-1/8” x 2-1/4”
ADA Compliant:
Yes
Product Attribute:
Cylindrical Locks
Product Function:
Passage/Hall/Closet
Latch Type Specification:
Deadlocking
Strike Classification:
ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Marks USA 295L-26D – Frequently Asked Questions

1) What door thickness does the Marks USA 295L lever lockset fit?
The 295L covers doors from 1-5/8 inch to 1-7/8 inch as shipped, which takes in standard 1-3/4 inch commercial doors. For a thinner 1-3/8 inch door you need the K1904 spacer. If your openings run thicker than 1-7/8 inch, look at the Cal-Royal CAL30 Calypso passage lockset instead, which covers 1-3/8 inch to 2 inch, or the Dorma C150, rated 1-3/8 inch to 2-1/4 inch.
2) Is the Marks 295L a 2-3/4 inch backset lock, and can I get it for a 2-3/8 inch bore?
As specified, the 295L is built for a 2-3/4 inch backset, the usual commercial prep. Marks also makes the 295L in a 2-3/8 inch backset, which is the common residential-depth bore, so measure from the door edge to the center of the 2-1/8 inch cross bore before you order.
3) Will the Marks 295L latch work with the strike already in my frame?
Depends on what prep the frame has. The 295L latch has a 1-1/8 x 2-1/4 inch front and a 9/16 inch deadlocking throw, and it ships with the #1135 ANSI curved lip strike, 1-1/4 x 4-7/8 inch with a 1-1/4 inch lip and square corners. If your frame is already cut for a 4-7/8 inch ASA strike, it drops in. A frame prepped only for a small T-strike or a 2-3/4 inch strike plate will need the opening enlarged or a different strike.
4) Can the Marks USA 295L go on a fire rated door?
Yes. The 295L carries a 3-hour fire rating and is UL Listed, so it can be used on rated openings up to a 3-hour assembly. It is also ADA compliant, which matters if the opening is on an accessible route and needs lever operation without tight grasping.
5) What is the closest Grade 1 privacy lever lockset to the Marks USA 295L from another manufacturer?
The Cal-Royal CAL20 is the nearest mechanical match: it is a Grade 1 extra heavy duty privacy lock with a Privacy/Bed/Bath function, and it covers door thicknesses from 1-3/8 inch to 2 inch, where the Marks USA 295L covers 1-5/8 inch to 1-7/8 inch and uses the K1904 spacer for 1-3/8 inch doors. Both are cylindrical locksets, so the bored prep in the door is the same family of work.
6) I need the same door to also take a key. What replaces the Marks USA 295L when the opening must be keyed?
A privacy lockset like the Marks USA 295L has no key cylinder. For a keyed opening, the Dorma C853 is a Grade 1 entry keyed single cylinder lever lockset covering 1-3/8 inch to 2-1/4 inch doors, and the Dorma C150 is a Grade 1 heavy-duty cylindrical lock in an entry/office function over the same thickness range. The Orca Hardware OCL250 is a Grade 2 entrance cylindrical lockset for lighter duty.
7) Can I use an electronic privacy lock instead of the Marks USA 295L on the same door prep?
Yes, several Grade 1 electronic cylindrical locks run a privacy function. The Alarm Lock Trilogy 4100 is a Grade 1 electronic cylindrical lock with a Privacy/Bed/Bath function fitting 1-5/8 inch to 1-7/8 inch doors, the same thickness window the Marks USA 295L uses. The Schlage CO-100-CY-40-KP is a Grade 1 heavy duty standalone electronic privacy lock built for 1-3/4 inch doors, and the CENTRIOS CEB100 is a Grade 1 smart Bluetooth cylindrical lock in a privacy function. The 295L is purely mechanical with no battery or keypad.
8) The doors are 2 inch to 2-1/4 inch thick. What cylindrical lever should I use instead of the Marks USA 295L?
The Marks USA 295L accommodates 1-5/8 inch to 1-7/8 inch doors, with the K1904 spacer taking it down to 1-3/8 inch. For thicker leaves, the Dorma C150 entry/office lock and the Dorma C853 entrance lock are both Grade 1 cylindrical locksets rated 1-3/8 inch to 2-1/4 inch, and the Cal-Royal CAL20 privacy lock reaches 2 inch.
9) Is a Grade 1 cylindrical lever worth it over a Grade 2 for an apartment or office corridor?
For a high-traffic opening, yes. The Marks 295L is ANSI/BHMA Grade 1 and Marks rates it past 3.6 million cycles, which is 300 percent over the Grade 1 requirement. Grade 2 alternatives like the Orca OCL210 passage lockset or the Dorma CL701 are medium duty and fit lower-use interior doors better. Grade 1 is the level institutional and MRO specs normally call for in schools, healthcare, and multi-family corridors.
10) What keeps the levers on the Marks 295L from drooping over time?
The Survivor chassis uses a stainless steel clutch that disengages the levers from the retractor when the lock is locked, so force applied to a locked lever does not load the internal parts. That is what prevents lever droop, the usual failure on cylindrical lever locks in heavy traffic. The retractors ride on cast bronze roller bearings, and the levers are solid cast zamac with a 1/2 inch return.
11) How does the Marks 295L mount, and do I need extra hardware to install it?
It is a bored cylindrical lockset with thru-bolted roses, 3-7/16 inch diameter, held by spring-loaded 2-#10 thru-bolts. The #1834 latch and the #1135 ANSI strike come with it, so a standard 161 door prep with a 2-3/4 inch backset needs nothing added. The only extra part in normal use is the K1904 spacer, and only if the door is 1-3/8 inch thick.
12) I want keypad access instead of a mechanical lever on this opening. What should I look at?
The Marks 295L is a mechanical cylindrical lockset with no electronics. For credential or code access on the same cylindrical prep, ZenSupply carries the Alarm Lock Trilogy DL2700, a Grade 1 standalone keypad lock that fits the same 1-5/8 to 1-7/8 inch door range, and the Schlage ENGAGE NDEB, a Grade 1 wireless Bluetooth cylindrical lock covering 1-5/8 to 2 inch doors. If you only need a privacy function with a keypad, the Alarm Lock Trilogy 4100 is a Grade 1 privacy unit on the same thickness range.
13) Is there a lower-cost privacy lever for light-traffic doors instead of the Marks USA 295L?
The Orca Hardware OCL240 is a privacy cylindrical lockset rated Grade 2 at a medium duty level, which suits interior doors that do not see the cycle counts of a corridor or restroom in a commercial building. The Marks USA 295L is a Grade 1 commercial lockset tested past 3.6 million cycles, which is the choice where traffic is heavy.
14) How does the Marks USA 295L compare to the Stanley QCL150 lever for an office door?
The Stanley Security QCL150 is a Grade 2 entrance lever with a Sierra bent lever and rose, a square 2-3/4 inch backset latch and a 4-7/8 inch by 1-1/4 inch ASA strike. The Marks USA 295L shares the 2-3/4 inch backset and the ANSI 1-1/4 inch by 4-7/8 inch square corner strike, so the frame prep lines up, but it is a Grade 1 privacy function with a curved cast zamac lever rather than a keyed entrance lock.
15) For a classroom door, is the Marks USA 295L the right lock or should I look at something else?
A classroom opening usually needs a lockable or intruder function, which a privacy lockset does not provide. The TownSteel XCE-9000 and FCE-4000 are Grade 1 heavy duty classroom intruder cylindrical locksets, and the TownSteel XCE-2000 and FCE-2000 are Grade 1 classroom locks; the Schlage XE360M is a Grade 1 wireless tubular lock in a classroom/storeroom function. The Marks USA 295L suits the restroom, office and patient room doors on the same corridor.
16) What should I specify instead of the Marks USA 295L if the opening has to tie into an access control system?
The SDC Electra 7200 is a solenoid controlled cylindrical lock running dual voltage 12/24VDC for hardwired access control on 1-3/4 inch to 2 inch doors. For credential-based standalone control, the Schlage NDEB is a Grade 1 heavy duty wireless cylindrical lock using 2.4 GHz Bluetooth Low Energy across 1-5/8 inch to 2 inch doors. The Marks USA 295L is a mechanical lockset with no electrical connection.
17) What finishes does the Marks 295L lever come in, and will it match my other door hardware?
Two finishes: US26D satin chrome and US10B oil-rubbed dark bronze. US26D is the standard commercial match for most satin chrome and brushed stainless trim already hanging in offices and schools; US10B suits dark bronze packages in hospitality and multi-family. If you are standardizing a building, pick one and carry it across the openings.
18) Is a keyless pushbutton lock a substitute for the Marks USA 295L on a bathroom or storage door?
Not for privacy. The Lockey 2830 is a mechanical pushbutton keyless knob lock with an auto-locking passage function for 1-1/8 inch to 2 inch doors, and the Lockey 1600 is a heavy duty mechanical keyless knob lock with an adjustable backset over the same range; both are code-entry knobs rather than a lever that locks from inside the room. The Marks USA 295L gives an ADA compliant curved lever with a privacy function.
