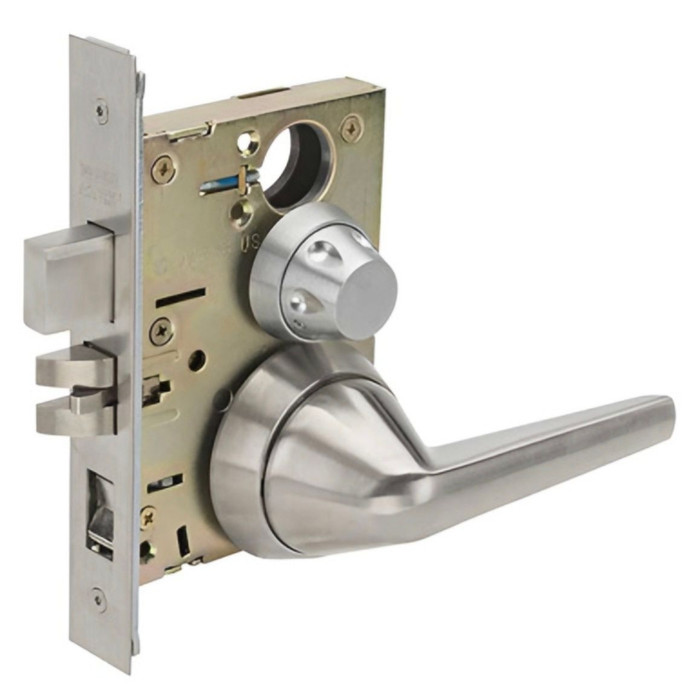

Marks USA 5SS19L LifeSaver Bathroom Lever Mortise Lock - Institutional LifeSaver Mortise Lock, Anti-Ligature, Bathroom

Marks USA MAR5SS19L 5SS19L LifeSaver Anti-Ligature Bathroom Mortise Lock - Grade 1, Stainless Steel, ADA Compliant

(No reviews yet) Write a Review

Model: 5SS19L-32D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$936.54
$667.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Marks USA 5SS19L LifeSaver Anti-Ligature Bathroom Mortise Lock — Grade 1, Stainless Steel, ADA Compliant

The Marks USA 5SS19L LifeSaver is a Grade 1 institutional mortise lockset engineered specifically for behavioral health and detention facility environments where ligature resistance is a critical safety requirement. Featuring the SS19 lever style in Bright/Polished Stainless Steel, this mechanical lockset accommodates doors with a required thickness of 1-3/4 in and a 2-3/4 in backset, with a 4-7/8 in curved lip strike plate. Constructed with a stainless steel body and a stamped steel case measuring 1-1/16", the 5SS19L is cULus Listed, BHMA certified, and fully ADA compliant, making it a trusted solution for demanding institutional applications.

Key Features

  • Anti-Ligature Design: Ligature-resistant SS19 lever and rose configuration engineered to reduce self-harm risks in behavioral health and detention facility environments.
  • Door Thickness Compatibility: Designed for doors with a required and maximum thickness of 1-3/4 in, ensuring a precise and secure fit in standard institutional door preparations.
  • Dimensional Specifications: Features a 2-3/4 in backset, a 4-7/8 in curved lip strike plate, a front size of 1-1/8" x 2-1/4", and a 9/16" latch throw for reliable latching performance.
  • Grade 1 Construction: Meets ANSI/BHMA Grade 1 standards with a stainless steel body and stamped steel 1-1/16" case, delivering exceptional durability for high-traffic commercial and institutional use.
  • Clutch Lever with Needle Bearings: Internal clutch lever mechanism and needle bearings provide smooth, consistent operation and long-term mechanical reliability under heavy institutional use.
  • Non-Handed Operation: Non-handed design simplifies installation and inventory management, compatible with doors of any swing direction without modification.
  • Deadlocking Latch: Dead bolt / deadlocking latch type (ANSI Function F21/F75) with latch retracted by levers at all times, supporting passage and hall/closet function requirements.
  • Marks C Keyway: Keyed outside via Marks C keyway; includes 2 keys for immediate use upon installation.

Certifications & Compliance

  • ANSI/BHMA Grade 1 Certified
  • cULus Listed
  • UL Listed for 3-Hour Fire Rating
  • ADA Compliant
  • Ligature-Resistant — Suitable for Behavioral Health and Detention Facility Applications
  • Marks USA Lifetime Mechanical Warranty

Technical Specifications

  • Series: 5SS19 Series
  • Latch Throw: 9/16"
  • Grade: Grade 1
  • Product Subgroup: Bored Locksets
  • Product Type: Cylindrical Locks
  • Subcategory: Cylindrical Locks
  • ANSI/BHMA: ANSI/BHMA, UL Listed
  • Function Description: Latch retracted by knobs/levers at all times
  • Front Size: 1-1/8" x 2-1/4"
  • ADA Compliant: Yes
  • Keyed: No
  • ANSI Function: F75
  • Product Attribute: Cylindrical Locks
  • Product Function: Passage/Hall/Closet
  • Latch Type Specification: Deadlocking
  • Backset (Distance): 2-3/4"
  • Department: Door Hardware

Typical Applications

  • Behavioral Health Facilities and Psychiatric Units
  • Detention Centers and Correctional Institutions
  • Hospital and Healthcare Restrooms
  • Institutional Bathroom and Shower Facilities
  • Educational Institution Secure Restrooms
  • Government and Municipal Buildings
  • Commercial Office and Multi-Tenant Residential Properties

Why Marks USA 5SS19L LifeSaver?

Marks USA 5SS19L LifeSaver mortise locksets are purpose-built for the most demanding institutional environments, combining a ligature-resistant SS19 lever design with Grade 1 stainless steel construction, clutch lever mechanics, and needle bearings for lasting performance. Backed by a Marks USA lifetime mechanical warranty and certified to cULus, ANSI/BHMA, and ADA standards — including a UL Listed 3-hour fire rating — the 5SS19L delivers the safety, compliance, and reliability that behavioral health and detention facility professionals require.

Manufacturer Resources

Marks USA Product Catalog

Product Specs

Series:
5SS19 Series
Latch Throw:
9/16"
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Cylindrical Locks
Subcategory:
Cylindrical Locks
ANSI/BHMA:
ANSI/BHMA, UL Listed
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Function Description:
Latch retracted by knobs/levers at all times
Front Size:
1-1/8” x 2-1/4”
ADA Compliant:
Yes
Keyed:
No
ANSI Function:
F75
Product Attribute:
Cylindrical Locks
Product Function:
Passage/Hall/Closet
Latch Type Specification:
Deadlocking
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Marks USA 5SS19L-32D – Frequently Asked Questions

1) Is this Marks LifeSaver lock actually a locking bathroom lock, or does it stay unlocked?
The 5SS19L is an ANSI F75 function: the latch is retracted by the levers at all times, so it operates as passage, hall or closet. There is no privacy or occupancy indicator on the inside. If you need a behavioral health restroom door that can be secured from inside, an F75 will not do it. A privacy function lockset such as the Cal-Royal CAL20 is the privacy equivalent in a Grade 1 cylindrical.
2) Do I have to order the Marks 5SS19L handed for a left or right swing door?
No handing to specify. The 5SS19L LifeSaver is non-handed and installs on a door of either swing without modification, so one part number covers every opening in the building. That is worth something on an institutional stocking list, since you carry one SKU instead of two.
3) Will the 5SS19L latch work with the strike already in my frame?
The 5SS19L ships with a 4-7/8 inch curved lip strike and the latch has a 9/16 inch throw. If your frames are already prepped for a 4-7/8 inch ANSI strike, which most hollow metal institutional frames are, it drops in. Frames cut for a smaller T-strike or a 2-3/4 inch face will need new prep. The latch is deadlocking, so the deadlatch plunger has to land on the strike face, not in the cutout, or it will not deadlock.
4) What makes the SS19 lever anti-ligature, and where should I be using it?
The SS19 lever and rose are shaped so there is no protruding point to tie a cord or garment to, which is the whole reason the LifeSaver line exists. It is aimed at behavioral health units, psychiatric wards, detention and correctional facilities, and institutional restroom and shower rooms. A standard bent or return lever on those doors is a ligature point, and that is the substitution a facility usually gets wrong.
5) If the restroom needs an actual privacy function with an inside turn, what Grade 1 lever should be used instead of the Marks USA 5SS19L?
Look at the Cal-Royal CAL20 Calypso, a Grade 1 extra heavy duty privacy/bed/bath cylindrical lock fitting doors 1-3/8 in to 2 in. The Marks USA 5SS19L is set up as a passage/hall/closet function with the latch retracted by levers at all times, so it does not hold the door locked against a user inside. Where the specification calls for an occupant-operated privacy lock rather than a free-swinging ligature-resistant lever, the CAL20 is the function match.
6) Does the 5SS19L come keyed, and what keyway does it use?
It is catalogued as non-keyed because the F75 function retracts the latch from either side at all times. The lock uses the Marks C keyway and two keys are supplied, so if you are standardizing a facility on Marks C you stay on the same key system across your other Marks cylinders.
7) Can I put access control or a keypad on these behavioral health doors instead?
Not with the 5SS19L, which is purely mechanical with a clutch lever and needle bearings. If a door needs credentialed access, TownSteel's XCE-2000 Series is a Grade 1 keypad cylindrical for 1-3/4 to 2 inch doors, and the Schlage CO-100 keypad lock is a Grade 1 privacy function unit for 1-3/4 inch doors. Neither is described as ligature resistant, so keep those off the patient-side openings and use them on staff and service doors.
8) Is there a Grade 1 electronic privacy lock that would cover a behavioral health restroom instead of the Marks USA 5SS19L?
The Schlage CO-100-CY-40-KP is a Grade 1 heavy duty standalone electronic cylindrical lock with a privacy function and keypad, built for a 1-3/4 in door - the same door thickness the Marks USA 5SS19L is designed around. The trade is mechanical versus electronic: the 5SS19L is a mechanical Grade 1 lockset with a ligature-resistant lever and needs no power or credential management, while the CO-100 adds keypad access and battery service. Facilities that want access control at the opening go with the CO-100; facilities that want the ligature-resistant lever and no electronics stay with the 5SS19L.
9) Can a dummy lever such as the Dorma C501 be used where the Marks USA 5SS19L is specified?
No - a dummy is trim only. The Dorma C501 is a Grade 2 single dummy keyless lever trim with no latch, and the Orca OCL2170 is a Grade 2 half dummy lever in the same category. The Marks USA 5SS19L is a Grade 1 lockset with a deadlocking latch, a 9/16 in throw, and a 4-7/8 in curved lip strike, so it actually latches the door. Dummy trim belongs on an inactive leaf or a pull-only door, never on the opening the 5SS19L is specified for.
10) What should be used instead of the Marks USA 5SS19L if the restroom door needs to be keyed for staff entry?
The 5SS19L is a non-keyed passage/hall/closet lockset, so keyed entry is a different function. Grade 1 keyed options include the Dorma C853 single cylinder entry lever, which fits doors 1-3/8 in to 2-1/4 in, and the Dorma C150 entry/office lock over the same door range. If the requirement is credential-based rather than key-based, the Schlage NDEB ENGAGE wireless Grade 1 lock covers storeroom, office, privacy and apartment functions on doors 1-5/8 in to 2 in.
11) Is a keyless pushbutton knob lock like the Lockey 2830 an alternative to the Marks USA 5SS19L?
Only where the opening does not carry an institutional or ADA requirement. The Lockey 2830 is a mechanical pushbutton keyless knob lock with a passage function fitting doors 1-1/8 in to 2 in, and the Lockey 1600 is a heavy duty mechanical keyless knob lock with an adjustable backset over the same door range. Both are knob-operated. The Marks USA 5SS19L is a lever lockset that is ADA compliant and Grade 1 with a ligature-resistant SS19 lever, which is what behavioral health and detention specifications call for. Knob operation is the deciding difference on any door where ADA lever operation is required.
12) For a school restroom or classroom door, does the Marks USA 5SS19L or a TownSteel classroom lockset fit better?
It depends on whether the door needs to lock down. The Marks USA 5SS19L is a passage/hall/closet function with the latch retracted by levers at all times, which suits a secure institutional restroom where the door should never trap an occupant. The TownSteel FCE-4000 and XCE-9000 are Grade 1 heavy duty classroom intruder locksets - FCE-4000 with RFID, XCE-9000 with a keypad - intended for classroom doors that must be secured from inside during a lockdown. Restroom and shower openings take the 5SS19L; classroom entry doors under a lockdown policy take one of the TownSteel intruder locks.
13) What finish does the Marks 5SS19L come in?
One finish: US32D satin stainless steel. The body is stainless steel over a stamped steel 1-1/16 inch case, which is why it holds up in wet restroom and shower environments where a plated brass lock would pit.
