Burndy Aluminum Universal Term...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$141.76
$91.76

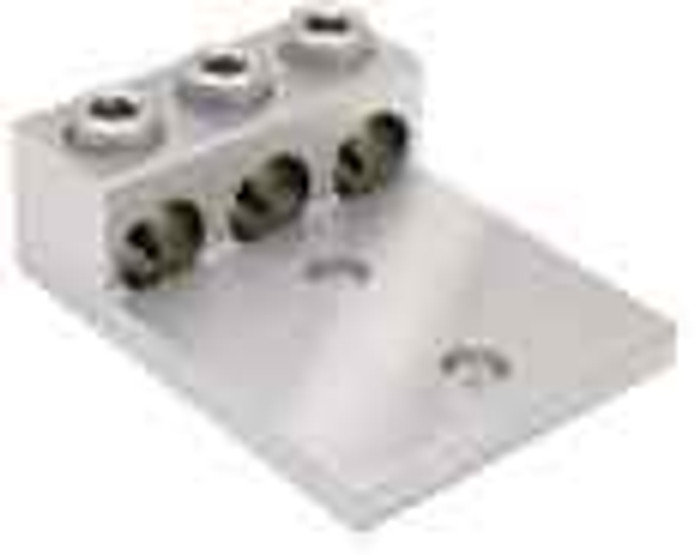

Burndy K3A36U-2N Mechanical Cable Terminal Lug

Burndy Aluminum Universal Terminal Lug 3-Conductor 2-Hole 2 AWG-600 kcmil with Tin Plating

(No reviews yet) Write a Review

Model: K3A36U-2N
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$141.76
$91.76
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy Aluminum Universal Terminal Lug 3-Conductor 2-Hole 2 AWG-600 kcmil with Tin Plating

Professional electrical connection solution for aluminum and copper stranded conductors

The Burndy aluminum universal terminal lug delivers reliable electrical connections for 3-conductor applications with 2 AWG to 600 kcmil wire capacity. This UL Listed terminal features tin plating for enhanced corrosion resistance and accepts both aluminum and copper stranded conductors. The 2-hole design with 1/2" stud compatibility provides secure mechanical connection with 375 lb-in installation torque specification.

Professional Features & Benefits

  • Wide Wire Range: Accommodates 2 AWG to 600 kcmil aluminum and copper stranded conductors for versatile installation flexibility
  • UL Listed Safety: Meets UL468A-468B industry standards ensuring code compliance and reliable performance
  • Tin Plating Protection: Corrosion-resistant tin plating extends service life and maintains electrical integrity
  • 3-Conductor Design: Handles multiple conductors in a single terminal for efficient panel and equipment connections
  • Precision Engineering: 375 lb-in installation torque specification ensures proper connection without over-tightening
  • CSA Certified: Canadian Standards Association certification for North American electrical applications

Technical Specifications

  • Aluminum Size Range: 2 AWG-600 kcmil
  • Bolt Hole Size: 16-Sep
  • Bolt Hole Size In: 0.57
  • Connector Type: Terminal
  • Copper Solid Size Range: N/A
  • Copper Stranded Range: 2 AWG-600 kcmil
  • Csa Certified: Y
  • Culus: N
  • D In: 3.22
  • E In: 1.75
  • Industry Standards: UL468A-468B
  • Installation Torque: 375
  • Length In: 4.69
  • N In: 0.63
  • Number Of Conductors: 3
  • Number Of Holes: 2
  • Pad Width In: 3.64
  • Plated Yes Or No: Y
  • Product Description: Aluminum Universal Terminal, 3 Conductor, 2 Hole, 2 AWG (Str)-600 kcmil, 1/2" Stud, 1.75" Stud Hole
  • Rated For Direct Burial: N
  • Rohs Compatible: Exempt
  • Thickness: 0.44
  • Type Of Plating: Tin
  • Ul Listed: Y
  • Ul Recognized: N
  • Width In: 3.63

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Electrical Panel Connections
  • Switchgear Installations
  • Motor Control Centers
  • Distribution Equipment
  • Industrial Control Panels
  • Commercial Electrical Systems
  • Power Distribution Applications

Why Choose Burndy Quality?

Burndy terminal lugs provide dependable electrical connections backed by UL Listed certification and CSA approval. The precision-engineered design with tin plating ensures long-term reliability in demanding electrical applications, while the 375 lb-in torque specification guarantees proper installation for safe, code-compliant connections.

Manufacturer Resources

Product Specs

Aluminum Size Range :
2 AWG-600 kcmil
Bolt Hole Size:
16-Sep
Bolt Hole Size In :
0.57
Connector Type:
Terminal
Copper Solid Size Range :
N/A
Copper Stranded Range :
2 AWG-600 kcmil
Csa Certified:
Y
Culus:
N
D In:
3.22
E In:
1.75
Industry Standards:
UL468A-468B
Installation Torque:
375
Length In :
4.69
N In :
0.63
Number Of Conductors:
3
Number Of Holes:
2
Pad Width In :
3.64
Plated Yes Or No :
Y
Product Description:
Aluminum Universal Terminal, 3 Conductor, 2 Hole, 2 AWG (Str)-600 kcmil, 1/2" Stud, 1.75" Stud Hole
Rated For Direct Burial:
N
Rohs Compatible:
Exempt
Thickness:
0.44
Type Of Plating:
Tin
Ul Listed:
Y
Ul Recognized:
N
Width In :
3.63
Department:
Electrical
