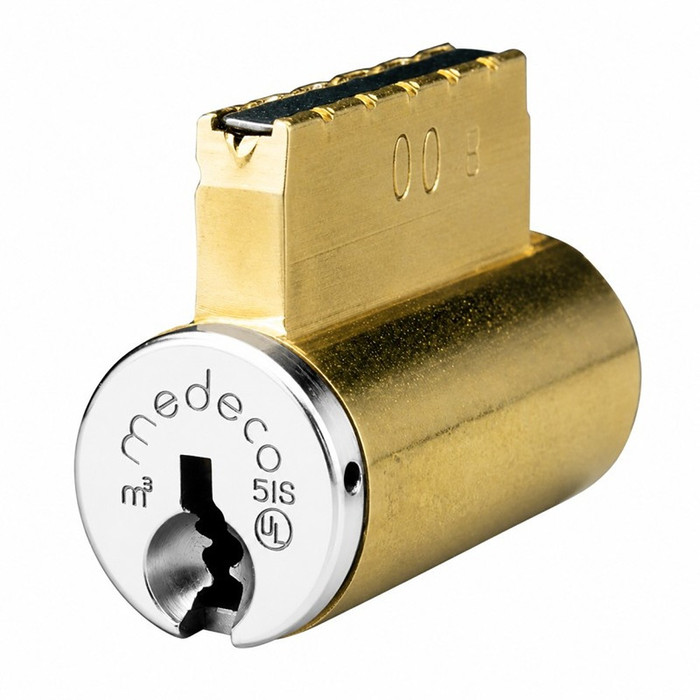

Medeco Medeco 1065140 - 5 Pin Cylinder for Arrow JL Interconnected lock, Rim Lazy Motion Cylinder to Fit Emtek Handleset & Deadbolt Outside Cylinder MED-1065140

Medeco 1065140 5-Pin Retrofit Cylinder for Arrow JL Interconnected Lock, Emtek Handleset & Deadbolt Outside Cylinder

(No reviews yet) Write a Review

Model: 1065140T-05-DLT
$183.00
$171.57
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$183.00
$171.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 1065140 5-Pin Retrofit Cylinder for Arrow JL Interconnected Lock & Emtek Handleset and Deadbolt Outside Cylinder

The Medeco 1065140 is a precision-engineered 5-pin retrofit cylinder designed to fit the Arrow JL Interconnected lock as well as serve as a Rim Lazy Motion Cylinder for Emtek Handleset and Deadbolt outside cylinder applications. Constructed of durable machined brass components, this cylinder is part of Medeco's industry-leading lineup of over 100 different cylinder designs and tailpiece configurations, offering one of the largest retrofit capabilities available. Certified to ANSI A156.30 Level A for patent-protected key control and physical strength, and ANSI A156.5 Grade 1 for consistent quality in heavy-use applications, the Medeco 1065140 delivers professional-grade security for commercial door hardware installations.

Key Features

  • 5-Pin Cylinder Configuration: Precision 5-pin design engineered for reliable, high-security operation in compatible interconnected and handleset applications.
  • Retrofit Versatility: Designed to retrofit knob type cylindrical locksets, lever type cylindrical locksets, padlocks, and bored type auxiliary deadlatches and deadlocks for maximum installation flexibility.
  • Durable Machined Brass Construction: All cylinder components are constructed of durable machined brass for long-lasting performance in demanding commercial environments.
  • Patent-Protected Key Control: ANSI A156.30 Level A certification assures patent-protected key control and physical strength, limiting unauthorized key duplication.
  • UL437 Listed (M4): Medeco M4 Key-in-Knob cylinders are UL437 listed for drill and pick resistance, providing enhanced protection against forced entry.
  • Broad Compatibility: Fits Arrow JL Interconnected lock and functions as a Rim Lazy Motion Cylinder for Emtek Handleset and Deadbolt outside cylinder configurations.
  • Wide Finish Selection: Available in 14 finishes including Bright Brass, Satin Brass, Antique Brass, Oil Rubbed Bronze, Satin Nickel, Bright Chrome, Satin Chrome, Black, Dark Bronze, and more to match existing hardware aesthetics.
  • Industry-Leading Retrofit Range: Over 100 different cylinder designs and tailpiece configurations enable fewer complete lockset replacements, reducing overall installation costs.

Certifications & Compliance

  • ANSI A156.30 Level A — Patent-Protected Key Control and Physical Strength (M4, M3)
  • ANSI A156.5 Grade 1 — Consistent Quality for Heavy-Use Applications (M4/M4 BiLevel, M3)
  • UL437 Listed — Drill and Pick Resistance (M4 Key-in-Knob Cylinders)

Technical Specifications

  • Product Family: Rim & Mortise Cylinder
  • Pinning: 5-Pin
  • Compatible Hardware: Arrow JL Interconnected lock, Rim Lazy Motion Cylinder to Fit Emtek Handleset & Deadbolt Outside Cylinder
  • Certification: UL 437 Listed; ANSI/BHMA A156.30 (M4); ANSI/BHMA A156.5 Grade 1 (M4)
  • Construction: Durable machined brass components
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Commercial Office Buildings Requiring Key Control
  • Educational Facilities with High-Traffic Entry Points
  • Healthcare Institutions Needing Controlled Access
  • Retail Establishments with Security-Sensitive Entrances
  • Multi-Tenant Residential Properties with Interconnected Locksets
  • Government and Municipal Buildings Requiring ANSI-Certified Hardware
  • Industrial Facilities Upgrading Existing Cylindrical Locksets

Why Medeco?

Medeco cylinders are built from durable machined brass components and engineered to meet rigorous ANSI A156.30 Level A and ANSI A156.5 Grade 1 certifications, ensuring both physical strength and patent-protected key control. With UL437 listing for drill and pick resistance on M4 models and compatibility across over 100 cylinder designs and tailpiece configurations, the Medeco 1065140 represents a professional-grade solution for commercial door hardware applications where security and reliability are paramount.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
1065140
Product Subgroup:
Cylinders
Product Type:
Cylinders
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Cylinder Classification:
5Pin
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 1065140T-05-DLT – Frequently Asked Questions

1) Will the Medeco 1065140 cylinder fit an Arrow JL interconnected lock?
That's exactly what the 1065140 is built for. It's a 5-pin Medeco retrofit cylinder cut to the Arrow JL interconnected lockset, and the same part doubles as a rim lazy motion cylinder for the outside cylinder position on an Emtek handleset or deadbolt. So one part number covers both an Arrow JL retrofit and an Emtek outside cylinder swap.
2) Can I put a Medeco high security cylinder in an Emtek handleset without replacing the whole lock?
You can. The Medeco 1065140 drops into the outside cylinder position of an Emtek handleset or deadbolt as a rim lazy motion cylinder, so the existing trim and lock body stay on the door and only the cylinder changes. That gets you Medeco key control on a residential-style handleset without buying a new lockset.
3) What do I have to specify when ordering a Medeco 1065140 cylinder?
Three choices on the order. Keyway technology is Biaxial or M3. Pinning is Pinned, Sub-Assembled, or Sub-Assembled No Slider, which is the one a locksmith picks when they're pinning to an existing Medeco system in the shop. Then finish, from 13 including 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 611 Bright Bronze, 612 Satin Bronze, 613 Dark Bronze Oil-Rubbed, 618 Bright Nickel, 619 Satin Nickel, 622 Flat Black, 624 Dark Bronze, 625 Bright Chrome, 626 Satin Chrome and 20 Antique Nickel.
4) Should I order the Medeco 1065140 in Biaxial or M3?
Match whatever keyway your building already runs. Biaxial and M3 are the two Medeco key systems offered on the 1065140, and they are not interchangeable on one key. If you're adding this door to an existing Medeco master key system, order the technology that system was built in; if it's a fresh system, M3 is the current generation and carries the ANSI A156.30 Level A patent-protected key control that limits unauthorized duplication.
5) Is the Medeco 1065140 cylinder rated for a commercial building?
It's a commercial-duty cylinder. Medeco lists it to ANSI/BHMA A156.5 Grade 1 for heavy-use applications and ANSI A156.30 Level A for physical strength and patent-protected key control, with machined brass components throughout. Medeco's M4 key-in-knob cylinders are also UL437 listed for drill and pick resistance. For a spec that calls for Grade 1 cylinders with restricted keys on a school, hospital or municipal building, this meets it.
6) Can I key the Medeco 1065140 the same as the other Medeco cylinders in my building?
Yes, as long as they're the same technology. Order the 1065140 in the keyway your system runs, Biaxial or M3, and it keys into that system alike or on a master. Because Medeco offers over 100 cylinder designs and tailpiece configurations, you can typically bring an odd opening like an Arrow JL interconnected lock or an Emtek handleset onto the same key as the rest of the property instead of replacing the lockset.
7) Can the Medeco 1065140 replace a mortise cylinder in a mortise lock?
It can't. The 1065140 is a 5-pin retrofit cylinder for the Arrow JL interconnected lock and the Emtek handleset and deadbolt outside cylinder, not a threaded mortise housing. For a mortise lock body you need a mortise cylinder with the right length and cam, such as the Corbin Russwin 1000 Series Grade 1 at 1-1/2 inch with an A02 straight cam, the 1070 Grade 1 at 1-1/4 inch with an A01 cloverleaf cam, or the Adams Rite 4036 five-pin mortise cylinder.
8) What is the difference between the Medeco 1065140 retrofit cylinder and a Kaba Ilco 1539 universal key-in-knob cylinder?
Both are replacement cylinders that drop into existing knob and lever locksets rather than requiring a new lockset. The Medeco 1065140 is a 5-pin cylinder available in Biaxial and M3 keyways, ordered Pinned, Sub-Assembled, or Sub-Assembled No Slider, and carries ANSI A156.30 Level A patent-protected key control with UL437 listing for drill and pick resistance. The Kaba Ilco 1539 Series is a key-in-knob / lever universal cylinder covering deadbolt function. A locksmith standardizing a building on a patented, restricted key system uses the Medeco; one rekeying a mixed set of knob locksets to a conventional key system uses the 1539.
9) Our facility is standardized on small format interchangeable core - is the Medeco 1065140 a fit, or do we need something else?
The 1065140 is a fixed 5-pin cylinder in Biaxial or M3, ordered Pinned or Sub-Assembled, so it is keyed as a cylinder rather than accepting a removable core. A facility running interchangeable core stays with core products: the BEST 1C Series standard 5-pin cylinder core, the BEST Peaks 1CB 150 Series interchangeable core cylinder, or the BEST 1CDF drill resistant patented interchangeable core in 7-pin brass. Interchangeable core lets maintenance staff rekey an opening by swapping the core with a control key; the 1065140 is rekeyed by pinning the cylinder.
10) The opening is an aluminum storefront door with an Adams Rite deadlock - will the Medeco 1065140 work there?
No. The 1065140 fits the Arrow JL interconnected lock and the Emtek handleset and deadbolt outside cylinder. Narrow stile aluminum openings take Adams Rite hardware: the 4036 is a Grade 1 five-pin mortise cylinder for a 1/2 inch minimum door thickness, while the 4024 cylinder pull with trim plate mounting and the 4025 five pin tumbler cylinder pull with through-screws are both made for the Adams Rite MS1847 deadlock/deadlatch. For a wood door running an Adams Rite 5017 deadlock, the 4026 five pin tumbler cylinder pull is the matching part.
11) We are already on Schlage C keyway across the building - what matches that instead of the Medeco 1065140?
The Medeco 1065140 comes in Biaxial and M3, which are patent-protected Medeco keyways under ANSI A156.30 Level A, so it will not accept a Schlage C key. To stay on Schlage C, the Detex MC65 is a mortise cylinder with Schlage C keyway, 1-1/8 inch, 6-pin commercial grade, and the Schlage 20-057-C is a full size interchangeable core cylinder in C keyway, 643E aged bronze. Going to the 1065140 means moving that opening onto a separate restricted key system, which is the point when key control is the goal and a drawback when one key has to open everything.
12) What is the difference between ordering the Medeco 1065140 pinned versus sub-assembled?
Pinned means the cylinder arrives keyed and ready to install. Sub-assembled means it ships unpinned for a locksmith to key into an existing Medeco system, and Sub-Assembled No Slider leaves the slider out as well, which is how you'd order it when you're building the plug from your own components. If you don't run a Medeco keying system yourself, order it pinned.
13) If I want interchangeable core so I can rekey without a locksmith, is the Medeco 1065140 the right choice?
No. The 1065140 is a conventional pinned cylinder, so rekeying means pulling the cylinder and repinning it. If you want to swap cores by hand across a facility, look at an interchangeable core line instead: the BEST 1C 5-pin standard core, the BEST Peaks 1CB 150 Series IC cylinder, or the Schlage 20-057 6-pin FSIC rim cylinder with convertible tailpiece cam. Those are the parts built for control-key core swaps.
14) Is a Medeco cylinder upgrade worth it on apartment entry doors with interconnected locks?
On multi-tenant entries, the failure is usually key duplication at the hardware store, not the lock. The 1065140 retrofits the cylinder in an Arrow JL interconnected lockset and carries ANSI A156.30 Level A patent-protected key control, so tenant keys can't be casually copied, plus ANSI A156.5 Grade 1 durability for heavy turnover. The lockset, trim and door prep all stay as they are, which is what keeps the job to a cylinder swap per door.
15) Is the Corbin Russwin 1080 LFIC mortise cylinder an alternative to the Medeco 1065140 for a Schlage L9000 lock?
No, they address different lock bodies. The Corbin Russwin 1080 Grade 1 Series is a 1-1/2 inch LFIC mortise cylinder, 6-pin, for Schlage L9000 mortise locks with an A01 Schlage L cam, and the Corbin Russwin 3070 is a 6-pin rim cylinder housing with a 1-7/8 inch tailpiece. The Medeco 1065140 is a 5-pin retrofit cylinder for the Arrow JL interconnected lock and the Emtek handleset and deadbolt outside cylinder. Identify the lock body first - mortise case, rim device, or interconnected lockset - because the cam or tailpiece is what has to match.
16) What is the difference between a rim cylinder like the Schlage 20-021 and the Medeco 1065140?
A rim cylinder mounts through the door from the outside and drives an exit device or rim lock on the inside face. The Schlage Commercial 20-021 is a 6-pin rim cylinder with a vertical tailpiece cam, and the 20-022 is the same 6-pin rim cylinder with a horizontal tailpiece cam. The Medeco 1065140 is a 5-pin cylinder that fits the Arrow JL interconnected lock and works as a rim lazy motion cylinder for the Emtek handleset and deadbolt outside cylinder. If the door has a panic device on the inside, the tailpiece orientation on the Schlage rim cylinders is what the device dictates; if the door has an Arrow JL interconnected lock or an Emtek handleset, the 1065140 is the matching part.
17) Is a Kaba Ilco 1549 or 1599 cylinder an equivalent replacement for the Medeco 1065140 on a deadbolt?
They serve the same repair, not the same key system. The Kaba Ilco 1549 Series is a key-in-deadbolt cylinder and the 1599 is a key-in-knob replacement cylinder, both listed for deadbolt function. The Medeco 1065140 covers the Emtek handleset and deadbolt outside cylinder position and is certified to ANSI A156.30 Level A for patent-protected key control and ANSI A156.5 Grade 1, with UL437 listing on M4 key-in-knob cylinders. Use the Ilco parts to restore a working deadbolt on a conventional keyway; use the 1065140 when the deadbolt has to key into a restricted Medeco system and meet Grade 1.
18) What looks like a substitute for the Medeco 1065140 but will not key the door?
The BEST 12E Series dummy rim cylinder, at 1-5/32 inch diameter, has the outward appearance of a rim cylinder but is a dummy - it fills the hole and matches the trim without operating anything. The Medeco 1065140 is a working 5-pin cylinder for the Arrow JL interconnected lock and the Emtek handleset and deadbolt outside cylinder, with UL437 drill and pick resistance. Order the dummy only for an inactive leaf or a blank cylinder hole, never as a replacement for a cylinder that has to turn a bolt.
19) Which cylinder do I use to rekey a Sargent knob or lever, since the Medeco 1065140 is cut for Arrow and Emtek?
The Kaba Ilco 1579 knob and lever cylinder is built for Sargent locksets. The Medeco 1065140 is the retrofit cylinder for the Arrow JL interconnected lock and the Emtek handleset and deadbolt outside cylinder, so the tailpiece configuration is specific to those hardware families. For a key-in-lever cylinder on Falcon hardware, the A23161-05 G is a key in lever cylinder for the RU/T Series with a 6-pin G keyway, keyed different with two cut keys.
20) I need to match the Medeco cylinder to oil-rubbed bronze door hardware. What finish do I order?
Order 613 Dark Bronze Oil-Rubbed. If your other hardware is a flat dark bronze rather than an oil-rubbed living finish, 624 Dark Bronze is the closer match, and 622 Flat Black is there for black trim. Thirteen finishes are offered in all, so a cylinder face can be matched to existing knobs and handlesets rather than left as an odd chrome plug in a bronze door.
21) Can I match the Medeco 1065140 finish to the rest of the door hardware, or do other cylinders offer more choice?
The Medeco 1065140 comes in 13 finishes, including 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 613 Dark Bronze Oil-Rubbed, 619 Satin Nickel, 622 Flat Black, 624 Dark Bronze, 625 Bright Chrome, and 626 Satin Chrome. Among the comparable cylinders, the Schlage 20-057-C is a full size interchangeable core cylinder specified in 643E Aged Bronze. For a property manager matching a run of entry doors, the 1065140 finish range covers most existing trim without a separate finish request.
How fast can I get the Medeco 1065140T-05-DLT delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Medeco 1065140T-05-DLT come with a warranty?
Absolutely. The Medeco 1065140T-05-DLT is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
