Medeco 20009S4 6-Pin Key-in-Kn...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$182.00
$138.81

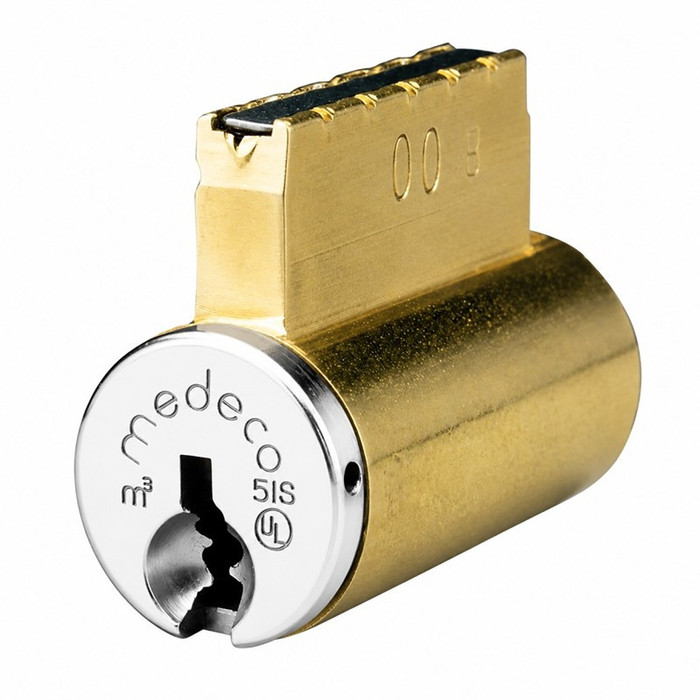

Medeco Medeco 20009S4 - 6 Pin Cylinder for Olympus 700LCM 800LCM, Cal-Royal T-300 Series, Schlage Lazy Motion Knob Cylinder MED-20009S4

Medeco 20009S4 6-Pin Key-in-Knob/Lever Retrofit Cylinder for Olympus 700LCM/800LCM, Cal-Royal T-300, Schlage Lazy Motion

(No reviews yet) Write a Review

Model: 20009S4T-26-DLT
$182.00
$138.81
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$182.00
$138.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 20009S4 6-Pin Key-in-Knob/Lever Retrofit Cylinder for Olympus 700LCM/800LCM, Cal-Royal T-300 & Schlage Lazy Motion

The Medeco 20009S4 is a 6-pin Key-in-Knob/Lever retrofit cylinder engineered to replace cylinders in knob-type and lever-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks. Constructed of durable machined brass components, this Medeco M4 (Medeco 4) cylinder carries UL437 listing for drill and pick resistance along with utility patent-pending key control. It meets ANSI A156.30 Level A certification for patent-protected key control and physical strength, and ANSI A156.5 Grade 1 certification for consistent quality in heavy-use commercial applications. Compatible with Olympus 700LCM and 800LCM, Cal-Royal T-300 Series, and Schlage Lazy Motion knob locksets, this cylinder is part of Medeco's industry-leading retrofit lineup of over 100 different cylinder designs and tailpiece configurations.

Key Features

  • 6-Pin Cylinder Configuration: Features a 6-pin tumbler design for enhanced security and key control in commercial-grade cylindrical locksets.
  • UL437 Listed: Certified for drill and pick resistance, providing a high level of physical attack protection for demanding security applications.
  • ANSI A156.30 Level A Certified: Assures patent-protected key control and physical strength, meeting the highest standard for key control cylinders (M4, M3).
  • ANSI A156.5 Grade 1 Certified: Ensures consistent quality and performance for heavy-use commercial applications (M4/M4 BiLevel, M3).
  • Machined Brass Construction: Cylinder components are precision-machined from durable brass for long-lasting reliability and smooth operation.
  • Broad Retrofit Compatibility: Designed to retrofit Olympus 700LCM and 800LCM, Cal-Royal T-300 Series, and Schlage Lazy Motion knob locksets, eliminating the need for full lockset replacement.
  • Industry-Leading Retrofit Range: Part of a lineup of over 100 different cylinder designs and tailpiece configurations, offering the largest retrofit capability in the industry.
  • Utility Patent-Pending Key Control: Medeco M4 key control technology restricts unauthorized key duplication for enhanced access management.
  • Multiple Finish Options: Available in 14 finishes including Bright Brass, Satin Brass, Antique Brass, Satin Brass Blackened, Bright Bronze, Satin Bronze, Oil Rubbed Bronze, Bright Nickel, Satin Nickel, Antique Nickel, Black, Dark Bronze, Bright Chrome, and Satin Chrome.

Certifications & Compliance

  • UL437 Listed — Drill and Pick Resistance
  • ANSI A156.30 Level A — Patent-Protected Key Control and Physical Strength (M4, M3)
  • ANSI A156.5 Grade 1 — Heavy-Use Commercial Quality (M4/M4 BiLevel, M3)
  • Utility Patent-Pending Key Control

Technical Specifications

  • Product Family: Key-in-Knob/Lever Cylinder
  • Pinning: 6-Pin
  • Compatible Hardware: Olympus 700LCM 800LCM, Cal-Royal T-300 Series, Schlage Lazy Motion Knob Cylinder
  • Certification: UL 437 Listed; ANSI/BHMA A156.30 (M4); ANSI/BHMA A156.5 Grade 1 (M4)
  • Construction: Durable machined brass components
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Commercial Office Buildings Requiring Key Control Upgrades
  • Educational Facilities Upgrading Existing Cylindrical Locksets
  • Healthcare Institutions with High-Security Access Requirements
  • Retail Establishments Retrofitting Existing Door Hardware
  • Government and Municipal Buildings Requiring UL437-Listed Cylinders
  • Multi-Tenant Residential and Mixed-Use Properties
  • Industrial and Warehouse Facilities with Restricted Key Control Needs

Why Medeco?

Medeco's 20009S4 cylinder delivers professional-grade security through precision-machined brass construction, UL437-listed drill and pick resistance, and dual ANSI certifications (A156.30 Level A and A156.5 Grade 1) that confirm both key control integrity and heavy-use durability. With compatibility across Olympus 700LCM/800LCM, Cal-Royal T-300 Series, and Schlage Lazy Motion platforms — and access to over 100 retrofit configurations — Medeco provides a cost-effective security upgrade without requiring full lockset replacement.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
20009S4
Product Subgroup:
Cylinders
Product Type:
Key-in-Knob/Lever Cylinder
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Cylinder Classification:
6Pin
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 20009S4T-26-DLT – Frequently Asked Questions

1) Will the Medeco 20009S4 cylinder fit an Olympus 700LCM cabinet lock?
Yes. The 20009S4 is a 6-pin key-in-knob/lever retrofit cylinder built to drop into Olympus 700LCM and 800LCM, Cal-Royal T-300 Series, and Schlage Lazy Motion knob locksets. You keep the existing lockset and swap only the cylinder, so there is no door prep and no new hardware to mount.
2) Is this Medeco retrofit cylinder UL437 listed for drill and pick resistance?
Yes, the 20009S4 carries a UL437 listing for drill and pick resistance. It also meets ANSI/BHMA A156.30 Level A for patent-protected key control and physical strength, and ANSI/BHMA A156.5 Grade 1 for heavy-use commercial service. If your facility spec calls for a UL437 cylinder on existing cylindrical locks, this is the retrofit route.
3) What do I have to specify when ordering a Medeco 20009S4 cylinder?
Three things. Keyway technology, either Biaxial or M3. Pinning, either Pinned, Sub-Assembled, or Sub-Assembled No Slider. And finish, from 13 options including 605 bright brass, 606 satin brass, 613 dark bronze oil-rubbed, 619 satin nickel, 622 flat black, 626 satin chrome and others. Sub-assembled is what you order if your locksmith is pinning to an existing master key system in house.
4) Can I add these cylinders to an existing Medeco Biaxial master key system?
Yes, if you order the Biaxial keyway option rather than M3. Both technologies are offered on the 20009S4, and you should match whatever your building's existing Medeco system runs on. Order the Sub-Assembled version if your locksmith will pin them to your system's bitting, or Pinned if you want them keyed by the factory.
5) Do I need to replace the whole knob lockset to upgrade to Medeco high security?
No. The 20009S4 replaces just the cylinder inside knob-type and lever-type cylindrical locksets, padlocks, and bored auxiliary deadlatches and deadlocks. That gets you UL437 drill and pick resistance and restricted key control while the existing lockset, door prep, and strike stay as they are. Medeco builds over 100 cylinder and tailpiece configurations, so other hardware brands on your other doors likely have a matching retrofit too.
6) What is the difference between the Pinned and Sub-Assembled options on a Medeco cylinder?
Pinned means the cylinder ships keyed and ready to install. Sub-Assembled ships without final pinning so a locksmith can key it into an existing system, and Sub-Assembled No Slider leaves the slider out as well for shops doing their own full build. If you are a property manager without a locksmith on staff, order Pinned.
7) Is the Medeco 20009S4 rated for heavy traffic commercial doors?
It is. The cylinder holds ANSI/BHMA A156.5 Grade 1 certification, the heavy-use commercial level, and the components are machined brass. It is catalogued as a commercial-duty part, and typical placements are offices, schools, healthcare, government buildings, retail, and multi-tenant residential where key control is the driver.
8) Does a 6-pin Medeco cylinder give better key control than a standard 5-pin?
The 20009S4 uses a 6-pin tumbler configuration, which expands the number of usable key changes and matters when you are building a master key system across a facility. Beyond pin count, the M4 and M3 key control technology is utility patent-pending, so keys cannot be legally duplicated off the street. That combination is what earns the A156.30 Level A rating.
9) Will a Medeco 20009S4 match the finish on the rest of my building's door hardware?
Most likely. 13 BHMA finishes are offered: 20 antique nickel, 605 bright brass, 606 satin brass, 609 antique brass, 611 bright bronze, 612 satin bronze, 613 dark bronze oil-rubbed, 618 bright nickel, 619 satin nickel, 622 flat black, 624 dark bronze, 625 bright chrome, and 626 satin chrome. 626 satin chrome and 613 are the two you will most often be matching on commercial openings.
How fast can I get the Medeco 20009S4T-26-DLT delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Medeco 20009S4T-26-DLT come with a warranty?
Absolutely. The Medeco 20009S4T-26-DLT is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Medeco 20009S4T-26-DLT?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Medeco 20009S4T-26-DLT from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
