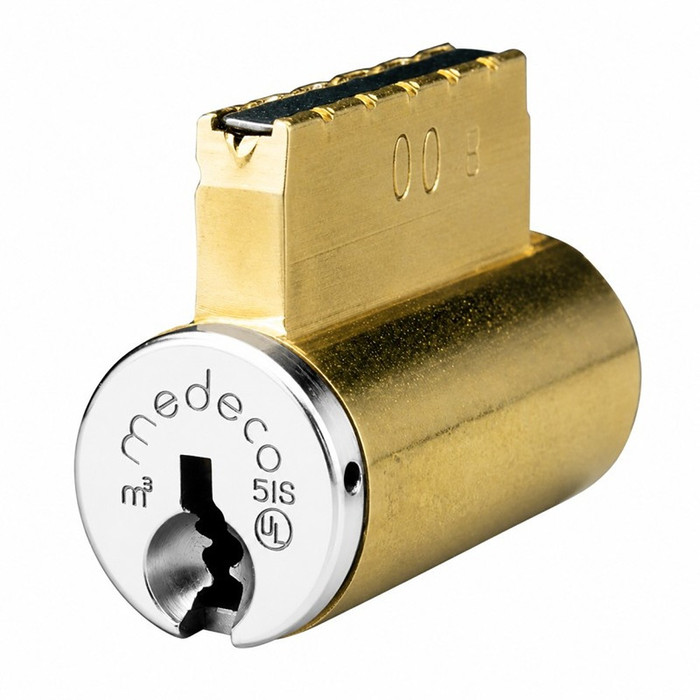

Medeco 2001600 - 5 Pin Cylinder for Hockey Puck Style Padlock Sold Between 9/2004 and 9/2023 (KIK Style Cylinder)

Medeco 2001600 5-Pin KIK Cylinder for Hockey Puck Style Padlock

(No reviews yet) Write a Review

Model: 2001600T-26-DLT
$147.65
$114.19
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$147.65
$114.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 2001600 5-Pin KIK Cylinder for Hockey Puck Style Padlock

The Medeco 2001600 is a 5-pin Key-in-Knob (KIK) style replacement cylinder engineered specifically for hockey puck style padlocks sold between 9/2004 and 9/2023. Constructed from durable machined brass components, this retrofit cylinder delivers Medeco's renowned high-security key control in a direct-replacement format. Certified to ANSI A156.30 Level A for patent-protected key control and physical strength, and ANSI A156.5 Grade 1 for consistent quality in heavy-use commercial applications, this cylinder is a trusted upgrade for demanding security environments.

Key Features

  • Precise Compatibility: Designed specifically as a replacement cylinder for hockey puck style padlocks sold between 9/2004 and 9/2023, ensuring a direct, accurate fit.
  • 5-Pin KIK Configuration: Key-in-Knob (KIK) style 5-pin cylinder provides enhanced pick resistance and superior key control for high-security applications.
  • Durable Machined Brass Construction: All cylinder components are precision-machined from solid brass for long-lasting performance and corrosion resistance in commercial environments.
  • ANSI A156.30 Level A Certified: Assures patent-protected key control and physical strength, meeting the highest standards for high-security cylinder performance.
  • ANSI A156.5 Grade 1 Certified: Confirms consistent quality and reliability for heavy-use commercial applications.
  • UL 437 Listed (M4 Platform): Medeco Key-in-Knob cylinders on the M4 platform are UL437 listed for drill and pick resistance, with utility patent-pending key control.
  • Broad Retrofit Capability: Medeco offers over 100 different cylinder designs and tailpiece configurations, supporting the most popular security hardware and minimizing the need for full lockset replacement.
  • Wide Finish Selection: Available in 14 finishes including Bright Brass, Satin Brass, Antique Brass, Satin Brass Blackened, Bright Bronze, Satin Bronze, Oil Rubbed Bronze, Bright Nickel, Satin Nickel, Antique Nickel, Black, Dark Bronze, Bright Chrome, and Satin Chrome.

Certifications & Compliance

  • ANSI A156.30 Level A — Patent-Protected Key Control and Physical Strength
  • ANSI A156.5 Grade 1 — Heavy-Use Commercial Quality
  • UL 437 Listed — Drill and Pick Resistance (M4 Platform)

Technical Specifications

  • Product Family: Key-in-Knob/Lever Cylinder
  • Pinning: 5-Pin
  • Compatible Hardware: Hockey Puck Style Padlock Sold Between 9/2004 and 9/2023 (KIK Style Cylinder)
  • Certification: UL 437 Listed; ANSI/BHMA A156.30 (M4); ANSI/BHMA A156.5 Grade 1 (M4)
  • Construction: Durable machined brass components
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Hockey Puck Padlock Cylinder Replacement (Padlocks Sold 9/2004–9/2023)
  • Commercial Storage Facilities and Warehouses
  • Industrial and Manufacturing Facility Access Points
  • Retail and Commercial Property Security
  • Government and Municipal Facilities
  • Educational Institution Secured Areas
  • High-Security Commercial Door Hardware Retrofits

Why Medeco?

Medeco's 2001600 cylinder is built from precision-machined brass components and certified to both ANSI A156.30 Level A and ANSI A156.5 Grade 1, delivering verified key control and physical strength for the most demanding commercial security requirements. With UL 437 listing on the M4 platform and compatibility across over 100 cylinder designs and tailpiece configurations, Medeco provides a retrofit solution that upgrades security without requiring full lockset replacement.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
2001600
Product Subgroup:
Cylinders
Product Type:
Cylinders
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Cylinder Classification:
5Pin
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 2001600T-26-DLT – Frequently Asked Questions

1) Can I get the 2001600 puck padlock cylinder keyed to my existing Medeco Biaxial system?
Yes. The 2001600 is offered in both Biaxial and M3 keyway technology, so if your facility is already on Medeco Biaxial you can keep the puck padlocks on the same key rather than carrying a second key. Order the matching technology, and take the Sub-Assembled version if your locksmith pins to your own bitting; take Pinned if you want it keyed as supplied.
2) What is the difference between the Pinned, Sub-Assembled, and Sub-Assembled No Slider options on a Medeco 2001600 cylinder?
Three build states. Pinned means the cylinder arrives keyed and ready to drop into the padlock. Sub-Assembled ships the cylinder without the pinning done, so a locksmith pins it to an existing key system in house. Sub-Assembled, No Slider leaves out the slider element as well, for a shop building the cylinder up to a specific Medeco key system on the bench. If you don't have a key machine and a pinning kit, order Pinned.
3) Does the Medeco 2001600 cylinder have a UL 437 or ANSI high security rating?
It carries three: UL 437 Listed for drill and pick resistance on the M4 platform, ANSI A156.30 Level A for patent-protected key control and physical strength, and ANSI A156.5 Grade 1 for heavy-use commercial quality. For an MRO or institutional spec that calls out a high security cylinder by standard, those are the three lines a submittal usually wants.
4) Is the Medeco 2001600 a rim or mortise cylinder? I need one for an exit device.
Neither. The 2001600 is a KIK (key-in-knob) style cylinder built for hockey puck padlock bodies, so it won't thread into a mortise lock case or mount behind a rim exit device. For a rim device, look at a rim cylinder like the Schlage 20-021 with a vertical tailpiece cam or the 20-022 with a horizontal cam. For a mortise lock, a mortise cylinder such as the Corbin Russwin 1000 Series 1-1/2 inch with an A02 straight cam is the right family.
5) What do I need to specify when ordering a Medeco 2001600 cylinder?
Four things. Technology and keyway (Biaxial or M3), pinning state (Pinned, Sub-Assembled, or Sub-Assembled No Slider), finish from the thirteen codes offered, and your keying instructions if you want it keyed alike or master keyed into an existing Medeco system. Get the technology wrong and the cylinder won't run on your existing keys, which is the mistake that costs a return.
6) What is the difference between the Medeco 2001600 and a Kaba Ilco 1599 key-in-knob replacement cylinder?
Both are replacement key-in-knob style cylinders, but they serve different security tiers and different hardware. The Medeco 2001600 is a 5-pin KIK cylinder built for hockey puck style padlocks sold between 9/2004 and 9/2023, with ANSI A156.30 Level A patent-protected key control, ANSI A156.5 Grade 1, and UL 437 listing for drill and pick resistance on the M4 platform. The Kaba Ilco 1599 is a key-in-knob replacement cylinder in the 1599 Series. A locksmith restoring a puck padlock to a restricted Medeco key system uses the 2001600; the 1599 is the choice when the job is a conventional knob cylinder swap without patented key control.
7) Which cylinder should I use if the opening is a mortise lock instead of a hockey puck padlock?
The Medeco 2001600 is a KIK style cylinder cut for hockey puck padlocks sold between 9/2004 and 9/2023 and will not serve a mortise case. For a mortise body, the Corbin Russwin 1000 Grade 1 mortise cylinder in 1-1/2 inch length with an A02 straight cam or the Corbin Russwin 1070 Grade 1 1-1/4 inch 6-pin mortise housing with an A01 cloverleaf cam are the mortise-prep answers, with cam style chosen to match the lock case. The Detex MC65 is a 1-1/8 inch 6-pin mortise cylinder in the Schlage C keyway if the facility is already keyed to Schlage C.
8) Can I upgrade a puck padlock's security without replacing the whole padlock?
That's what the 2001600 does. It swaps the cylinder in a hockey puck padlock sold between 9/2004 and 9/2023, so the padlock body, shackle-less design and mounting stay in place and only the key control changes. You get a UL 437 Listed, patent-protected Medeco cylinder in a lock you've already installed on gates, roll-up doors or trailer hasps.
9) How many pins does the Medeco 2001600 cylinder have, and does that affect keying it into my master key system?
Five pins. That's the chamber count your locksmith works with when bitting it, and it means the 2001600 has to sit in a 5-pin Medeco system on the matching technology (Biaxial or M3) to key alike or master key with your other cylinders. A 6-pin Medeco system won't take this cylinder into the same keyway depth arrangement.
10) If I want interchangeable cores so I can rekey in seconds instead of pulling cylinders, what should I use instead?
The 2001600 is a fixed KIK cylinder, so rekeying means pinning the cylinder itself. If fast field rekeying across a site matters more than the puck padlock format, an interchangeable core platform is the move: the BEST 1CB Peaks 150 Series interchangeable core, the BEST 1CDF drill resistant 7-pin brass 150 Series core, or a full size interchangeable core setup like the Schlage 20-057 FSIC rim cylinder with convertible tailpiece cam. Those pull with a control key. They are not puck padlock cylinders, so it's a hardware decision, not a straight swap.
11) Can I standardize all our puck padlocks across a facility on one key with the Medeco 2001600?
Yes, that's the common use for it. Order the same technology (Biaxial or M3) across every puck padlock cylinder and have them keyed alike or master keyed into your system. Because Medeco keys on these platforms are patent protected under ANSI A156.30 Level A, keys can't be duplicated at a hardware counter, which is the part that actually holds a facility standard together over time. For a 50-lock rollout, Sub-Assembled cylinders let your locksmith pin the whole batch to your existing bitting.
12) We key our whole facility on interchangeable cores. Does the Medeco 2001600 fit that program, or do we need something else?
The 2001600 is a pinned KIK cylinder, ordered in Biaxial or M3 technology and keyway and available pinned, sub-assembled, or sub-assembled with no slider, so it is rekeyed at the cylinder rather than swapped as a core. A facility standardized on interchangeable cores works differently: the BEST 1C Series standard 5-pin core and the BEST Peaks 1CB 150 Series interchangeable core cylinder pull and replace with a control key, and the BEST 1CDF is a drill resistant patented interchangeable core in 7-pin brass, 150 Series. On the Schlage side the 20-057 is a 6-pin full size interchangeable core rim cylinder with a convertible tailpiece cam. Institutional buyers running a control-key program usually keep the IC format across the site and use the 2001600 only where a puck padlock has to join the Medeco key system.
13) What is the difference between the Medeco 2001600 and an Adams Rite 4036 mortise cylinder for an aluminum storefront door?
The Adams Rite 4036 is a five-pin mortise cylinder, Grade 1, in the 4036 Series, with a 1/2 inch minimum door thickness, which is the profile for narrow stile aluminum storefront work. The Medeco 2001600 is a 5-pin KIK cylinder for hockey puck style padlocks sold between 9/2004 and 9/2023 and carries ANSI A156.5 Grade 1 along with ANSI A156.30 Level A key control and UL 437 listing on the M4 platform. A glass front installer prepping a storefront deadlock reaches for the 4036; the 2001600 handles the puck padlock on the gate or roll-up at the same site.
14) What finishes does the Medeco 2001600 puck padlock cylinder come in?
Thirteen finish codes, so you can match whatever else is on the opening: 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 611 Bright Bronze, 612 Satin Bronze, 613 Dark Bronze Oil-Rubbed, 618 Bright Nickel, 619 Satin Nickel, 20 Antique Nickel, 622 Flat Black, 624 Dark Bronze, 625 Bright Chrome and 626 Satin Chrome. On a puck padlock the cylinder face is the only visible part, so most fleet buyers standardize on 626 Satin Chrome or 605 Bright Brass and stay there.
15) Will a brass cylinder hold up on an outdoor padlock in a yard or on a gate?
The 2001600's components are precision-machined solid brass, which is why it's used on exterior puck padlocks at storage yards, warehouses and industrial access points. Brass doesn't rust the way a plated steel part does, so the cylinder face and plug stay workable through weather. It is rated commercial, not residential.
16) Is the Medeco 2001600 the right cylinder for a keyed deadbolt?
The 2001600 is a KIK style cylinder made for hockey puck style padlocks sold between 9/2004 and 9/2023, so a deadbolt is a different part. The Kaba Ilco 1549 Series is a key-in-deadbolt cylinder with a deadbolt product function, and the 1539 and 1579 Series are also listed with a deadbolt function for their respective knob and lever hardware. Confirm the deadbolt body before ordering so the tailpiece matches.
17) I need to match a Medeco cylinder finish to existing hardware. How does the 2001600 finish range compare to a cylinder sold in one finish?
The 2001600 is ordered in 13 finishes, including 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 611 Bright Bronze, 612 Satin Bronze, 613 Dark Bronze Oil-Rubbed, 618 Bright Nickel, 619 Satin Nickel, 20 Antique Nickel, 622 Flat Black, 624 Dark Bronze, 625 Bright Chrome, and 626 Satin Chrome. By contrast the Schlage 20-057-C full size interchangeable core cylinder is specified with a C keyway in 643E Aged Bronze. A property manager matching a run of doors or gates to one finish standard has a wide selection to pull from on the Medeco side.
18) Can I use a cylinder pull like the Adams Rite 4025 in place of the Medeco 2001600?
No, those solve different problems. The Adams Rite 4025 is a five pin tumbler cylinder pull with through-screws designed for use with the Adams Rite MS1847 deadlock or deadlatch, and the 4024 is the same pull with trim plate mounting for the MS1847; the 4026 is the five pin tumbler cylinder pull for the Adams Rite 5017 wood door deadlock or deadlatch. Each is a pull with an integral cylinder for a specific deadlock. The Medeco 2001600 is a standalone KIK replacement cylinder for hockey puck style padlocks sold between 9/2004 and 9/2023, with no pull or trim involved.
19) I need a cylinder that fills the hole but does not need to be keyed. Does the Medeco 2001600 come as a dummy?
The 2001600 is a functioning keyed cylinder, ordered pinned, sub-assembled, or sub-assembled with no slider in Biaxial or M3. When the opening only needs the cylinder profile present with no keying behind it, the BEST 12E Series dummy rim cylinder with a 1-5/32 inch diameter is the part built for that, on a rim prep rather than a KIK one.
