Medeco 2020049 6-Pin Key-in-Kn...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$176.00
$148.37

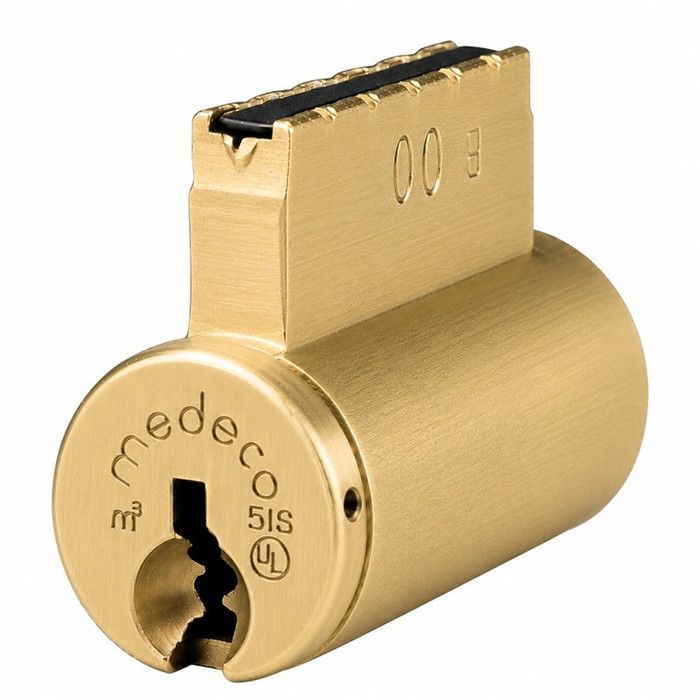

Medeco Medeco 2020049 - 6 Pin Cylinder for Arrow QL & MLX Series Levers, SL00 Knob Lock & LX01 Lever Lock, Dorma CL700 Series Cal-Royal, Falcon B Series, Schlage A AL D Series MED-2020049

Medeco 2020049 6-Pin Key-in-Knob/Lever Retrofit Cylinder for Arrow QL & MLX, Schlage A/AL/D, Falcon B Series and More

(No reviews yet) Write a Review

Model: 2020049T-26-DLT
$176.00
$148.37
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$176.00
$148.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 2020049 6-Pin Key-in-Knob/Lever Retrofit Cylinder for Arrow QL & MLX, Schlage A/AL/D, Falcon B Series and More

The Medeco 2020049 is a 6-pin Key-in-Knob/Lever retrofit cylinder engineered to replace cylinders in a wide range of popular cylindrical locksets, including Arrow QL & MLX Series Levers, SL00 Knob Lock & LX01 Lever Lock, Dorma CL700 Series, Cal-Royal, Falcon B Series, and Schlage A, AL, and D Series hardware. Constructed of durable machined brass components, this cylinder delivers the high-security key control and physical resistance that Medeco is known for. It carries ANSI A156.30 Level A certification for patent-protected key control and ANSI A156.5 Grade 1 certification for consistent quality in heavy-use commercial applications, and is UL437 listed for drill and pick resistance with utility patent-pending key control.

Key Features

  • 6-Pin Configuration: Six-pin cylinder design provides enhanced security and key control for commercial-grade cylindrical locksets and lever hardware.
  • Broad Retrofit Compatibility: Designed to retrofit knob-type cylindrical locksets, lever-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks across the most popular security hardware brands.
  • UL437 Listed: Listed for drill and pick resistance with utility patent-pending key control, providing a high level of physical security assurance.
  • ANSI A156.30 Level A Certified: Assures patent-protected key control and physical strength (M4, M3) for superior access management.
  • ANSI A156.5 Grade 1 Certified: Ensures consistent quality and performance for heavy-use commercial applications (M4/M4 BiLevel, M3).
  • Machined Brass Construction: Cylinders are constructed of durable machined brass components for long-lasting reliability in demanding environments.
  • Wide Finish Selection: Available in 14 finishes including Bright Brass (05), Satin Brass (06), Antique Brass (09), Satin Brass Blackened (10), Bright Bronze (11), Satin Bronze (12), Oil Rubbed Bronze (13), Bright Nickel (18), Satin Nickel (19), Antique Nickel (20), Black (22), Dark Bronze (24), Bright Chrome (25), and Satin Chrome (26).
  • Industry-Leading Retrofit Range: Medeco offers over 100 different cylinder designs and tailpiece configurations, enabling the largest retrofit capability in the industry and reducing the need for complete lockset replacements.

Certifications & Compliance

  • UL437 Listed — Drill and Pick Resistance with Utility Patent-Pending Key Control
  • ANSI A156.30 Level A — Patent-Protected Key Control and Physical Strength (M4, M3)
  • ANSI A156.5 Grade 1 — Heavy-Use Commercial Quality (M4/M4 BiLevel, M3)

Technical Specifications

  • Product Family: Key-in-Knob/Lever Cylinder
  • Pinning: 6-Pin
  • Compatible Hardware: Arrow QL & MLX Series Levers, SL00 Knob Lock & LX01 Lever Lock, Dorma CL700 Series Cal-Royal, Falcon B Series, Schlage A AL D Series
  • Certification: UL 437 Listed; ANSI/BHMA A156.30 (M4); ANSI/BHMA A156.5 Grade 1 (M4)
  • Construction: Durable machined brass components
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential and Mixed-Use Properties

Why Medeco?

Medeco cylinders are built from durable machined brass components and engineered to meet the most rigorous security standards, including UL437 listing for drill and pick resistance and ANSI A156.5 Grade 1 certification for heavy commercial use. With over 100 cylinder designs and tailpiece configurations available, Medeco delivers unmatched retrofit flexibility, allowing security upgrades without the cost of full lockset replacement.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
2020049
Product Subgroup:
Cylinders
Product Type:
Key-in-Knob/Lever Cylinder
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Cylinder Classification:
6Pin
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 2020049T-26-DLT – Frequently Asked Questions

1) Will the Medeco 2020049 cylinder fit a Schlage D Series lever lock?
Yes. The 2020049 is a key-in-knob/lever retrofit cylinder built to drop into Schlage A, AL and D Series cylindrical hardware, along with Arrow QL and MLX Series levers, the SL00 knob lock and LX01 lever lock, Dorma CL700 Series, Cal-Royal, and Falcon B Series. It swaps the cylinder only, so the lockset, chassis and door prep stay as they are.
2) Can I upgrade my building's existing knob and lever locks to Medeco keys without replacing the locksets?
That is exactly what the 2020049 does. It replaces the cylinder inside knob-type and lever-type cylindrical locksets, padlocks, and bored auxiliary deadlatches and deadlocks from the major hardware brands, so a facility can move to Medeco patented key control door by door without buying new locksets. Medeco publishes over 100 cylinder designs and tailpiece configurations to cover the range of host hardware.
3) What is the difference between the Biaxial and M3 versions of the Medeco 2020049 cylinder?
Biaxial and M3 are two different Medeco keyway technologies, and the 2020049 is sold in both. The choice is not about the door, it is about the key system you already run: order the technology that matches your existing Medeco master key system so the new cylinder keys into it. If you are starting a new system, pick one technology and stay on it across the facility.
4) Should I order the Medeco 2020049 pinned or sub-assembled?
Pinned means the cylinder arrives keyed and ready to install. Sub-assembled ships without final pinning so a locksmith with Medeco factory authorization can key it to an existing system on the bench. There is also a Sub-Assembled, No Slider option for shops that pin and set the slider themselves. If you do not do your own Medeco keying, order pinned.
5) Is the Medeco 2020049 cylinder drill and pick resistant?
UL 437 listed for drill and pick resistance, with utility patent pending key control. It also carries ANSI/BHMA A156.30 Level A for patent protected key control and physical strength, and ANSI/BHMA A156.5 Grade 1 for heavy use commercial openings. The body is machined brass.
6) Is a 6-pin cylinder needed, or will 5-pin work for a commercial master key system?
The 2020049 is a 6-pin cylinder. The sixth pin chamber gives more usable key changes and more room to build a master key system without collisions, which is why it is the configuration specified for commercial buildings running multiple levels of keying. For a single standalone opening the extra chamber matters less, but on a facility-wide system it is what keeps the master keying expandable.
7) Can I get Medeco retrofit cylinders in oil rubbed bronze to match existing lever trim?
Thirteen finishes are offered on the 2020049: 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 611 Bright Bronze, 612 Satin Bronze, 613 Dark Bronze Oil-Rubbed, 618 Bright Nickel, 619 Satin Nickel, 20 Antique Nickel, 622 Flat Black, 624 Dark Bronze, 625 Bright Chrome, and 626 Satin Chrome. Match the cylinder face to the BHMA number already on your lever trim and the swap will not read as a repair.
8) Is the Medeco 2020049 rated for a high traffic commercial door or is it a residential cylinder?
Commercial. The 2020049 carries ANSI A156.5 Grade 1, the heavy use commercial grade, and is built from machined brass. It is the cylinder specified for office buildings, schools, healthcare, retail, government facilities, warehouses and multi-tenant residential, not for light duty residential hardware.
9) Does replacing a lockset cylinder with the Medeco 2020049 affect the lock's function or handing?
No. The 2020049 changes the keying and key control only. The lockset's function, handing, backset and door prep are set by the chassis you are keeping, so a storeroom lock stays a storeroom lock after the swap. What you do need to confirm is the tailpiece: Medeco builds different tailpiece configurations for different host locksets, and the 2020049 covers the Arrow QL/MLX, Schlage A/AL/D, Falcon B, Dorma CL700 and Cal-Royal families.
