Medeco Medeco 2020068 - 6 Pin Cylinder for Falcon X Series MED-2020068

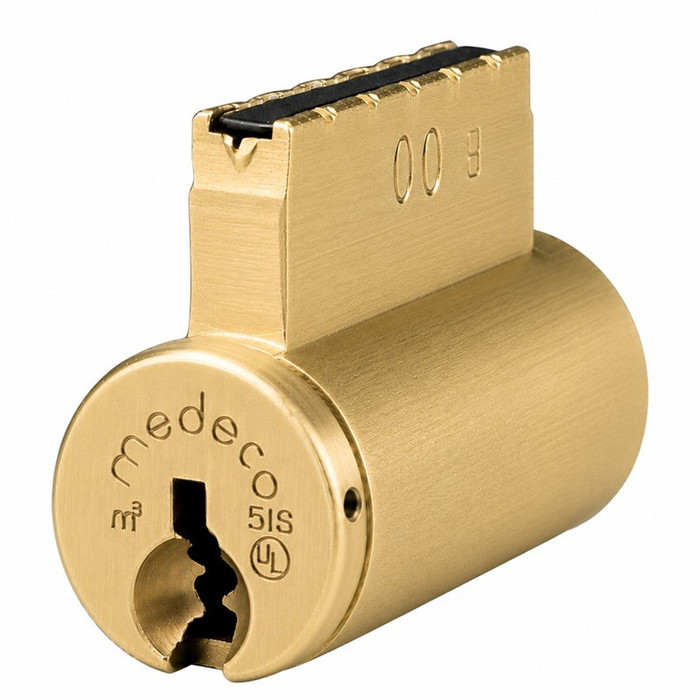

Medeco 2020068 6-Pin Key-in-Knob/Lever Cylinder for Falcon X Series

(No reviews yet) Write a Review

Model: 2020068T-26-DLT
$176.00
$148.37
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$176.00
$148.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 2020068 6-Pin Key-in-Knob/Lever Cylinder for Falcon X Series

The Medeco 2020068 is a 6-pin Key-in-Knob/Lever retrofit cylinder engineered to fit the Falcon X Series, offering a precision-machined brass construction designed to retrofit knob-type cylindrical locksets, lever-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks. Certified to ANSI A156.30 Level A for patent-protected key control and physical strength, and ANSI A156.5 Grade 1 for consistent quality in heavy-use commercial applications, this cylinder delivers the high-security performance Medeco is known for. With over 100 different cylinder designs and tailpiece configurations available, Medeco provides one of the largest retrofit capabilities in the industry, minimizing the need for complete lockset replacements.

Key Features

  • 6-Pin Cylinder Configuration: Features a 6-pin tumbler design for enhanced pick resistance and key control security in commercial-grade applications.
  • Retrofit Compatibility: Designed to retrofit knob-type cylindrical locksets, lever-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks for versatile installation options.
  • Falcon X Series Fit: Specifically configured for the Falcon X Series, enabling a direct drop-in upgrade without full lockset replacement.
  • Durable Machined Brass Construction: Cylinders are constructed of durable machined brass components for long-lasting performance in demanding commercial environments.
  • UL 437 Listed (M4): Medeco M4 Key-in-Knob cylinders are UL 437 listed for drill and pick resistance, providing a verified high-security standard.
  • Utility Patent-Pending Key Control: Features utility patent-pending key control technology to restrict unauthorized key duplication and enhance access management.
  • Broad Finish Selection: Available in 14 finishes including Bright Brass, Satin Brass, Antique Brass, Satin Brass Blackened, Bright Bronze, Satin Bronze, Oil Rubbed Bronze, Bright Nickel, Satin Nickel, Antique Nickel, Black, Dark Bronze, Bright Chrome, and Satin Chrome to match virtually any hardware aesthetic.
  • Industry-Leading Retrofit Range: Over 100 different cylinder designs and tailpiece configurations enable fewer complete lockset replacements, reducing installation costs.

Certifications & Compliance

  • ANSI A156.30 Level A — Patent-protected key control and physical strength (M4, M3)
  • ANSI A156.5 Grade 1 — Consistent quality for heavy-use applications (M4/M4 BiLevel, M3)
  • UL 437 Listed — Drill and pick resistance (M4 Key-in-Knob cylinders)

Technical Specifications

  • Product Family: Key-in-Knob/Lever Cylinder
  • Pinning: 6-Pin
  • Compatible Hardware: Falcon X Series
  • Certification: UL 437 Listed; ANSI/BHMA A156.30 (M4); ANSI/BHMA A156.5 Grade 1 (M4)
  • Construction: Durable machined brass components
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential and Mixed-Use Properties

Why Medeco?

Medeco cylinders are constructed of durable machined brass components and certified to ANSI A156.30 Level A and ANSI A156.5 Grade 1, ensuring both physical strength and consistent quality for heavy commercial use. The M4 platform's UL 437 listing for drill and pick resistance, combined with utility patent-pending key control, makes the Medeco 2020068 a trusted choice for security professionals seeking a high-security retrofit solution for Falcon X Series hardware.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
2020068
Product Subgroup:
Cylinders
Product Type:
Key-in-Knob/Lever Cylinder
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Cylinder Classification:
6Pin
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 2020068T-26-DLT – Frequently Asked Questions

1) Will the Medeco 2020068 cylinder fit a Falcon X Series lockset without replacing the whole lock?
Yes. The Medeco 2020068 is a key-in-knob/lever retrofit cylinder configured for Falcon X Series hardware, so it drops into the existing lockset as a cylinder swap rather than a full lock replacement. That is the point of the part: you keep the Falcon chassis and trim already on the door and upgrade only the keying and cylinder security.
2) Does this Medeco cylinder meet Grade 1 and UL 437 for a high-security spec?
It does. The 2020068 is certified to ANSI A156.5 Grade 1 for heavy-use commercial applications and to ANSI A156.30 Level A for patent-protected key control and physical strength. Medeco M4 key-in-knob cylinders are also UL 437 listed for drill and pick resistance. If your spec calls out a UL 437 listed high-security cylinder on Falcon X hardware, this is the part that answers it.
3) What is the difference between the Biaxial and M3 versions of the Medeco 2020068?
Technology and keyway is an ordering choice on the 2020068: you pick either Biaxial or M3. Which one you take is governed by the keyway your building is already keyed to. If a site runs a Medeco Biaxial system, order Biaxial so the new cylinder operates on existing keys and masterkeying; if the system is M3, order M3. Mixing platforms on one system means separate keys, so match what is already in service.
4) What does Pinned versus Sub-Assembled mean when ordering this Medeco cylinder?
Three pinning states are offered: Pinned, Sub - Assembled, and Sub - Assembled, No Slider. Pinned arrives keyed and ready to install. Sub - Assembled ships without final pinning for a locksmith or end user with a Medeco keying license to pin to their own system. Sub - Assembled, No Slider omits the slider as well, which matters to shops building cylinders in house. If you are not pinning it yourself, take Pinned.
5) Will switching to Medeco stop tenants from copying keys at the hardware store?
That is the main reason property managers move to this cylinder. The 2020068 carries utility patent-pending key control and is certified to ANSI A156.30 Level A, which is the patent-protected key control and physical strength level. Blanks are restricted, so keys are cut only through authorized channels rather than over the counter. Retrofitting the cylinders on a Falcon X Series building gets you that control without changing out the locksets.
6) What kinds of locks besides knobsets can the Medeco 2020068 retrofit into?
Beyond knob-type cylindrical locksets, the 2020068 retrofits lever-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks. Medeco publishes over 100 cylinder designs and tailpiece configurations across the line, which is why so many openings can be upgraded without buying new locksets.
7) Is the Medeco 2020068 a 6-pin cylinder?
Yes, it is a 6-pin tumbler cylinder. Six pins give more key differs and greater pick resistance than a 5-pin, and it matters for masterkeying depth on a large facility. If an existing Medeco system on the property is built around 6-pin, this keeps the new openings consistent with it.
8) Can I get this Medeco cylinder in a finish that matches the knobs and levers already on my doors?
Thirteen finishes are offered: 20 Antique Nickel, 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 611 Bright Bronze, 612 Satin Bronze, 613 Dark Bronze Oil-Rubbed, 618 Bright Nickel, 619 Satin Nickel, 622 Flat Black, 624 Dark Bronze, 625 Bright Chrome, and 626 Satin Chrome. For most commercial buildings the match is 626 Satin Chrome or 613 Oil-Rubbed Bronze, since only the cylinder face shows once installed.
9) Is the Medeco 2020068 cylinder suitable for a high-traffic commercial building?
It is built for commercial duty. The body uses machined brass components, and the Grade 1 rating under ANSI A156.5 covers heavy-use commercial applications, the kind of cycle load you see on office, school, healthcare, government, retail, and multi-tenant residential openings. It is not positioned as a residential cylinder.
