Medeco 2020073 6-Pin Key-in-Kn...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$176.00
$148.37

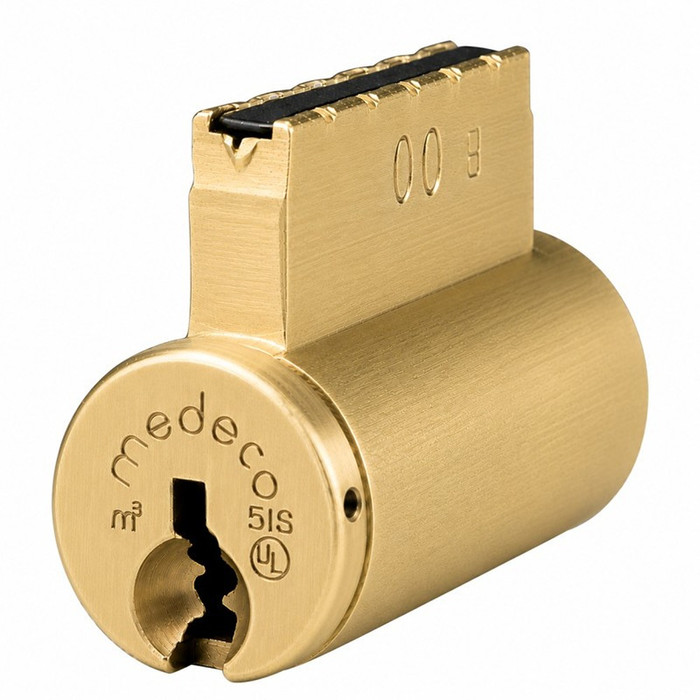

Medeco Medeco 2020073- 6 Pin Cylinder for Arrow MK Series, Falcon Inside Cylinder, LSDA 100 B Knob, Schlage ND & AL Series, Yale YMCL100, 200 MED-2020073

Medeco 2020073 6-Pin Key-in-Knob/Lever Retrofit Cylinder for Arrow MK, Falcon, LSDA, Schlage ND & AL, Yale YMCL Series

(No reviews yet) Write a Review

Model: 2020073T-26-DLT
$176.00
$148.37
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$176.00
$148.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 2020073 6-Pin Key-in-Knob/Lever Retrofit Cylinder for Arrow MK, Falcon, LSDA, Schlage ND & AL, and Yale YMCL Series

The Medeco 2020073 is a 6-pin Key-in-Knob/Lever retrofit cylinder engineered to replace cylinders in a wide range of popular commercial cylindrical locksets, including Arrow MK Series, Falcon inside cylinder, LSDA 100 B Knob, Schlage ND & AL Series, and Yale YMCL100 and 200 locksets. Constructed of durable machined brass components, this cylinder delivers the high-security key control and physical resistance that Medeco is known for, backed by ANSI A156.30 Level A and ANSI A156.5 Grade 1 certifications. Medeco M4 Key-in-Knob cylinders are UL437 listed for drill and pick resistance with utility patent-pending key control, making this an ideal upgrade for demanding commercial environments.

Key Features

  • 6-Pin Cylinder Configuration: Features a 6-pin tumbler design for enhanced security and key control in commercial cylindrical locksets.
  • Broad Retrofit Compatibility: Designed to retrofit Arrow MK Series, Falcon inside cylinder, LSDA 100 B Knob, Schlage ND & AL Series, and Yale YMCL100 and 200 locksets without requiring full lockset replacement.
  • UL437 Listed: Medeco M4 Key-in-Knob cylinders are UL437 listed for drill and pick resistance, providing verified high-security performance.
  • Patent-Pending Key Control: Utility patent-pending key control technology restricts unauthorized key duplication for enhanced access management.
  • Durable Machined Brass Construction: Cylinders are constructed of durable machined brass components for long-lasting performance in heavy-use commercial applications.
  • Wide Finish Selection: Available in 14 finishes including Bright Brass, Satin Brass, Antique Brass, Satin Brass Blackened, Bright Bronze, Satin Bronze, Oil Rubbed Bronze, Bright Nickel, Satin Nickel, Antique Nickel, Black, Dark Bronze, Bright Chrome, and Satin Chrome to match existing hardware.
  • Industry-Leading Retrofit Range: Medeco offers over 100 different cylinder designs and tailpiece configurations, enabling the largest retrofit capability in the industry and reducing the need for complete lockset replacement.

Certifications & Compliance

  • UL437 Listed — Drill and Pick Resistance (Medeco M4)
  • ANSI A156.30 Level A — Patent-Protected Key Control and Physical Strength (M4, M3)
  • ANSI A156.5 Grade 1 — Consistent Quality for Heavy-Use Applications (M4/M4 BiLevel, M3)

Technical Specifications

  • Product Family: Key-in-Knob/Lever Cylinder
  • Pinning: 6-Pin
  • Compatible Hardware: Arrow MK Series, Falcon Inside Cylinder, LSDA 100 B Knob, Schlage ND & AL Series, Yale YMCL100, 200
  • Certification: UL 437 Listed; ANSI/BHMA A156.30 (M4); ANSI/BHMA A156.5 Grade 1 (M4)
  • Construction: Durable machined brass components
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Medeco?

Medeco retrofit cylinders are built from durable machined brass components and engineered to meet the rigorous demands of commercial security applications. With UL437 listing for drill and pick resistance, ANSI A156.30 Level A key control certification, and ANSI A156.5 Grade 1 quality assurance, the Medeco 2020073 delivers professional-grade security performance across a broad range of compatible lockset platforms — all without requiring a full lockset replacement.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
2020073
Product Subgroup:
Cylinders
Product Type:
Key-in-Knob/Lever Cylinder
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Cylinder Classification:
6Pin
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 2020073T-26-DLT – Frequently Asked Questions

1) Will the Medeco 2020073 cylinder fit my Schlage ND or AL Series lever locks?
Yes. The 2020073 is a key-in-knob/lever retrofit cylinder built to drop into Schlage ND and AL Series cylindrical locksets, along with Arrow MK Series, the Falcon inside cylinder, LSDA 100 B Knob, and Yale YMCL100 and 200. You swap the cylinder only, the lockset stays in the door, so there is no new prep and no chassis change.
2) Can I put Medeco high security keys on my existing knob and lever locks without replacing the locksets?
That is exactly what the 2020073 does. It is a 6-pin Medeco cylinder that replaces the factory key-in-knob/lever cylinder in Arrow MK, Falcon, LSDA 100 B Knob, Schlage ND and AL, and Yale YMCL100/200 locksets. The existing chassis, latch, strike and trim all stay. For a property manager or facility with a mix of those brands already hanging, it means one Medeco key system across the building without pulling hardware off the doors.
3) Do I order the Medeco 2020073 in Biaxial or M3?
Both keyway technologies are offered, and the deciding factor is what key system you already run. If your facility is keyed in Medeco Biaxial, order Biaxial so the new cylinder keys into the existing system. If you are on M3, order M3. Starting fresh, M3 is the newer platform and is the one the UL437 and ANSI A156.30 Level A certifications are stated for on the Medeco M-series cylinders. Mixing the two on one master key system is not something you want to do by accident, so match what your keying record says.
4) Is the Medeco 2020073 cylinder UL437 listed and ANSI Grade 1?
Yes on both counts. Medeco M4 key-in-knob cylinders are UL437 listed for drill and pick resistance, and the 2020073 carries ANSI/BHMA A156.30 Level A for patent-protected key control and physical strength plus ANSI/BHMA A156.5 Grade 1 for heavy-use quality. That combination is what a school district, hospital, or government facility spec usually calls out when it asks for a high security cylinder rather than just a keyed lock.
5) Does the Medeco 2020073 stop tenants from copying keys at the hardware store?
That is the main reason to buy it. The 2020073 uses Medeco utility patent-pending key control, so blanks are restricted and a hardware store or kiosk cannot cut a copy. It is certified to ANSI A156.30 Level A, the level that covers patent-protected key control. For multi-tenant residential and commercial office buildings, that removes the unauthorized duplicate problem without rekeying the whole building to a new lockset line.
6) I have a mix of Schlage, Yale and Arrow knobs in my building. Can one Medeco key system cover all of them?
Across those specific lines, yes, through this one part. The 2020073 retrofits Arrow MK Series, the Falcon inside cylinder, LSDA 100 B Knob, Schlage ND and AL Series, and Yale YMCL100 and 200, so all of those openings can take the same Medeco keyway and sit under the same master. Medeco builds over 100 cylinder designs and tailpiece configurations, so openings outside that list, mortise or rim for example, are usually covered by a different Medeco cylinder rather than a lockset swap.
7) What is the difference between Pinned, Sub-Assembled, and Sub-Assembled No Slider on a Medeco cylinder order?
Three build states. Pinned ships keyed and ready to install, which is what you want if you are not a locksmith and are not cutting keys yourself. Sub-Assembled ships without the pinning done, for a locksmith or dealer combinating it into an existing master key system in the shop. Sub-Assembled, No Slider is the same unpinned build with the slider left out, for shops setting up the Biaxial or M3 sidebar components themselves. If you do not have a Medeco keying setup and key blanks on hand, order Pinned.
8) Can I match the Medeco retrofit cylinder to the oil-rubbed bronze levers already on my doors?
Yes. The 2020073 comes in 13 finish options: 20 Antique Nickel, 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 611 Bright Bronze, 612 Satin Bronze, 613 Dark Bronze Oil-Rubbed, 618 Bright Nickel, 619 Satin Nickel, 622 Flat Black, 624 Dark Bronze, 625 Bright Chrome, and 626 Satin Chrome. For oil-rubbed bronze trim, 613 is the match. Most commercial openings running satin chrome levers take 626.
9) Will the Medeco 2020073 work in a Schlage B-series deadbolt or a mortise lock?
No. The 2020073 is a key-in-knob/lever cylinder, which is the cylinder that sits in the knob or lever of a cylindrical lockset. Deadbolts, mortise locks, and rim exit devices use different cylinder formats and a different tailpiece or cam. Medeco makes cylinders for those applications, but you need the one built for that format, not this one.
10) Is a 6-pin Medeco cylinder enough for a large master key system?
Six pins is the deeper of the two common cylindrical configurations and gives you more usable change key combinations under a master, which matters when you are keying a whole campus or a multi-building portfolio rather than a handful of doors. The 2020073 is a 6-pin build. Combined with the Biaxial or M3 sidebar, the practical capacity is considerably larger than a standard 5-pin conventional cylinder of the same size.
11) Is this Medeco cylinder rated for commercial traffic or is it a residential part?
Commercial. The 2020073 is built from machined brass components and certified to ANSI A156.5 Grade 1, the heavy-use grade, which is what puts it in schools, hospitals, warehouses, retail, and government buildings rather than houses. A residential-grade cylinder would not carry Grade 1 or the UL437 drill and pick listing.
