Medeco 2080147 6-Pin Key-in-Kn...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$177.00
$151.59

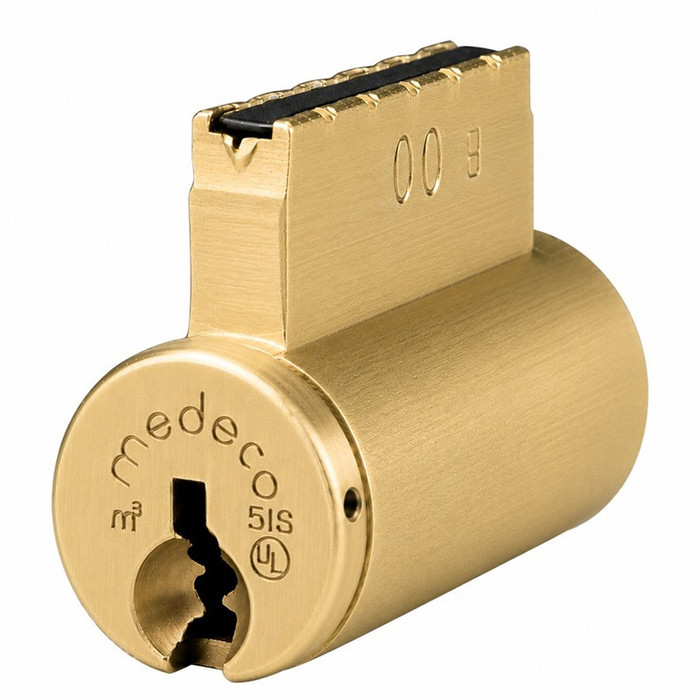

Medeco Medeco 2080147 - 6 Pin Cylinder for Sargent 6 7 10 line 6500 Series MED-2080147

Medeco 2080147 6-Pin Key-in-Knob/Lever Cylinder for Sargent 6, 7, 10 Line & 6500 Series

(No reviews yet) Write a Review

Model: 2080147T-26-DLT
$177.00
$151.59
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$177.00
$151.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 2080147 6-Pin Key-in-Knob/Lever Cylinder for Sargent 6, 7, 10 Line & 6500 Series

The Medeco 2080147 is a 6-pin Key-in-Knob/Lever retrofit cylinder engineered to fit Sargent 6, 7, 10 Line, and 6500 Series locksets. Designed to retrofit knob-type cylindrical locksets, lever-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks, this cylinder delivers Medeco's renowned high-security key control in a drop-in replacement format. Constructed of durable machined brass components, it meets ANSI A156.30 Level A and ANSI A156.5 Grade 1 certifications, ensuring patent-protected key control and consistent quality for heavy-use commercial applications.

Key Features

  • 6-Pin Cylinder Configuration: Features a 6-pin tumbler design for enhanced pick resistance and key control security in commercial-grade applications.
  • Retrofit Compatibility: Designed to retrofit knob-type cylindrical locksets, lever-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks — including Sargent 6, 7, 10 Line, and 6500 Series.
  • Machined Brass Construction: Cylinders are constructed of durable machined brass components for long-lasting performance in demanding commercial environments.
  • UL437 Listed (M4): Medeco M4 Key-in-Knob cylinders are UL437 listed for drill and pick resistance, providing a verified high-security standard.
  • Patent-Protected Key Control: Utility patent-pending key control technology restricts unauthorized key duplication, supporting access management integrity.
  • Broad Retrofit Range: Medeco offers over 100 different cylinder designs and tailpiece configurations, enabling the largest retrofit capability in the industry and reducing the need for complete lockset replacement.
  • Multiple Finish Options: Available in 14 finishes including Bright Brass (05), Satin Brass (06), Antique Brass (09), Satin Brass Blackened (10), Bright Bronze (11), Satin Bronze (12), Oil Rubbed Bronze (13), Bright Nickel (18), Satin Nickel (19), Antique Nickel (20), Black (22), Dark Bronze (24), Bright Chrome (25), and Satin Chrome (26).

Certifications & Compliance

  • ANSI A156.30 Level A — Patent-protected key control and physical strength (M4, M3)
  • ANSI A156.5 Grade 1 — Consistent quality for heavy-use applications (M4/M4 BiLevel, M3)
  • UL437 Listed — Drill and pick resistance (M4)

Technical Specifications

  • Product Family: Key-in-Knob/Lever Cylinder
  • Pinning: 6-Pin
  • Compatible Hardware: Sargent 6 7 10 line 6500 Series
  • Certification: UL 437 Listed; ANSI/BHMA A156.30 (M4); ANSI/BHMA A156.5 Grade 1 (M4)
  • Construction: Durable machined brass components
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties

Why Medeco?

Medeco cylinders are built from durable machined brass components and engineered to meet rigorous ANSI A156.30 Level A and ANSI A156.5 Grade 1 standards, delivering patent-protected key control and physical strength validated for heavy commercial use. With UL437 listing for drill and pick resistance and over 100 tailpiece configurations available, the Medeco 2080147 provides a high-security, cost-effective retrofit solution for Sargent locksets without requiring full hardware replacement.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
2080147
Product Subgroup:
Cylinders
Product Type:
Key-in-Knob/Lever Cylinder
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Cylinder Classification:
6Pin
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 2080147T-26-DLT – Frequently Asked Questions

1) Will the Medeco 2080147 cylinder fit a Sargent 6500 Series lockset?
Yes. The Medeco 2080147 is a 6-pin key-in-knob/lever retrofit cylinder built specifically for Sargent 6, 7, and 10 Line locksets and the 6500 Series. It drops into the existing lockset, so you upgrade key control without replacing the lock chassis.
2) Do I order Medeco Biaxial or M3 for the 2080147?
Both keyway technologies are offered on the 2080147. Order to match the keyway family already in your building, because Biaxial and M3 keys are not interchangeable. If you are starting a new keying system rather than extending one, pick one platform and standardize the facility on it.
3) What is the difference between the Pinned and Sub-Assembled options on this Medeco cylinder?
Pinned ships keyed and ready to install. Sub-Assembled ships for a locksmith or end user with Medeco pinning authorization to key on site to an existing system, and there is also a Sub-Assembled, No Slider option for shops that set the slider themselves. If you are not set up to pin Medeco, order Pinned.
4) Is the Medeco 2080147 rated for high-security openings in a school or hospital?
It carries ANSI/BHMA A156.30 Level A for patent-protected key control and physical strength, ANSI/BHMA A156.5 Grade 1 for heavy-use quality, and the M4 key-in-knob cylinders are UL437 listed for drill and pick resistance. Those are the three line items most institutional specs ask for on a high-security cylinder.
5) Can I rekey my Sargent locks to Medeco without buying new locksets?
That is exactly what the 2080147 is for. It replaces the factory cylinder in Sargent 6, 7, 10 Line and 6500 Series locksets, so the chassis, trim, and door prep stay as they are. For a property manager standardizing a building, it is the cheaper path than swapping complete hardware on every opening.
6) Can I use this Medeco cylinder on a padlock or a bored deadlatch, not just a knob lock?
It retrofits knob-type cylindrical locksets, lever-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks. The tailpiece is what decides the application, and Medeco publishes over 100 cylinder and tailpiece configurations across the line.
7) What finishes does the Medeco 2080147 come in, and can I match the trim already on my doors?
Thirteen finish codes are orderable: 605 bright brass, 606 satin brass, 609 antique brass, 611 bright bronze, 612 satin bronze, 613 dark bronze oil-rubbed, 618 bright nickel, 619 satin nickel, 20 antique nickel, 622 flat black, 624 dark bronze, 625 bright chrome, and 626 satin chrome. Match the BHMA number stamped on your existing trim, 626 satin chrome being the usual commercial standard.
8) Does a 6-pin cylinder give me better key control than a standard 5-pin?
The 2080147 uses a 6-pin tumbler configuration, which adds a chamber over a conventional 5-pin and, combined with Medeco's patent-protected keyway, restricts unauthorized key duplication. That patent protection is what stops keys being cut at a hardware store, which matters more on a master-keyed building than the pin count alone.
9) Is the Medeco 2080147 a commercial-duty cylinder or residential?
Commercial. It is built from machined brass components and certified to ANSI A156.5 Grade 1, the heavy-use tier, which is what you want in office buildings, schools, healthcare, government facilities, and multi-tenant residential where the same cylinder gets keyed dozens of times a day.
