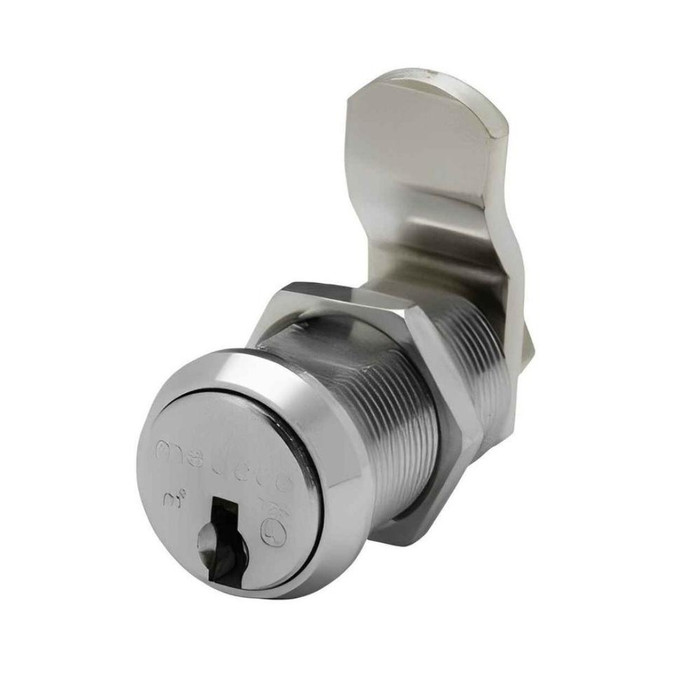

Medeco Medeco All-In-One 5 Pin Cam Lock Kit, Satin Chrome 600350T

Medeco 600350T 5-Pin Cam Lock Kit in Satin Chrome (26D) with Multiple Cam Configurations, Pack of 6

(No reviews yet) Write a Review

Model: 600350T-KIT-26-60P
$646.21

In Stock (leaves warehouse same day if ordered before 3pm ET)

$646.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 600350T 5-Pin Cam Lock Kit in Satin Chrome (26D) with Multiple Cam Configurations, Pack of 6

The Medeco 600350T All-In-One 5-Pin Cam Lock Kit is a premium high-security cam lock solution engineered for top-tier physical security and key control across a wide range of locking applications. Built with a solid machined brass body and hardened steel internal components, this UL 437 Listed medeco cylinder lock provides superior protection against drilling, picking, and unauthorized key duplication. The 3/4" diameter cam lock is available in lengths from 7/16" to 2" and supports clockwise or counterclockwise rotation at 90° or 180°, making it highly adaptable for diverse OEM and commercial installations. Finished in 26D Satin Chrome and compatible with existing Medeco3 60 and 10 series keying systems, this kit ships in a pack of 6 for high-volume deployments in banking, utilities, telecom, and transit environments.

Key Features

  • Standard 3/4" Diameter Cam Lock: Industry-standard 3/4" diameter with available lengths from 7/16" to 2" to accommodate a wide variety of panel thicknesses and installation requirements.
  • Flexible Rotation Options: Supports clockwise or counterclockwise rotation at 90° or 180° via included CP-040451 90° Stop Washer and CP-040461 180° Stop Washer for precise cam positioning.
  • Comprehensive Kit Components: Each kit includes a Medeco 5-Pin High-Security Cam Lock, CP-040500 Pronged Washer, CT-A05 & CT-D05 Flat Cams, CT-J01 & CT-H07 Offset Cams, CP-040451 90° Stop Washer, CP-040461 180° Stop Washer, CP-05006 3/4"-27 Mounting Nut, and 2 Medeco3 Keys.
  • UL 437 Listed High-Security Construction: Virtually pick-proof triple-locking cam lock design built with a machined brass body and hardened steel internal components for maximum resistance to physical attack.
  • Controlled Key Duplication: Medeco3 keys can only be duplicated by Medeco or an authorized Medeco service outlet, and only at your request, ensuring strict key control and access management.
  • Versatile Keying Options: Can be keyed alike, keyed different, or master keyed; compatible with existing Medeco3 60 and 10 series systems for seamless integration into established key control programs.
  • Multiple Pin and Configuration Options: Available in three, four, or five-pin models with multiple key pull and key-retaining options, plus removable core format and custom finishes available upon request.
  • Patent, Trademark, and Copyright Protected: Protected under patent, trademark, and copyright laws, reinforcing the integrity of the Medeco security platform against counterfeiting and unauthorized reproduction.

Certifications & Compliance

  • UL 437 Listed for Physical Security
  • Commercial Grade Application
  • Patent, Trademark, and Copyright Protected

Technical Specifications

  • Product Type: Medeco High Security Cam Lock
  • Diameter: 3/4"
  • Pinning: 4 or 5-pin depending on size
  • Certification: UL 437 Listed
  • Construction: Durable machined brass components with hardened stainless-steel inserts
  • Keying: Keyed alike, keyed different, or master keyed
  • Finish: Satin Chrome
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Banking and ATM Terminals
  • Transit and Fare Collection Systems
  • Alarm and Communication Equipment Enclosures
  • Access Control and Data Encryption Panels
  • Safes, Cabinets, Lockers, and Furniture
  • Vending Machines and Payphone Installations
  • OEM and Custom Hardware Projects

Why Medeco?

Medeco cam lock products deliver professional-grade security through solid machined brass construction with hardened steel internal components and a virtually pick-proof triple-locking design that meets the rigorous UL 437 standard. The Medeco3 key control system ensures that key duplication is strictly controlled, making this kit an ideal choice for OEMs, security integrators, and facilities requiring verifiable access management across banking, telecom, transit, and other high-security commercial environments.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Cylinders
Product Type:
Cam Lock Kits
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Tags:
medeco camlock, medeco cylinder lock, medeco 5 pin cam lock, ul 437 camlock, high security cam lock, medeco cam lock kit
Product Finish:
26 - Satin Chrome
Pin Cylinder:
5-Pin
Product Category:
Parts and Accessories
Product Substrate:
Solid brass
Department:
Door Hardware
Package Quantity:
6

Medeco 600350T-KIT-26-60P – Frequently Asked Questions

1) How do I pick the right length Medeco 600350T cam lock for my panel or cabinet door?
Length is the one dimension you have to get right, and the 600350T cam lock is built in four of them: 5/8, 7/8, 1-1/8 and 1-1/2 inches. Body diameter stays 3/4 inch across all four, so only the length changes with the thickness of the panel, drawer front, or enclosure door the lock passes through. Measure the material at the cutout before you order, because a barrel that is too short will not let the mounting nut and cam seat behind the panel.
2) Will a Medeco 600350T cam lock go into the existing 3/4 inch cam lock hole in my enclosure?
Yes. The 600350T uses the industry standard 3/4 inch diameter body and secures with the included CP-05006 3/4 inch-27 mounting nut, so it mounts in a standard 3/4 inch cam lock cutout. The kit also includes the CP-040500 pronged washer, which is what keeps the lock body from rotating in the panel; the prong seats into a small notch at the edge of the cutout, so check whether the existing prep already has that notch or whether you need to add it.
3) Do I have to order a cam separately with the Medeco 600350T cam lock kit?
No, the cams come in the box. Each 600350T kit ships with four cams: CT-A05 and CT-D05 flat cams plus CT-J01 and CT-H07 offset cams, so you can match the reach and offset your enclosure needs without a second order. Also in the kit are the CP-040500 pronged washer, the CP-040451 90 degree stop washer, the CP-040461 180 degree stop washer, the CP-05006 3/4 inch-27 mounting nut, and two Medeco3 keys. The only thing you specify separately is the keying.
4) Can a Medeco 600350T cam lock be set up to turn only 90 degrees, and can it turn counterclockwise?
Both are set in the field with parts already in the kit. The 600350T supports clockwise or counterclockwise rotation at either 90 or 180 degrees, using the CP-040451 90 degree stop washer or the CP-040461 180 degree stop washer to limit the turn. That matters when the cam has to clear a return flange or a door lip in one direction only, so decide the swing before you assemble and fit the matching stop washer.
5) Can Medeco 600350T cam locks be keyed into the Medeco system we already run in our facility?
Yes, if your existing system is Medeco3. The 600350T is a 5-pin cylinder that works with existing Medeco3 60 and 10 series keying systems, and it can be ordered keyed alike, keyed different, or master keyed. That lets a cabinet, ATM panel, or equipment enclosure fall under the same master key an integrator already carries for the building rather than becoming a separate key on the ring. Give your keying detail at the time of order, including the keyway platform your system runs on.
6) What is the difference between the Standard, M3, and Biaxial options on a Medeco 5-pin cam lock?
Those are the three key platforms the 600350T cam lock is built on, and the choice is not cosmetic. A cylinder only accepts keys cut on its own platform, so the one you order has to match whatever the rest of your Medeco keys are already cut to. Adding a Biaxial cam lock to a facility running M3 gives you a lock that works but takes a separate key, which defeats the point of standardizing. Pull an existing key or your keying record and order to that; if you are starting fresh, pick one platform and hold every future order to it.
7) Should I order the Medeco cam lock pinned or sub-assembled?
Order Pinned if you want the cam lock to arrive with the pinning done to your keying instruction and ready to install. Order Sub-Assembled if a Medeco authorized dealer or your own in-house locksmith is going to pin the cylinder to your system, which is the usual route for a security integrator holding a key control program and combinating on site. Both are offered on all four lengths of the 600350T, from 5/8 up to 1-1/2 inches.
8) Can keys for a Medeco 600350T cam lock be copied at a hardware store?
No, and that is the point of buying it. Medeco3 keys are duplicated only by Medeco or an authorized Medeco service outlet, and only at your request, so a tenant, contractor, or route driver cannot walk a key into a kiosk and come back with a copy. For banking, transit fare collection, and telecom enclosures that is usually the deciding factor over a standard cam lock. Plan for it operationally: additional keys come through the authorized channel, not off a shelf.
9) Is the Medeco 600350T cam lock rated for a high security application, and what stops it being drilled or picked?
UL 437 Listed for physical security, which is the standard a specifier looks for on an attack resistant cylinder. Construction behind that listing is a solid machined brass body with hardened steel internal components and a triple-locking cam design, and it is classified for commercial use. If your facility spec calls out a UL 437 cylinder for cash handling, data, or communications equipment, this cam lock answers it directly.
10) How many Medeco cam locks come in a 600350T kit, and can they all take the same key?
Six per pack, each a complete kit with its own cams, washers, mounting nut, and two Medeco3 keys. Order them keyed alike and all six open on one key, which is what you want when a technician is servicing a run of identical enclosures or a bank of cabinets and should not be carrying six keys. Order keyed different when each opening needs to be separate, or master keyed when a supervisor key has to cover the group while each lock keeps its own change key.
11) Can I use a Medeco 600350T cam lock on an entry door?
No. This is a cam lock, meaning it turns a flat or offset cam behind a panel to catch a lip or strike, and it mounts through a 3/4 inch hole in sheet metal or a cabinet face. It belongs on ATM and banking terminals, transit fare equipment, alarm and communication enclosures, access control and data panels, safes, lockers, cabinets, furniture, and vending equipment. A swinging door with a latch or deadbolt needs a bored or mortise lock instead, and a Medeco3 cylinder can be specified in those formats so the door still keys into the same system.
12) What finish are Medeco 600350T cam locks supplied in, and will they match satin chrome hardware already on my cabinets?
Satin chrome, 26D, on every length and every key platform of the 600350T, so a mixed order of 5/8 through 1-1/2 inch locks still comes out looking the same across a run of enclosures. 26D is the common commercial satin finish, so it sits alongside existing satin chrome cabinet and equipment hardware without standing out.
